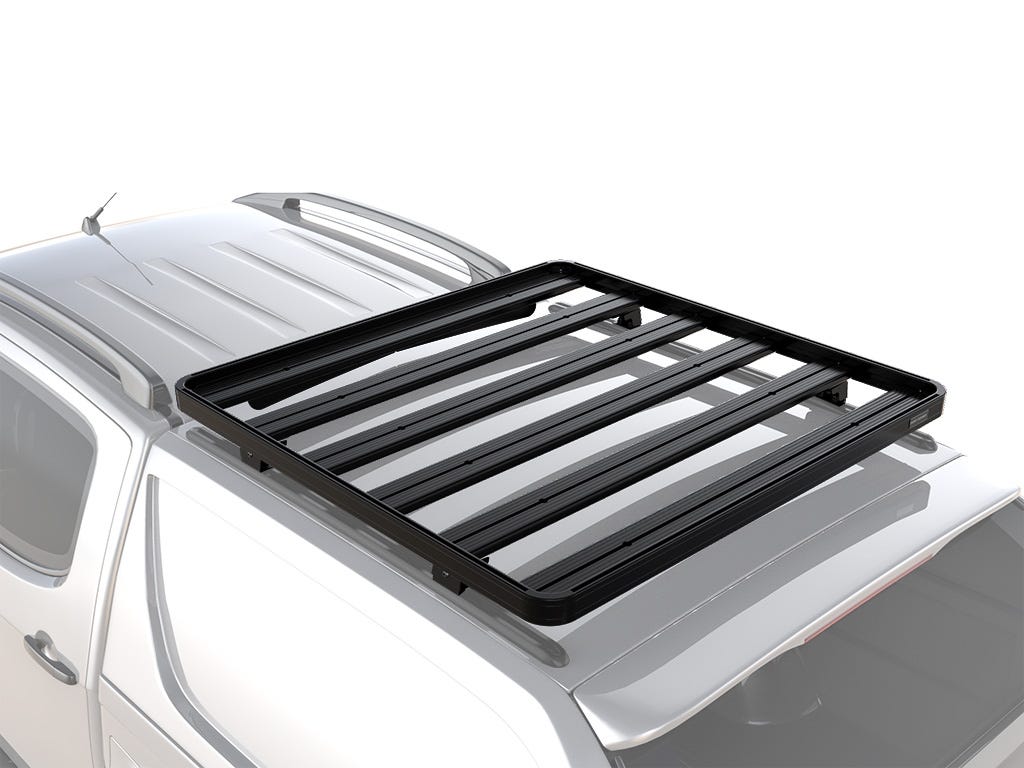

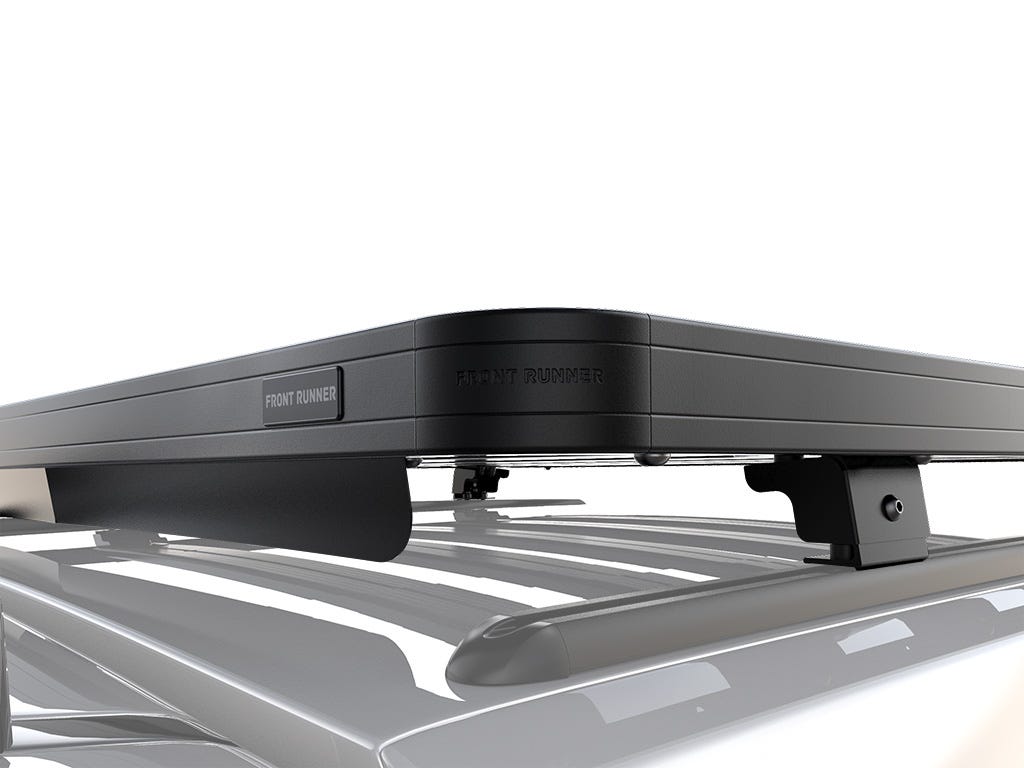

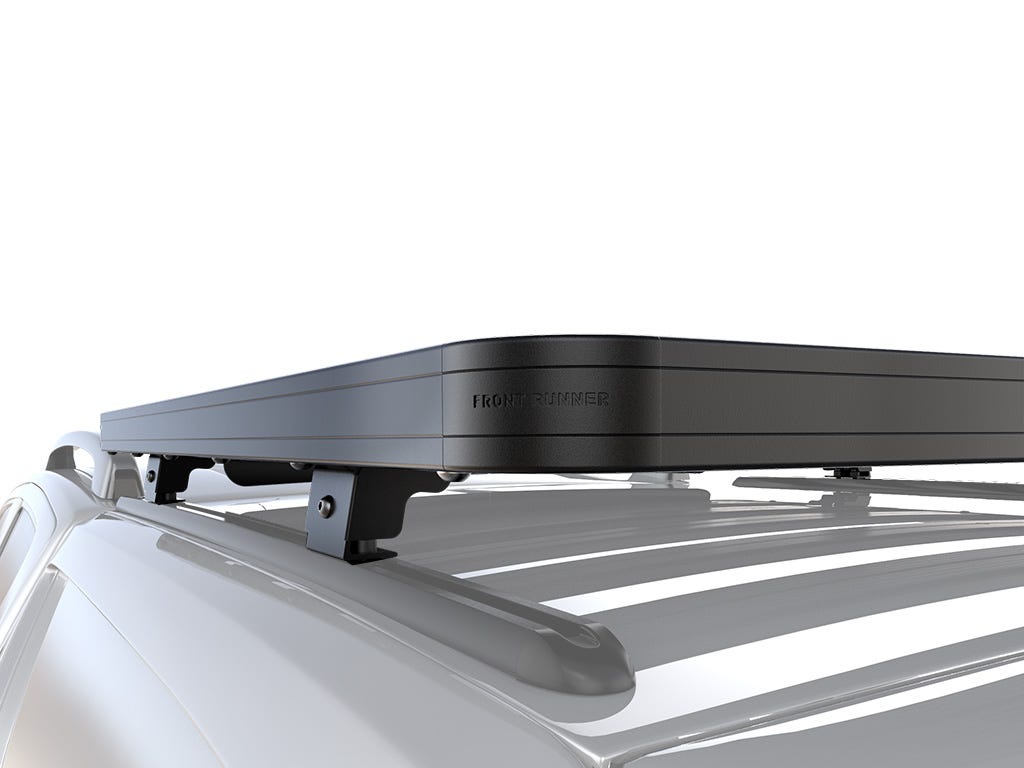

Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / Tall / 1475mm(W) X 1156mm(L)

Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / Tall / 1475mm(W) X 1156mm(L)

Regular price $1,022.00
Sale price $1,022.00 Regular price

10 in stock

Expected delivery date:
19 Oct Usually ready in 2-3 days.

Note: Free Shipping on Orders Over $100

Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / Tall / 1475mm(W) X 1156mm(L)

  • Depth (mm): 160
  • Length (mm): 440
  • Width (mm): 1730
  • Depth (in): 6.3
  • Length (in): 17.3
  • Width (in): 68.1
  • Weight (kg): 24.4
  • Weight (lb): 53.8
  • Narration: This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1475mm/58.1'' (W) x 1156mm/45.5'' (L). The Slimline II Tray and four (4) supplied Feet mount onto the OEM/Factory installed track of your canopy/shell or trailer.This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack.NOTE: Additional fasteners may be required to fit OEM/Factory supplied tracks.
  • Specification: KRCAT65TN - Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / Tall / 1475mm(W) X 1156mm(L) - by Front Runner
    Consisting of:
    2 x FASS025 - Foot Set / 70mm-80mm - by Front Runner1 x RRSTM06 - Slimline II Tray - 1475mm(W) x 1156mm(L) - by Front Runner

    Material used:
    Black epoxy powder-coated T6 aluminiumHigh strength steel
    Approximate Installed Weight 21kg (46lbs)

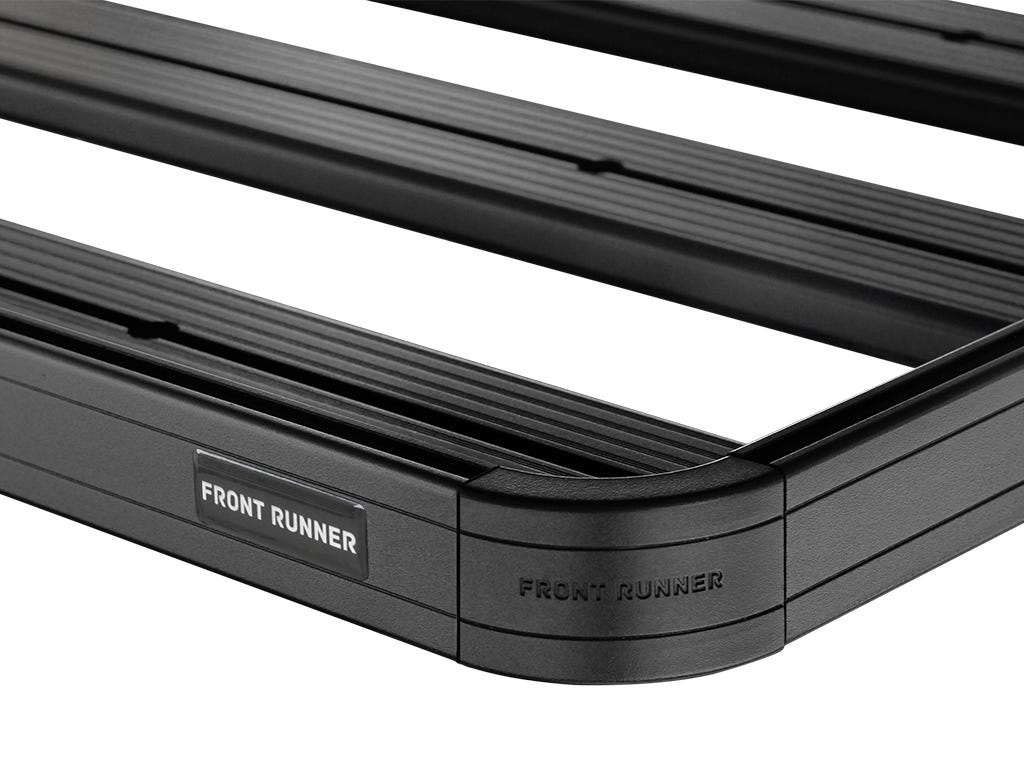

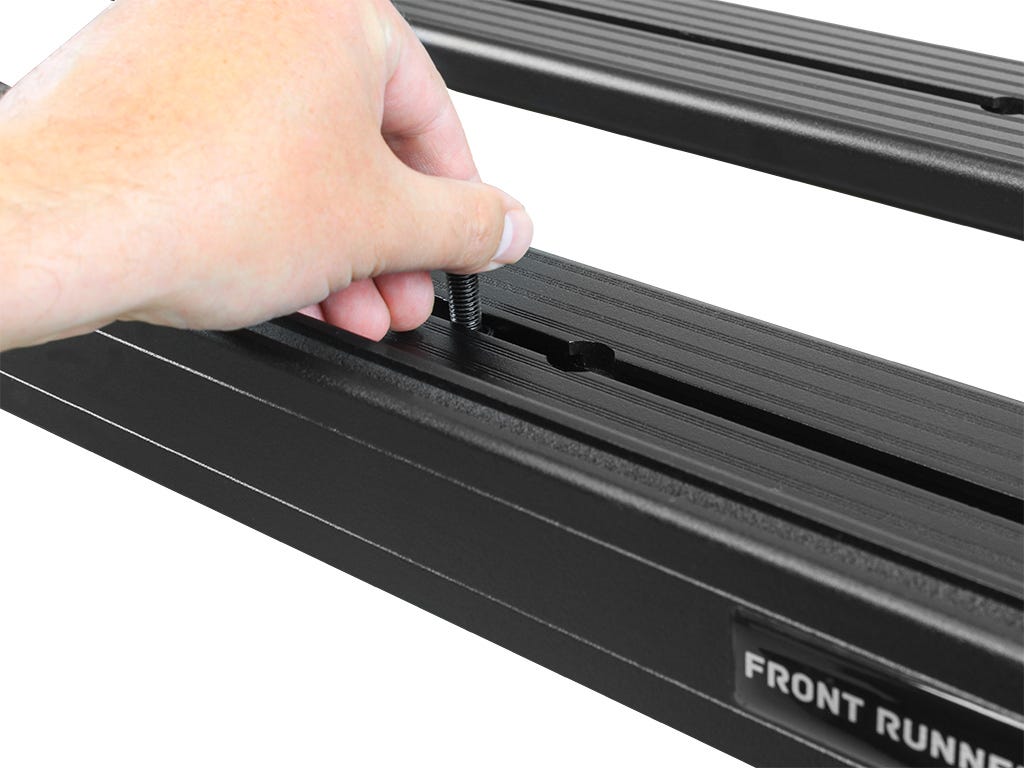

    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

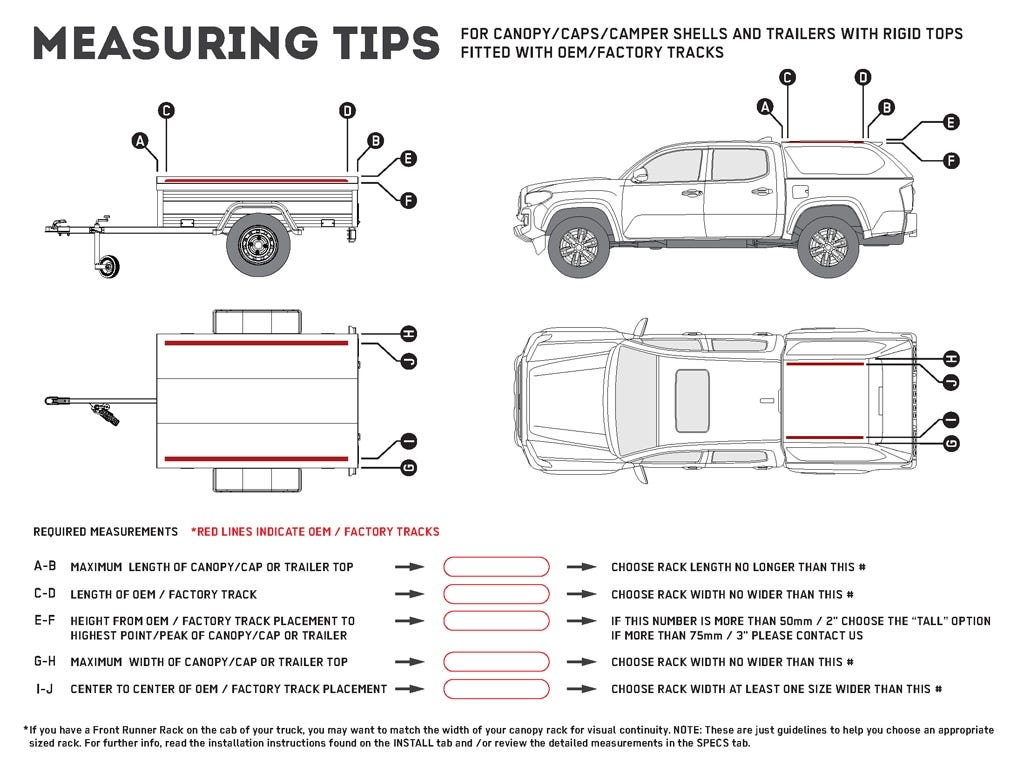

    To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

    Shipping Dimensions:
    Width 1475mm (58'')Length 1156mm (46'')Height 70mm (3'')

    Shipping Weight:
    Weight 24.1kg (53.1lbs)

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1475mm/58.1'' (W) x 1156mm/45.5'' (L). The Slimline II Tray and four (4) supplied Feet mount onto the OEM/Factory installed track of your canopy/shell or trailer.This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack.NOTE: Additional fasteners may be required to fit OEM/Factory supplied tracks.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.In order for Front Runner Feet and supplied hardware to work with your OEM/Factory supplied canopy track, the track must have:
Slot base width min 20mm / max 25mm
Slot base height min 6.5mm / max 10mm
Slot opening width min 8.5mm / max 10.5mm
Slot opening height min 2mm / max 5mm
**Please check with canopy manufacturer regarding the load ratings for your specific canopy and track.All Front Runner Racks are backed by a Limited Lifetime Warranty*
