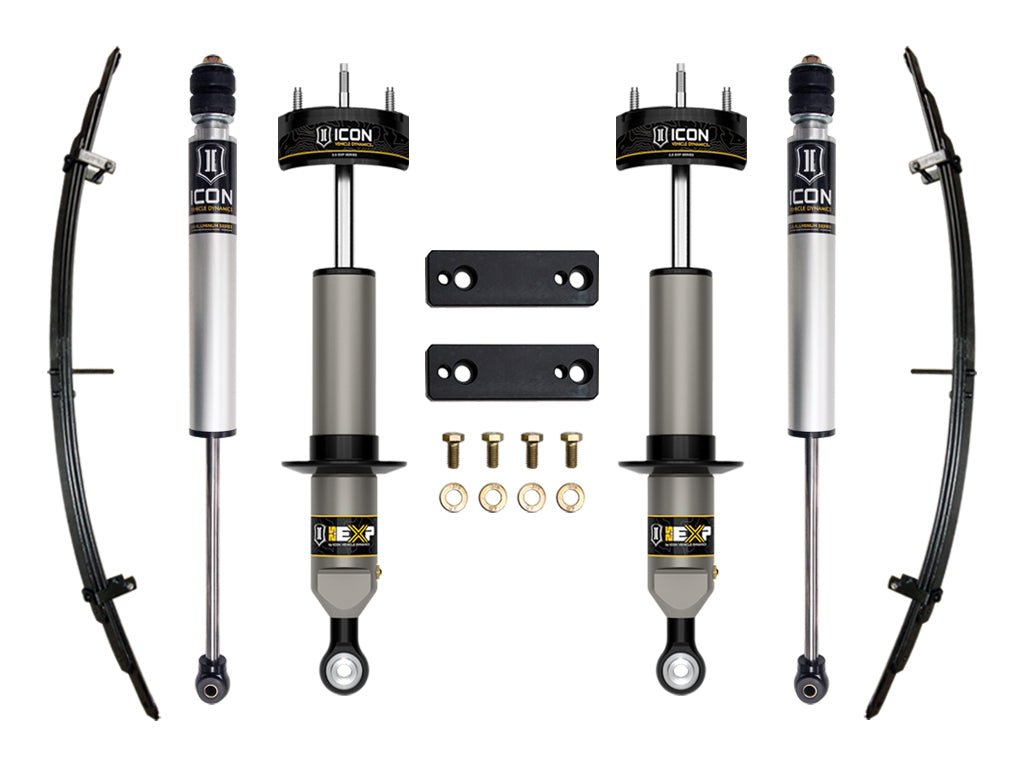

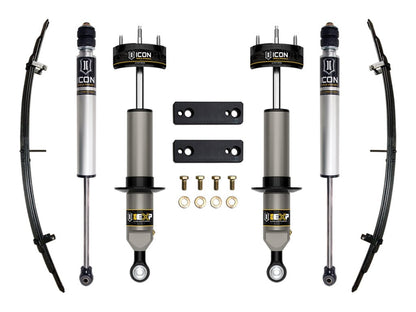

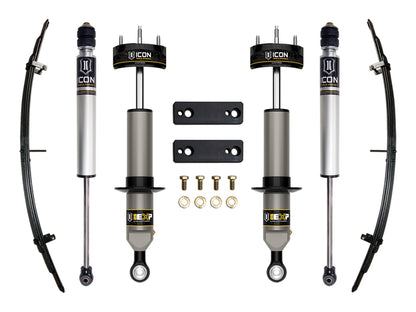

ICON Vehicle Dynamics 05-23 TACOMA 0-2" STAGE 2 EXP SUSPENSION SYSTEM
The ICON Vehicle Dynamics Stage 2 EXP suspension system for the 2005-2023 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
Key Features
- Vehicle specific design for 2005-2023 Toyota Tacoma
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
- Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
- Allows for full wheel travel without overstressing OE components
- Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Specifications
| Part Number |
K53221 |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Suspension Lift Kit |
| Adjustable Damping |
No |
| Maximum Lift Front |
2 |
| Maximum Lift Rear |
1.5 |
| OEM Wheels & Tires Fitment |
Yes |
| Rear Spring Rate Type |
Linear |
| Recommended Aftermarket Tires |
33" x 11.50" (Minor fender trimming may be required) |
| Recommended Aftermarket Wheels |
ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
Fitment
- Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
FAQs
What vehicles does it fit?
Fits: 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 2 EXP Suspension System (ICON part K53221). ICON fitment notes: Not compatible with TRD Pro; Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs. Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
