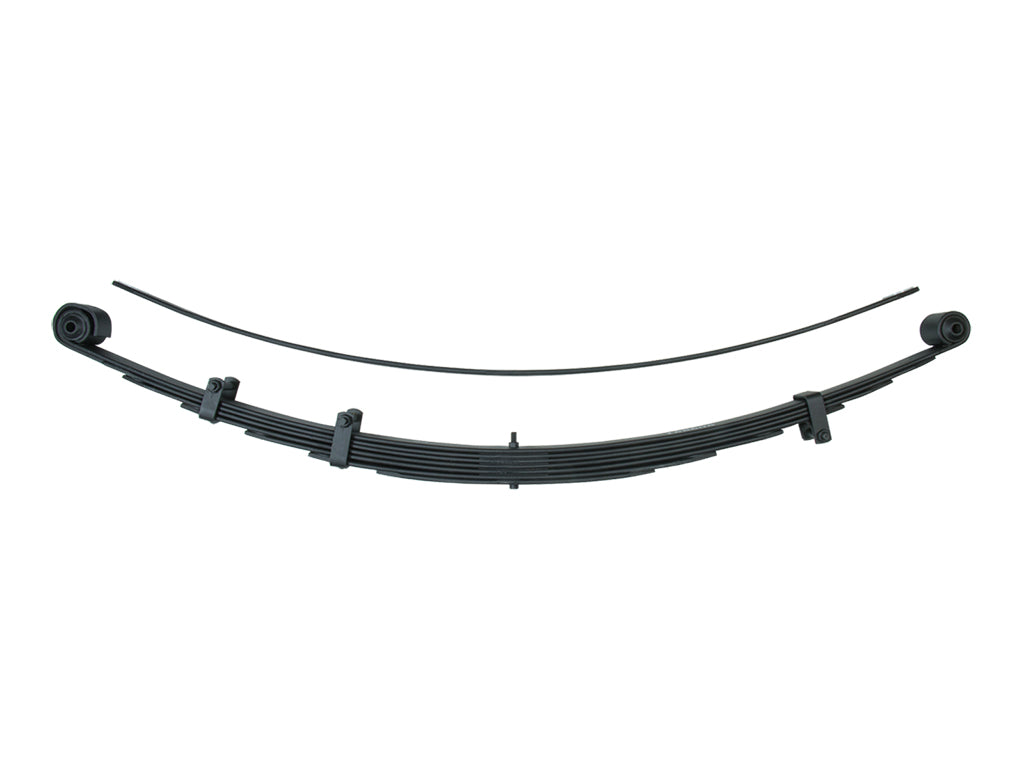

ICON Multi Rate RXT Leaf Pack w/ Add in Leaf for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF

To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring.

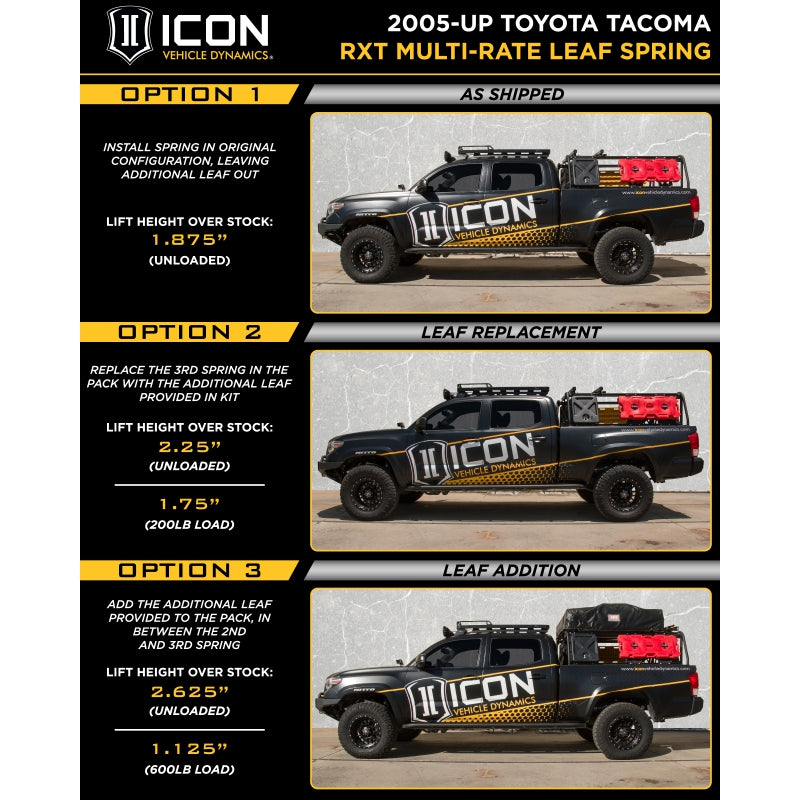

A slight reduction in spring rate increases ride quality while gaining additional droop travel. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more "outfitted" vehicles.

Key Features

• 3 user-adjustable spring rates for unique vehicle configurations
• Military wrap front eyelet for increased durability
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Leaf tip inserts reduce noise and increase ride comfort
• Includes additional leaf with 15% or 25% increase in spring rate for more laden "outfitted" vehicles
• Potential for increased wheel travel (when used with RXT shock) without sacrificing up-travel
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Direct bolt-in to OEM spring location makes for an easy install

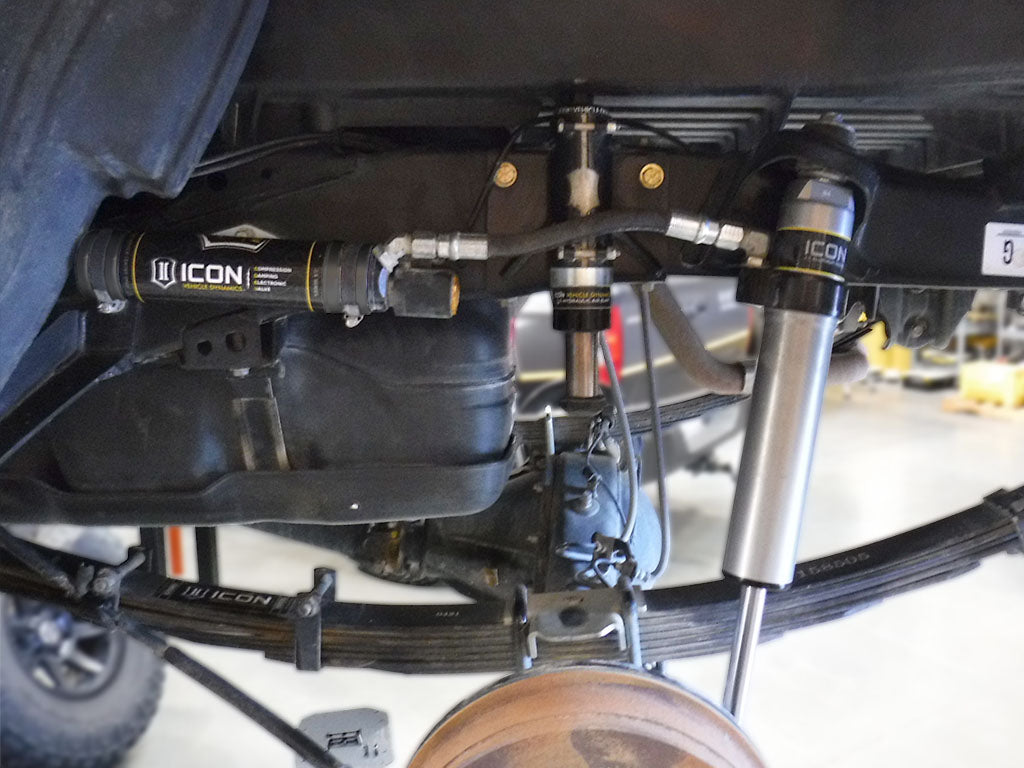

• TECH NOTE: For best results (and increased wheel travel), use in conjunction with ICON RXT rear shocks part numbers 57826P, 57826CP, or 59926P
• TECH NOTE: These leaf springs are sold individually. A quantity of 2 are required per vehicle

Specifications

Fitment

• 2005-2023 Toyota Tacoma
• 2005-2015 Toyota Tacoma 4WD

ICON fitment notes:

• Raises Rear 1.875 (in) - 2.625 (in)
• Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
• Use Up To 33 (in) x 11.50 (in) Tires
• Also Requires Part Number 52050
• Compatible shock absorber(s) to use are 57826P, 57826CP, 59926P, or 59926EP
• 0 (mm) Offset Aftermarket Wheels Recommended
• Raises Rear 1.375 (in) - 2.125 (in)

ICON technical notes:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
• TECH NOTE: For best results (and increased wheel travel), use in conjunction with ICON RXT rear shocks part numbers 57826P, 57826CP, 59926P, or 59926EP.
• TECH NOTE: U-Bolt kit part # 52050 required for installation (sold separately)

FAQs

Will it fit my vehicle?
ICON Vehicle Dynamics lists the vehicles shown in the Fitment section above. If you are unsure, email [email protected] before ordering and we will confirm fitment.
