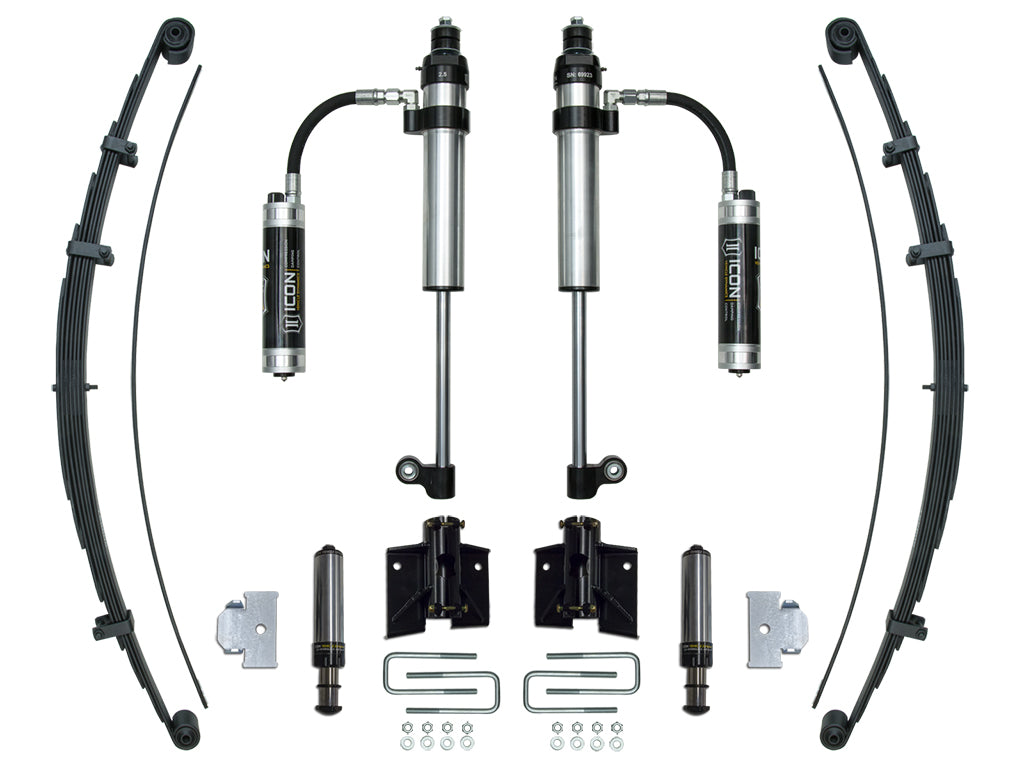

ICON Vehicle Dynamics 05-23 TACOMA RXT STAGE 2 SYSTEM
The 2005-2023 Toyota Tacoma is an extremely reliable truck that has served as a versatile platform for drivers seeking the ultimate off-road adventure. From the brutal deserts of the Southwest, to the slickrock of Moab, to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota. ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market.
Unable to leave “well-enough” alone, ICON is once again aiming to raise the bar in Tacoma performance with the introduction of the RXT Rear Suspension System.
Key Features
- ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
- ICON RXT Rear Shock: Corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
- ICON RXT Rear Shock: CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
- ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
- ICON RXT Rear Shock: Simple and straightforward installation

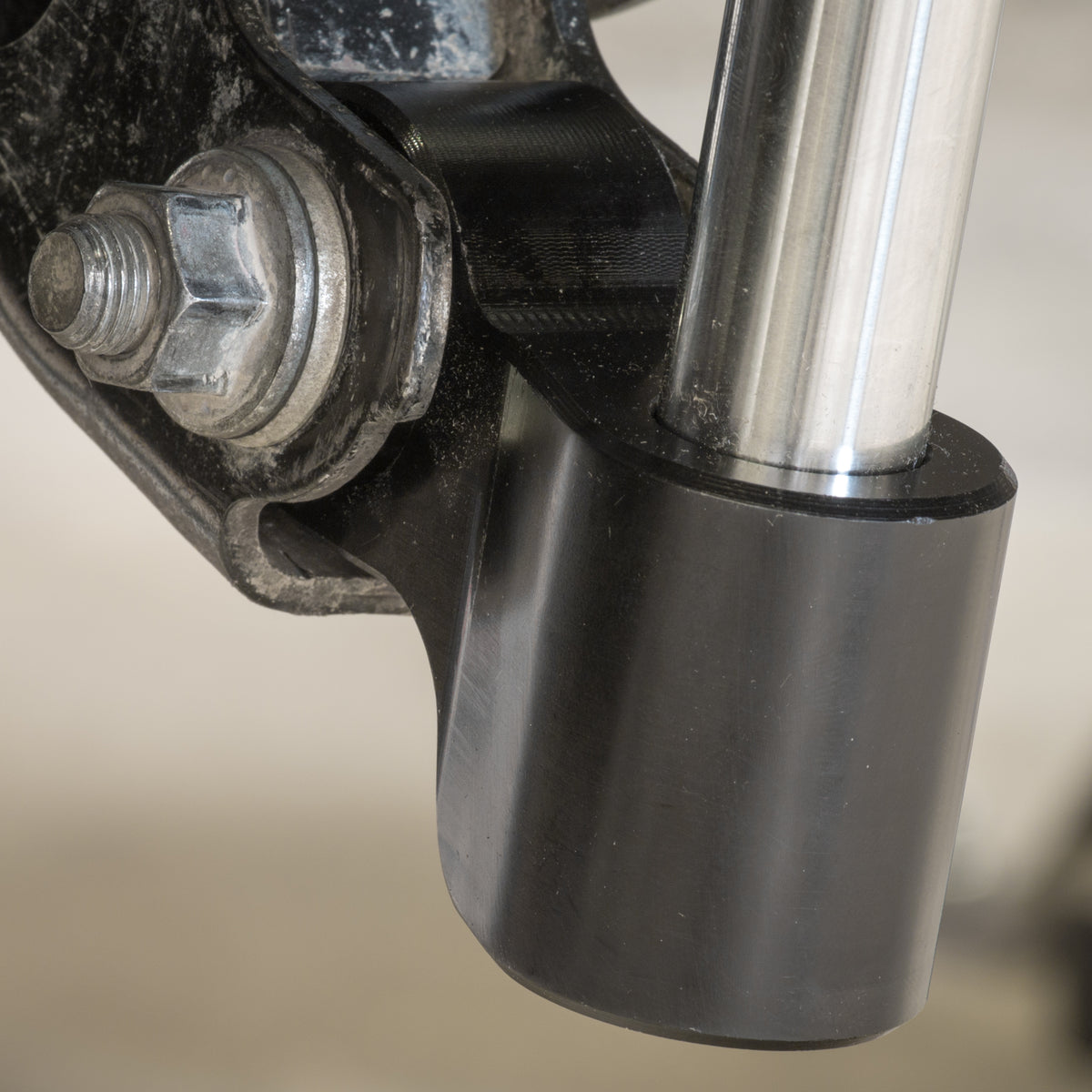

- ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
- ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
Specifications
| Part Number |
K53162 |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Suspension Lift Kit |
| Adjustable Damping |
Yes |
| Damping Adjustment Type |
Manual |
| Maximum Lift Rear |
2.625 |
| Minimum Lift Rear |
1.875 |
| OEM Wheels & Tires Fitment |
Yes |
| Rear Spring Rate Type |
Variable |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
Fitment
- Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
FAQs
What vehicles does it fit?
Fits: 2005-2023 Toyota Tacoma, Stage 2 RXT Suspension System, CDCV (ICON part K53162). ICON fitment notes: Will not fit 2WD Tacoma with 5 wheel lug studs. Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
