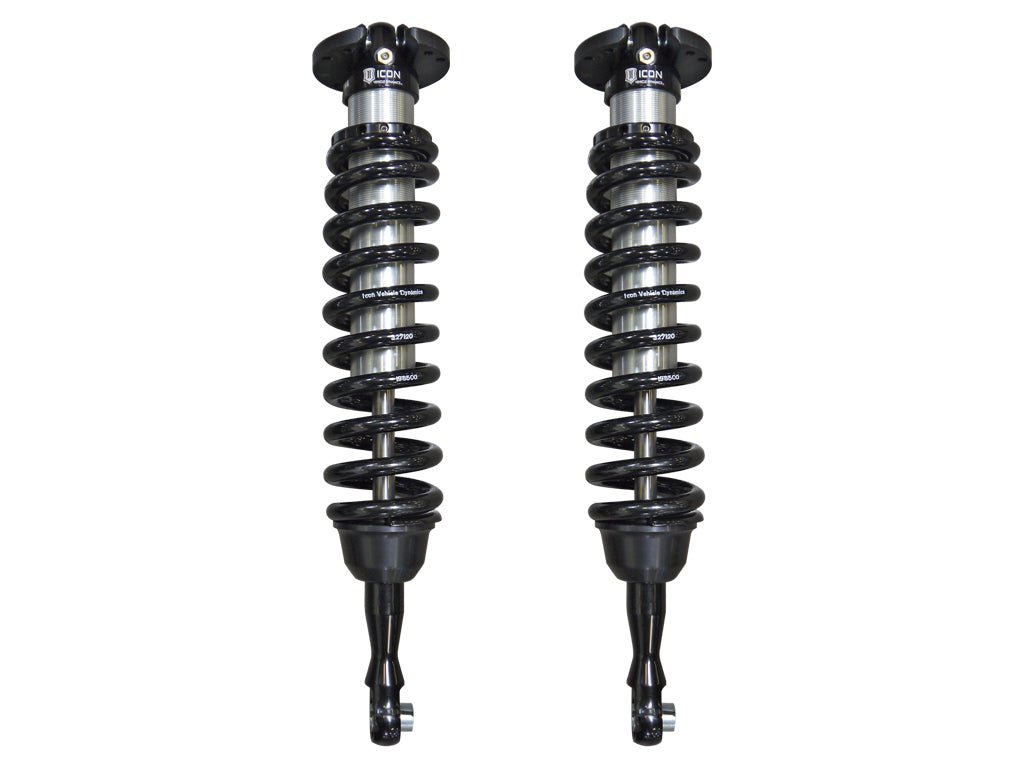

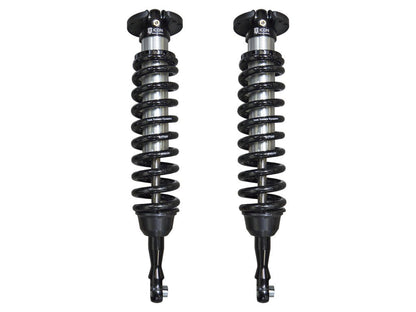

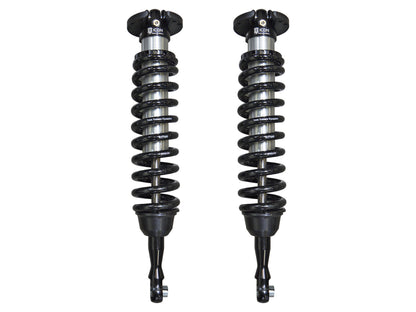

ICON Vehicle Dynamics 07-21 TUNDRA/08-22 SEQUOIA 2.5 VS IR COILOVER KIT
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Key Features
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- Vehicle specific shock length yields maximum wheel travel
- Height-adjustable coilovers offer 1-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with internal reservoirs for consistent performance
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Specifications
| Part Number |
58650 |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Coilover Spring and Shock Assembly |
| Adjustable Damping |
NO |
| Coil Over Springs Included |
Yes |
| Damping Type |
Oil |
| Dust Shield |
No |
| Material |
Steel |
| Material |
Aluminum |
| Maximum Lift |
3 |
| Minimum Lift |
1 |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Tires |
35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels |
ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Remote Reservoir |
NO |
| Shaft Diameter |
0.875 |
| Spring Color |
Black |
| Spring Rate Type |
Linear |
