08-24 F250/F350 LEAF SPRING EXPANSION PACK

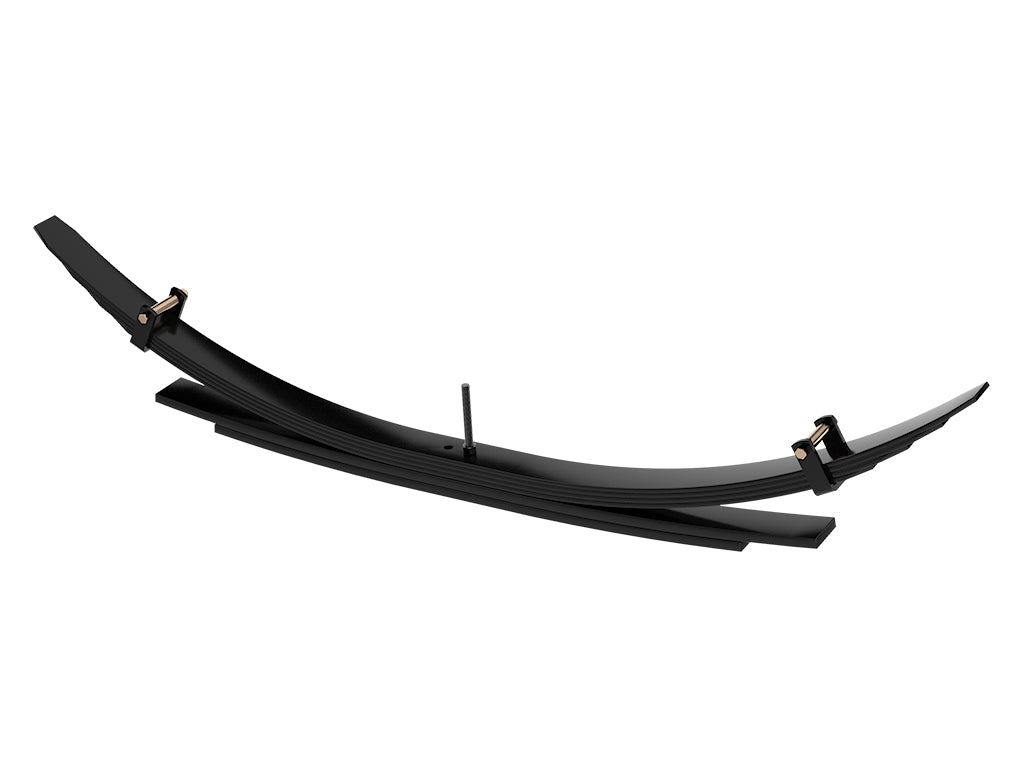

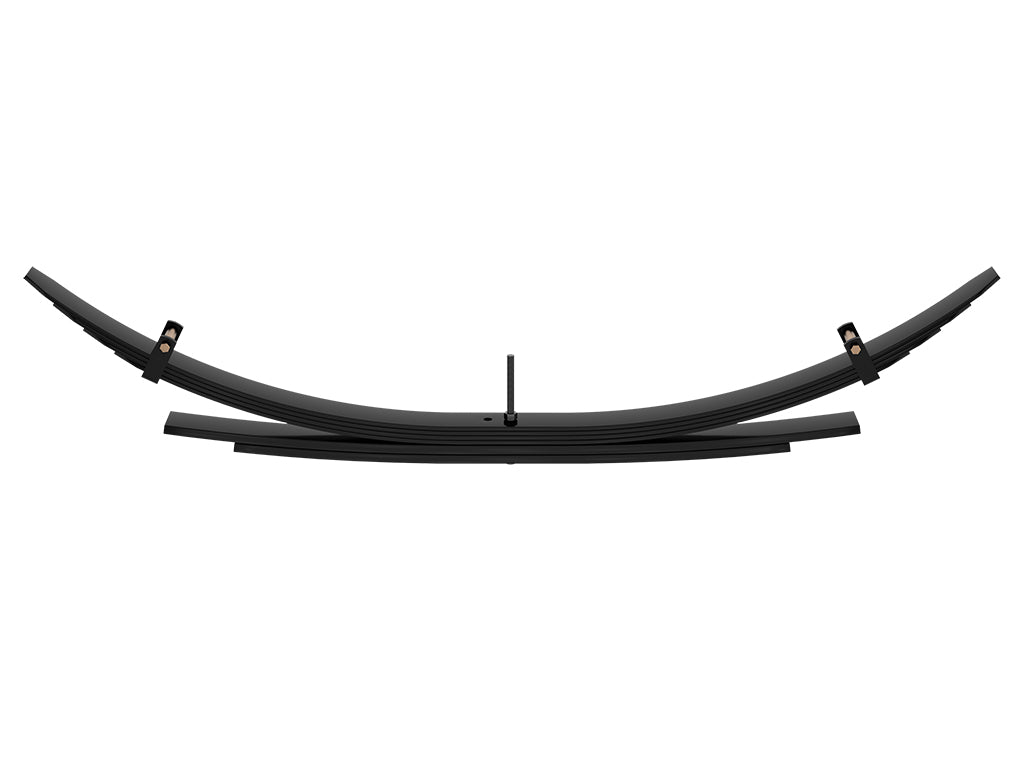

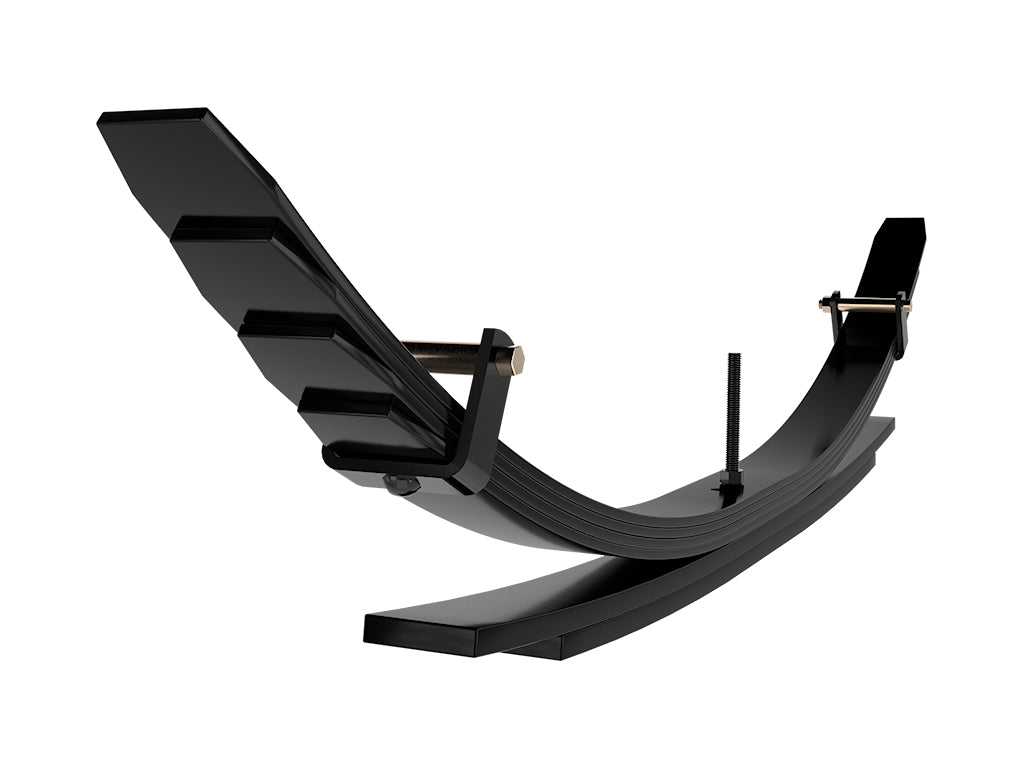

ICON's 2" Rear Leaf Expansion Pack provides increased suspension lift and better ride quality for lifted 08-24 F-250/F-350 Super Duty pickup trucks. The Expansion Pack is designed to replace and improve the center leaves of the stock leaf spring pack while retaining the factory main leaf. This makes the Expansion Pack both cost-effective and an easier installation as it doesn't require complete removal of the leaf spring main leaf from the spring hanger and shackle.

The additional leaves included in the pack are designed to optimize ride quality and reduce axle wrap compared to lift blocks. The design also shifts the overload transition point to improve small bump compliance.

Key Features

• Provides 2” of rear lift when installed with OE rear blocks
• Reduces axle wrap compared to lift blocks
• Offers improved ride quality compared to OE leaf springs
• Moves overload transition point further away for better small bump compliance
• More cost effective than a full leaf pack
• Retains factory main leaf for easier installation than a full leaf pack
• TECH NOTE: Depending on year and block configuration installer must use the appropriate U-bolts (not included in kit)
• TECH NOTE: Provides 2" of rear lift when installed with OE rear blocks
• TECH NOTE: Not recommended for Ford F-350 with dual real wheels
• TECH NOTE: Sold as single leaf spring expansion pack (qty of 2 required per vehicle)

Specifications

Fitment

• 2008-2026 Ford F-250 Super Duty
• 2008-2026 Ford F-350 Super Duty

ICON fitment notes:

• Use Up To 35 (in) x 12.50 (in) Tires
• Up to 37x12.50 (in) Tire with Minor Fender Trimming
• with 1 in Rear Blocks
• Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
• Also Requires Part Number 61002 and Number 67004
• Raises Rear .5 (in)
• 6 (mm) Offset Aftermarket Wheels Recommended
• Also Requires Part Number 61002 and Number 37004
• with OE Rear Blocks
• Also Requires Part Number 37003
• Raises Rear 2 (in)
• Also Requires Part Number 67003

ICON technical notes:

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires (1" rear blocks): 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Tires (OE rear blocks): 37" x 12.50"
• APPLICATION NOTE #151: Fits single rear wheel models only
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #301: Sold as single leaf spring expansion pack (qty of 2 required per vehicle)
• APPLICATION NOTE #491: Depending on year and block configuration installer must use the appropriate U-bolts (not included in kit)

FAQs

Will it fit my vehicle?
ICON Vehicle Dynamics lists the vehicles shown in the Fitment section above. If you are unsure, email [email protected] before ordering and we will confirm fitment.
