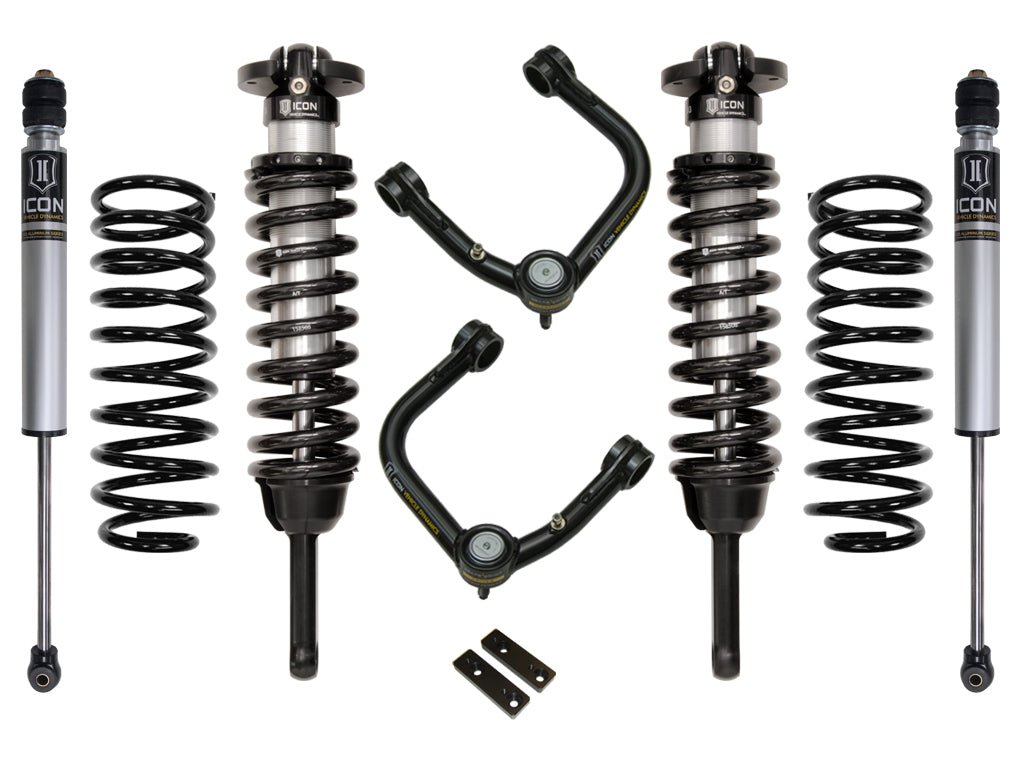

ICON Vehicle Dynamics 10-24 4RNR/10-14 FJ 0-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Key Features
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5" of front lift height
- Extended Travel coilovers matched with ICON UCA provides increased front droop travel
- Tubular upper control arms for added strength, durability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
- Bolt-on system means no cutting or welding necessary for install
Specifications
| Part Number |
K53062T |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Suspension Lift Kit |
| Adjustable Damping |
No |
| Coil Quantity Front |
2 |
| Front Spring Rate Type |
Linear |
| Maximum Lift Front |
3.5 |
| Maximum Lift Rear |
2 |
| OEM Wheels & Tires Fitment |
Yes |
| Rear Spring Rate Type |
Linear |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
