19-23 GM 1500 1.5-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA

ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted.

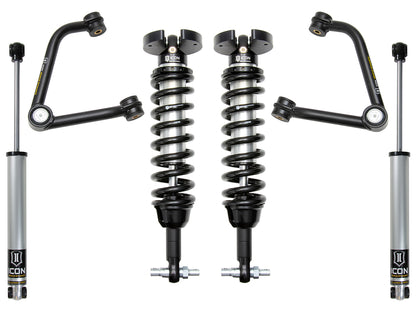

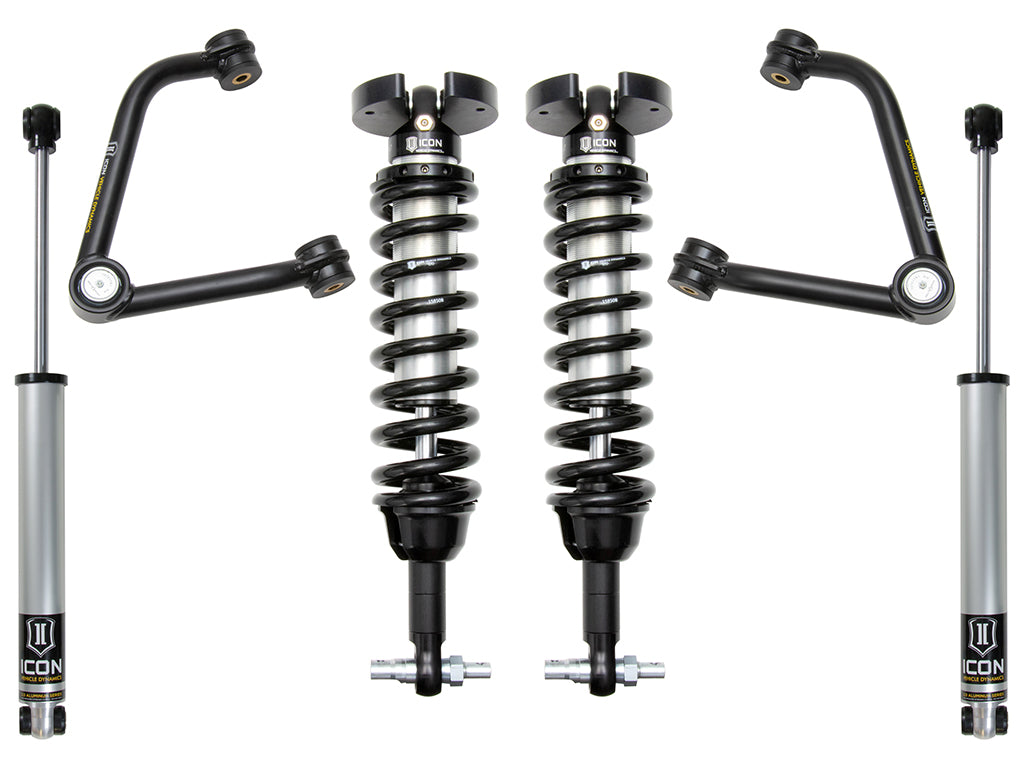

The Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-developed Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.

The ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Key Features

• Adjustable coilovers provide 1.5-3.5” of front lift height
• Increased lift height allows for fitment of larger and more aggressive tires
• Up to 35% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• 2.5 Series coilovers feature corrosion resistant CAD plated shock body with 7/8" shaft
• 2.0 Aluminum Series shocks feature corrosion resistant anodized shock body with 5/8" shaft
• 7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and revalvable
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling

Specifications

Fitment

• Fits 2WD/4WD applications
• Not compatible with models equipped with Adaptive Ride Control (ARC)
• Not compatible with models equipped with 4-cylinder engine
• Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
• Included rear shocks are compatible with 0-2" of rear lift on most models. Rear shocks are not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4
• Not compatible with models equipped with torsion bar front springs

Double-check your vehicle details before ordering. Questions? Email [email protected].

FAQs

What vehicles does it fit?
It fits 2WD/4WD applications; Not compatible with models equipped with Adaptive Ride Control (ARC); Not compatible with models equipped with 4-cylinder engine; Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models; Included rear shocks are compatible with 0-2" of rear lift on most models. Rear shocks are not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4; Not compatible with models equipped with torsion bar front springs. Double-check your vehicle details before ordering. Questions? Email [email protected].
