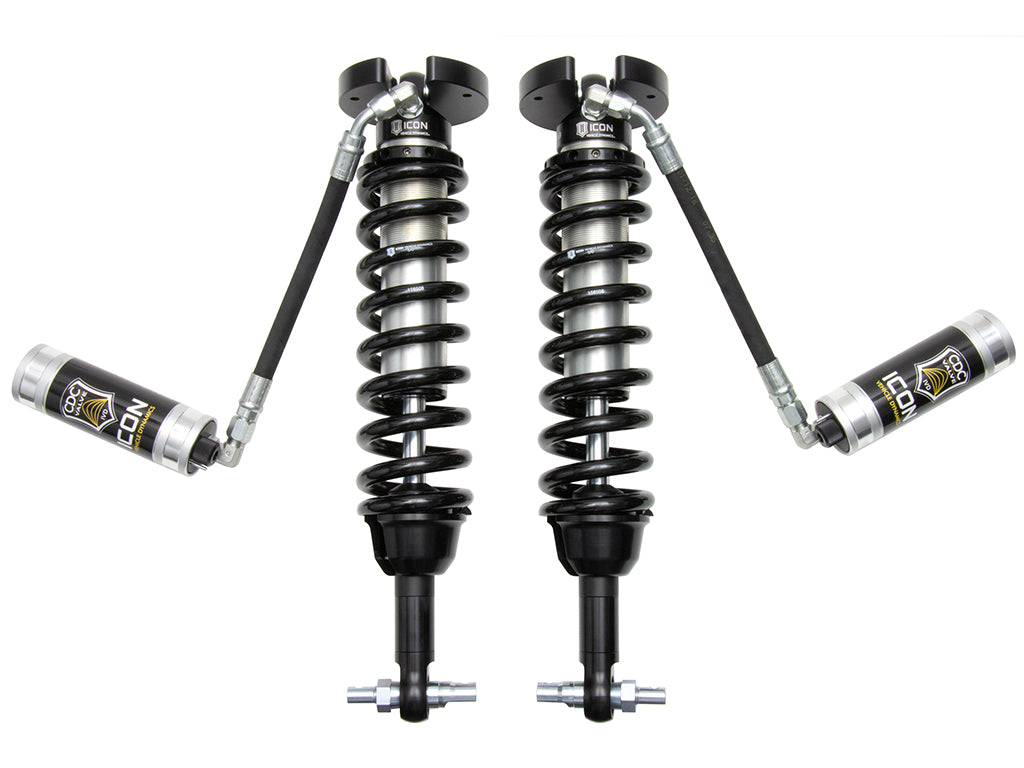

ICON Vehicle Dynamics 2019-UP GM 1500 EXTENDED TRAVEL 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the 2019-2023 GM Silverado/Sierra 1500. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.
Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your GM truck.
Key Features
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended offroad use
- ICON CDCV equipped for external tunability of your shocks
- Height-adjustable coilovers offer 1.5-3.5" of front lift height
- ICON engineered Eibach coil springs
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling or welding necessary for installation
Specifications
| Part Number |
71656C |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Coilover Spring and Shock Assembly |
| Coil Over Springs Included |
Yes |
| Damping Type |
Oil |
| Dust Shield |
No |
| Material |
Steel |
| Material |
Aluminum |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Tires |
(Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Tires |
(Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels |
ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Shaft Diameter |
0.875 |
| Spring Color |
Black |
Fitment
- Models equipped with Adaptive Ride Control (ARC) also require ICON part numbers 71021 and 71022 and concurrent installation of aftermarket rear shocks
- Not compatible with models equipped with 4-cylinder engine
- Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
- Not compatible with models equipped with torsion bar front springs
Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
FAQs
What vehicles does it fit?
For 2019-2023 Chevrolet Silverado 1500 and GMC Sierra 1500 models with coil front springs; aftermarket upper control arms are required. Models equipped with Adaptive Ride Control (ARC) also require ICON part numbers 71021 and 71022 and concurrent installation of aftermarket rear shocks; Not compatible with models equipped with 4-cylinder engine; Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models; Not compatible with models equipped with torsion bar front springs. Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
