21-23 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 3 SUSPENSION SYSTEM TUBULAR

Name: 21-23 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 3 SUSPENSION SYSTEM TUBULAR
Brand: ICON Vehicle Dynamics
SKU: K40003T
Price: 4361.77 USD
Availability: InStock

$4,361.77

✔ 30-day returns on unused items in original packaging. Details
✔ Manufacturer warranty: we help with claims
✔ Fitment question? Email [email protected]

Shipping: Ships from the manufacturer or distributor. Processing times vary by manufacturer; we'll email tracking as soon as your order ships.

Free shipping on orders $100+ to the contiguous U.S. (flat $12.99 under $100)

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

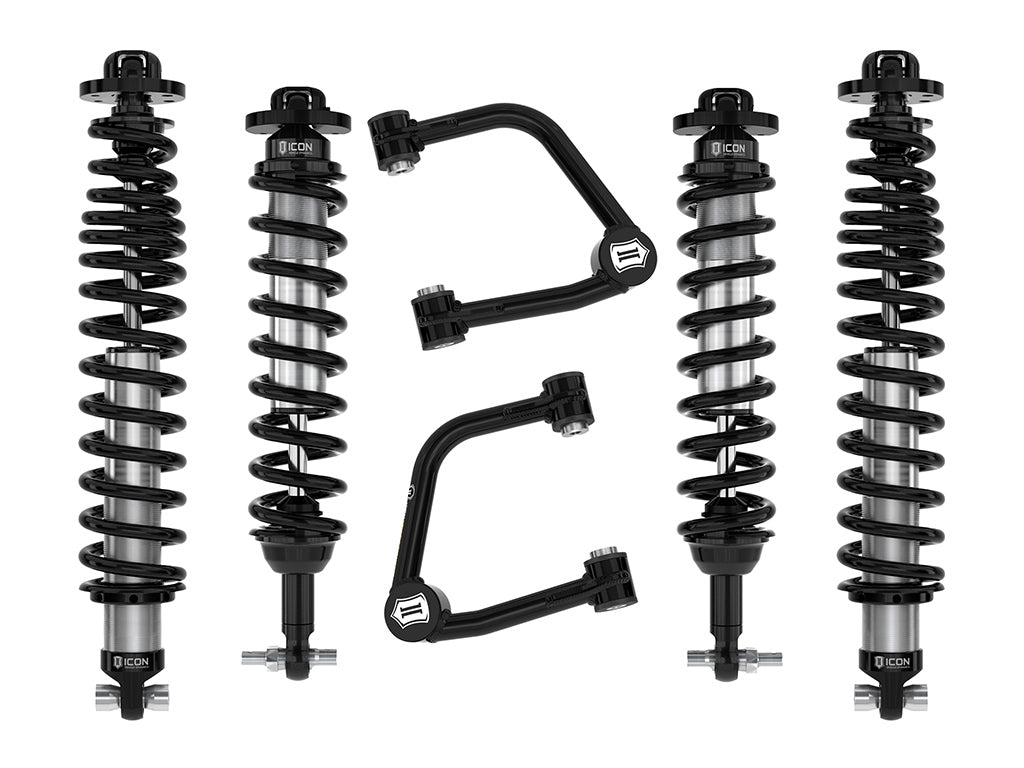

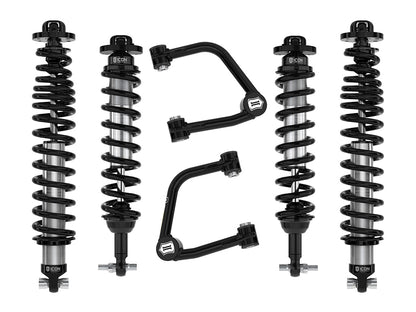

To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible.

Key Features

Improved suspension performance and ride quality over stock
Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control
Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door non-Sasquatch Broncos
PTFE lined spherical bearings and application specific mounting hardware
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
ICON engineered coil springs featuring a unique triple rate rear coil design
High strength alloy CNC machined lower bar pins
Tubular UCAs for added strength, durability, and alignment correction for better drivability

Specifications

Part Number	K40003T
Brand	ICON Vehicle Dynamics
Product Type	Suspension Lift Kit
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Control Arm	No
Adjustable Damping	No
Adjustable Rebound	No
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Maximum Lift Front	4
Maximum Lift Rear	3
Minimum Lift Front	3
Minimum Lift Rear	2
OEM Wheels & Tires Fitment	Yes
Rear Shock Body Diameter	2.5
Rear Spring Rate Type	Progressive Triple Rate
Recommended Aftermarket Tires	35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style	Internal

Fitment

Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible
Not compatible with Bronco Raptor

Double-check your vehicle details before ordering. Questions? Email [email protected].

FAQs

What vehicles does it fit?
It fits: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible; Not compatible with Bronco Raptor. Double-check your vehicle details before ordering. Questions? Email [email protected].
