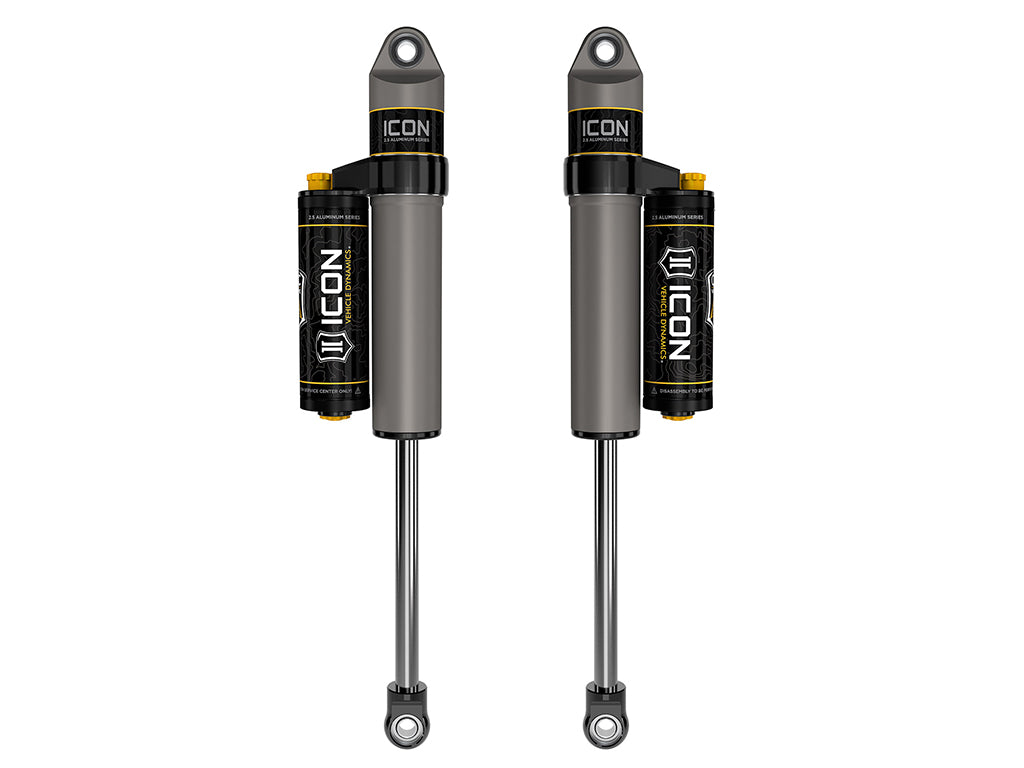

ICON Vehicle Dynamics 21-26 F150 4WD/TREMOR 0-2" REAR 2.5 VS PB CDCV PAIR
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDCV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The included ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Key Features
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with piggyback reservoir
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
Specifications
| Part Number |
97721CP |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Suspension Shock Absorber Set |
| Active or Passive Suspension |
Passive |
| Adjustable Compression |
Yes |
| Adjustable Damping |
Yes |
| Adjustable Rebound |
No |
| Cylinder Color |
Grey |
| Cylinder Diameter |
2.5 |
| Cylinder Material |
Aluminum |
| Damping Adjustment Type |
Manual |
| Damping Type |
Oil |
| External Reservoir |
Yes |
| Reservoir Type |
Piggyback |
| Shaft Diameter |
0.875 |
| Shaft Material |
Chrome |
| Valving Type |
Digressive |
Fitment
- Compatible with 0-2" of rear lift over stock on most 2021-2026 F-150 4WD models
- Not compatible with F-150 Raptor
- Not compatible with models equipped with BlueCruise
Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
FAQs
What vehicles does it fit?
It fits: Compatible with 0-2" of rear lift over stock on most 2021-2026 F-150 4WD models; Not compatible with F-150 Raptor; Not compatible with models equipped with BlueCruise. Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
