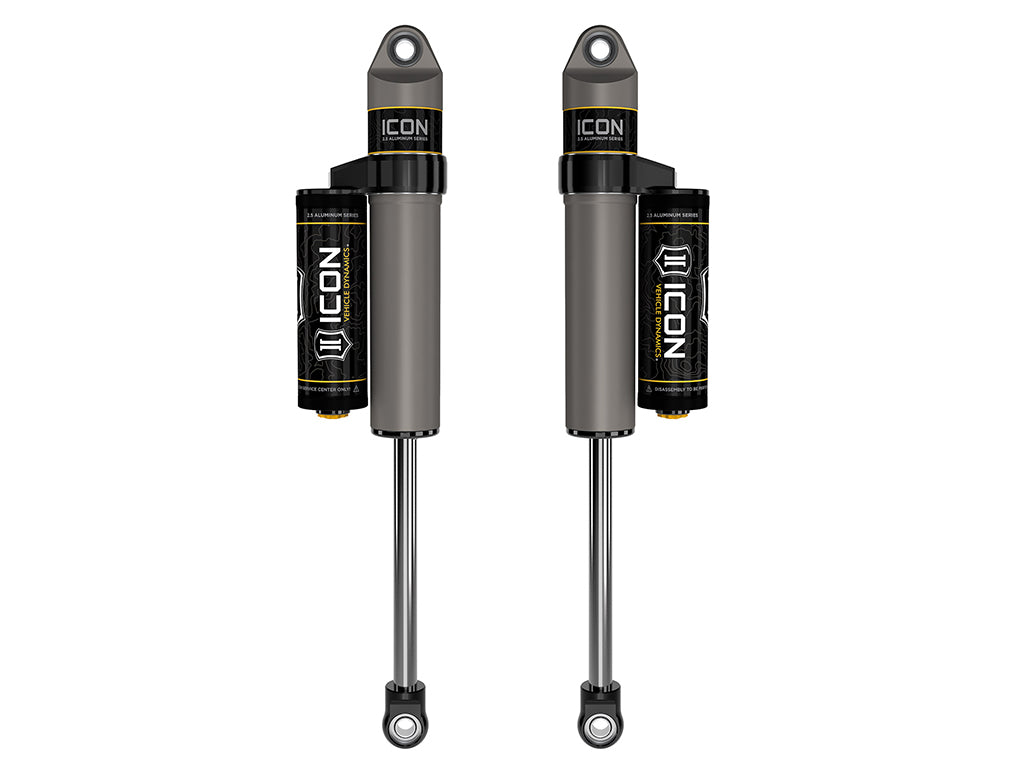

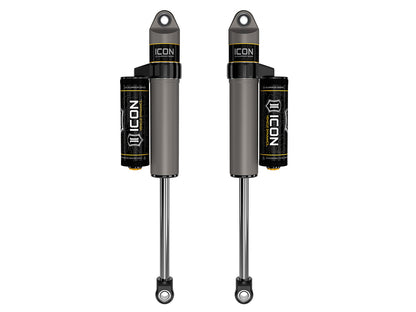

ICON Vehicle Dynamics 21-26 F150 4WD/TREMOR 0-2" REAR 2.5 VS PB PAIR
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Key Features
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with piggyback reservoir
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
Specifications
| Part Number |
97721P |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Suspension Shock Absorber Set |
| Active or Passive Suspension |
Passive |
| Adjustable Compression |
No |
| Adjustable Damping |
No |
| Adjustable Rebound |
No |
| Cylinder Color |
Grey |
| Cylinder Diameter |
2.5 |
| Cylinder Material |
Aluminum |
| Damping Type |
Oil |
| External Reservoir |
Yes |
| Reservoir Type |
Piggyback |
| Shaft Diameter |
0.875 |
| Shaft Material |
Chrome |
| Valving Type |
Digressive |
Fitment
- Not compatible with F-150 Raptor
- Not compatible with models equipped with BlueCruise
- Compatible with 0-2" of rear lift over stock on most F-150 4WD models
Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
FAQs
What vehicles does it fit?
Fits: 2021-2026 Ford F-150 4WD/F-150 Tremor, 0-2" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair (ICON part 97721P). ICON fitment notes: Will not work with factory installed electronically controlled suspension; Will not fit F-150 Raptor; Compatible with 0-2" of rear lift over stock on most F-150 4WD models; Not compatible with models equipped with BlueCruise. Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
