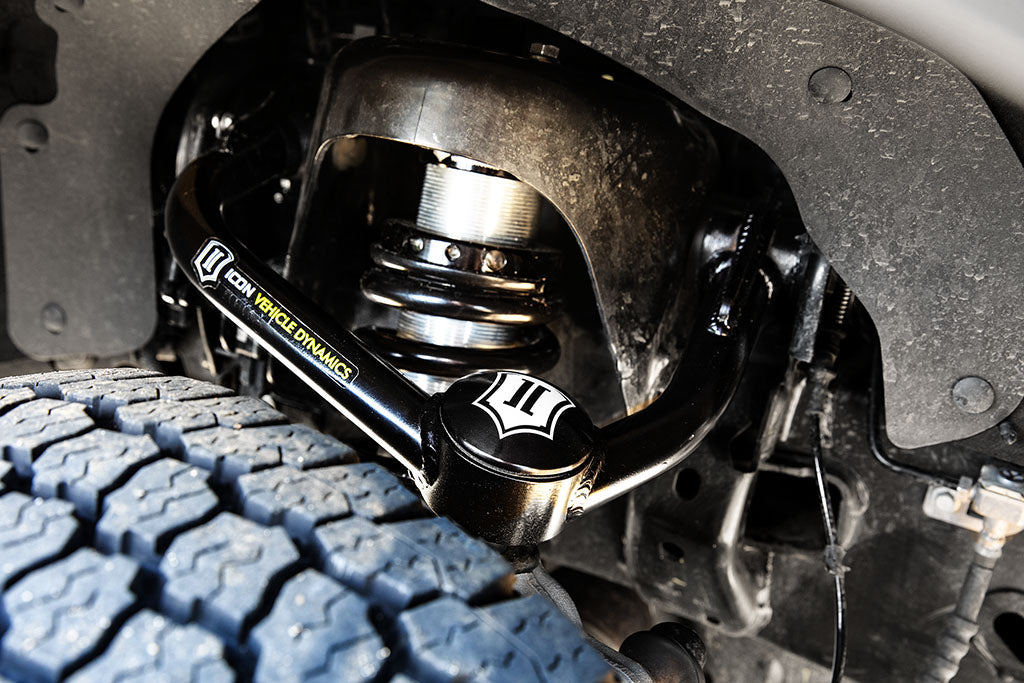

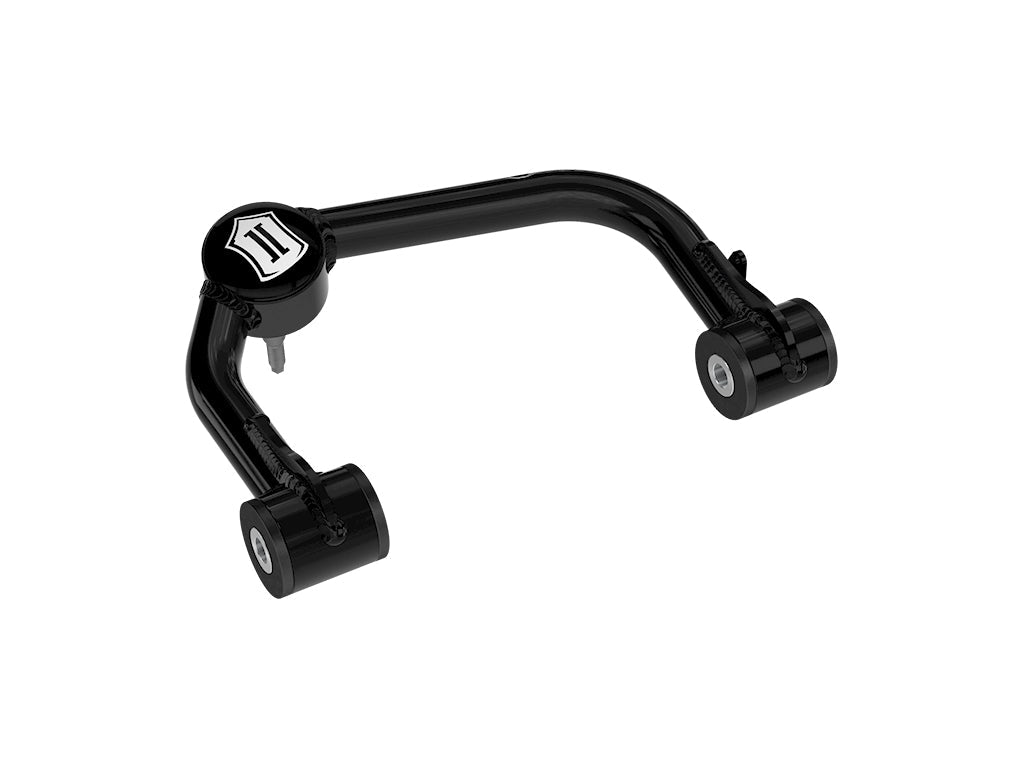

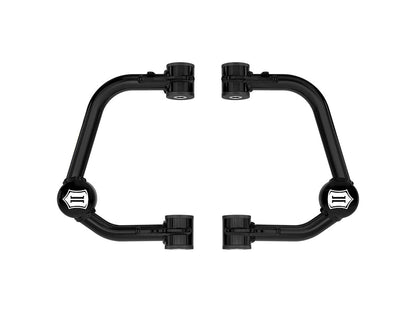

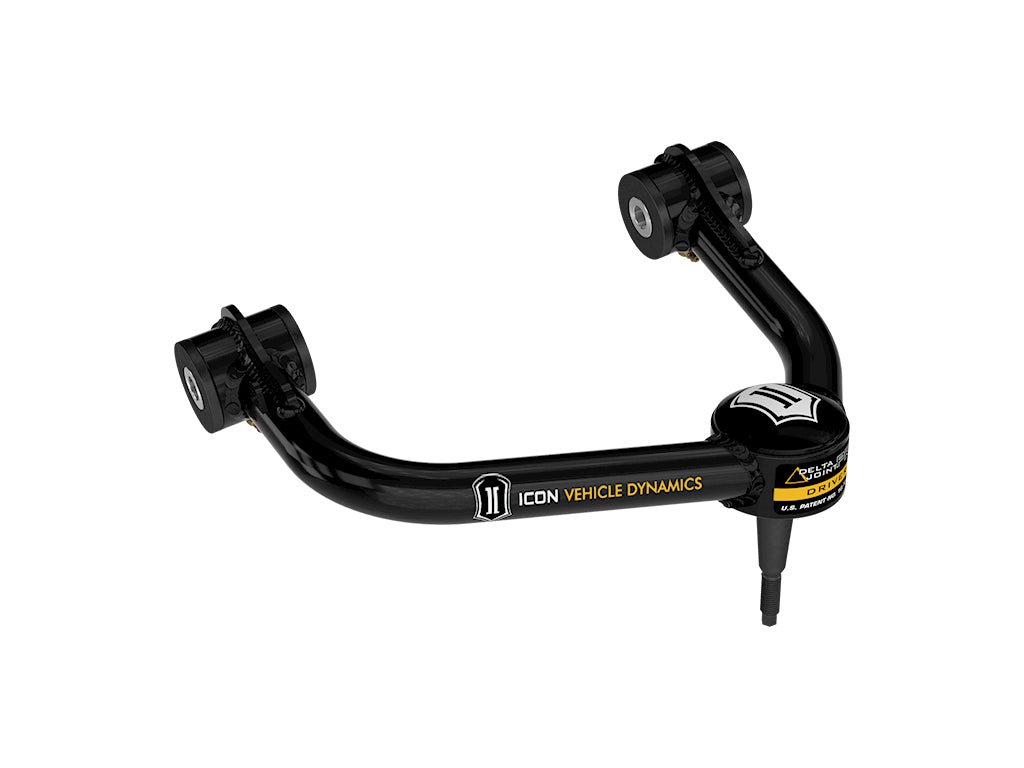

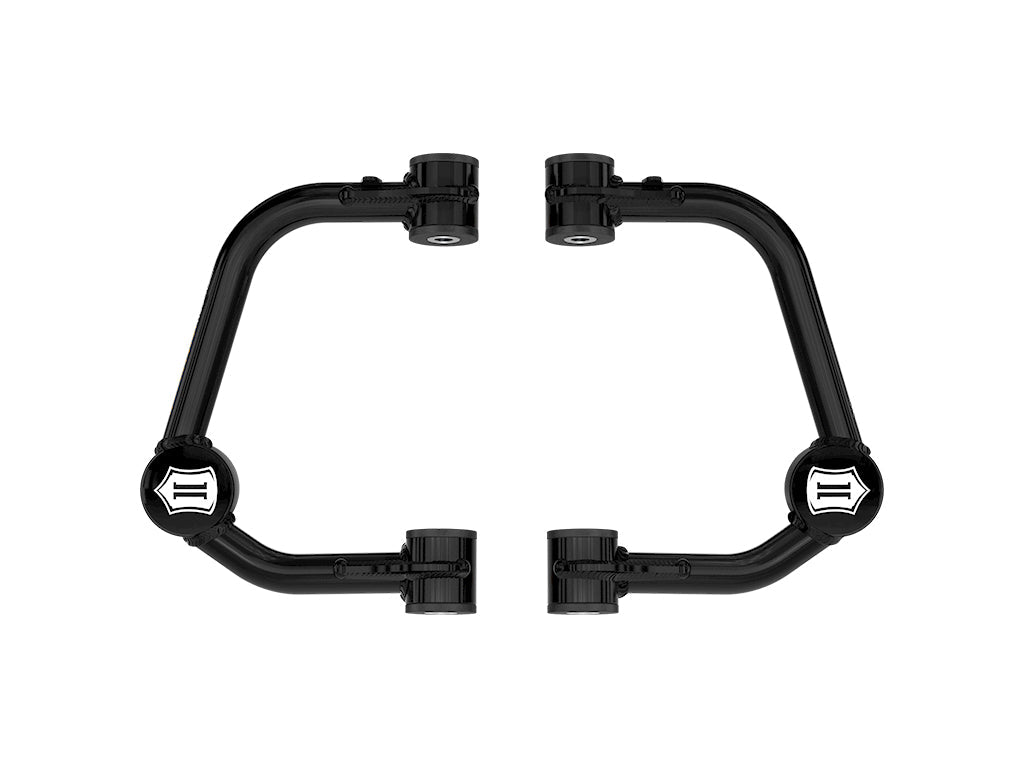

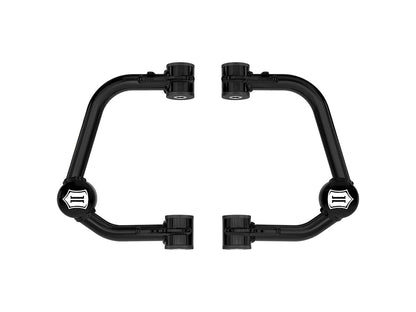

These tubular steel upper control arms free up your 2021-2024 Ford F-150 front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind.

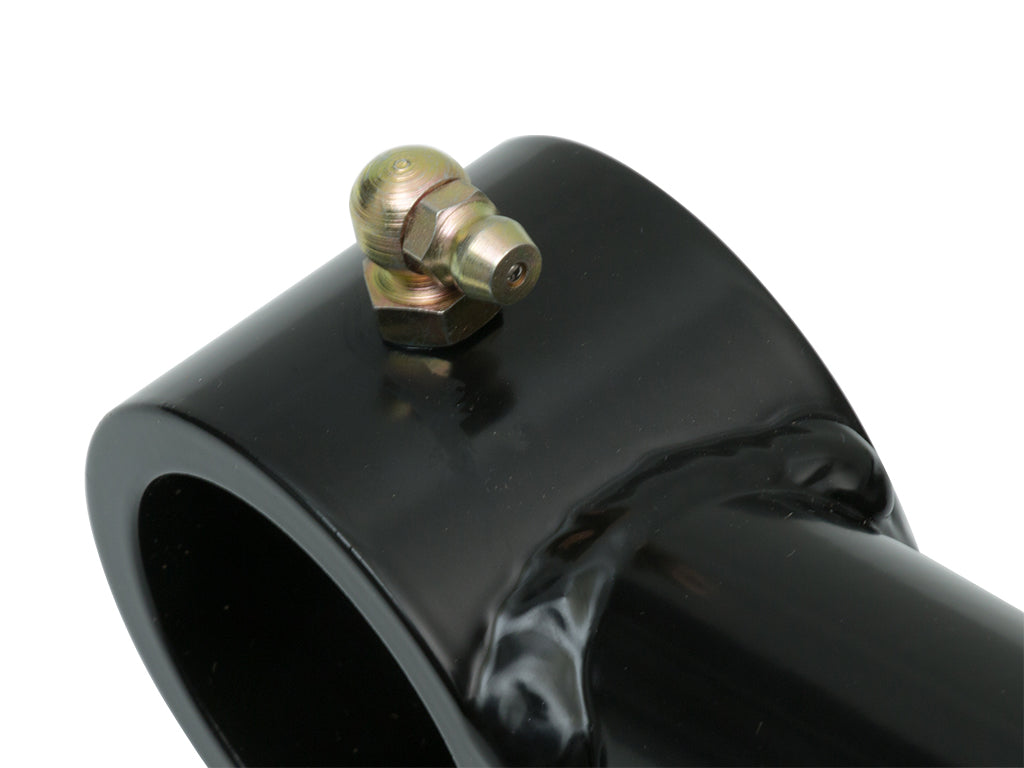

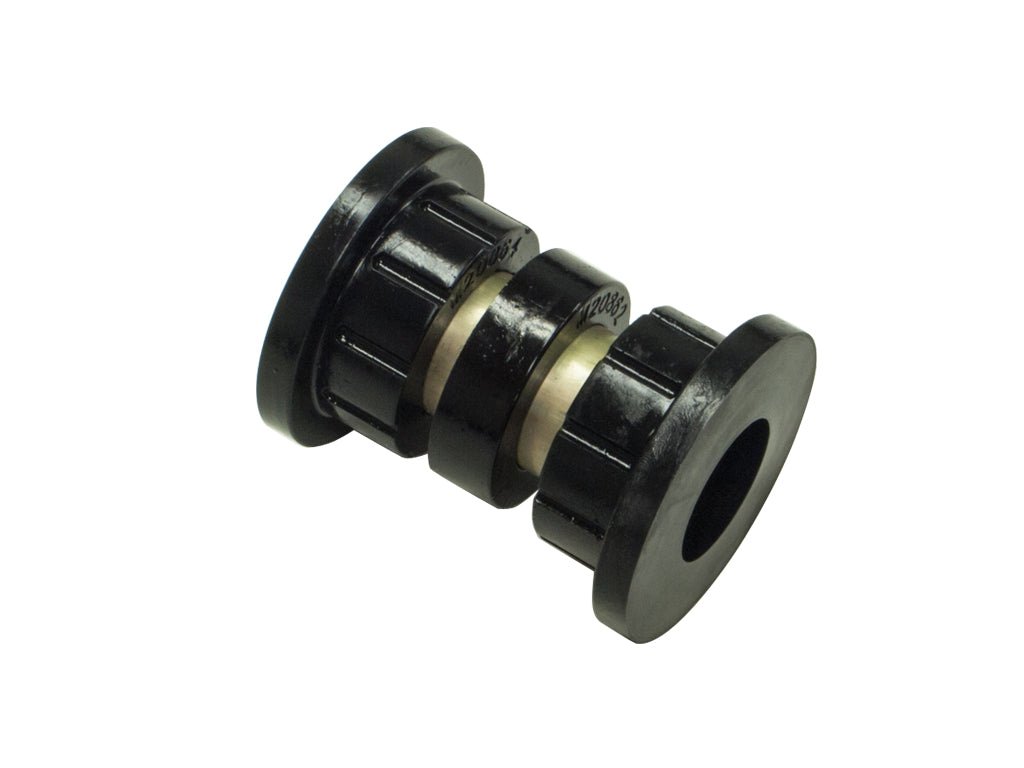

It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish.
Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2021-2024 Ford F-150.
| Part Number | 98522DJ |
| Brand | ICON Vehicle Dynamics |
| Product Type | Suspension Control Arm |
| Ball Joint Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Tubular |
| Grease Fittings Included | Yes |
| Greaseable | yes |
| OEM Wheels & Tires Fitment | Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Recommended Aftermarket Tires | 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
Double-check your vehicle details before ordering. Questions? Email [email protected].
What vehicles does it fit?
It fits: Only compatible with OE or ICON steering knuckles. DO NOT install in combination with ANY other aftermarket steering knuckles; Compatible with 1.75-3.5" of front lift on all F-150 submodels except Raptor and Tremor with OE steering knuckles; Compatible with 3.5-4.5" of front lift on all F-150 submodels except Raptor and Tremor with ICON Front Knuckle Kit Part # 94000; Compatible with 1-3" of front lift over stock on F-150 Tremor with OE steering knuckles; Not compatible with F-150 Raptor. Double-check your vehicle details before ordering. Questions? Email [email protected].
