21-24 FORD F150 RAPTOR 2-2.25" STAGE 2 SUSPENSION SYSTEM OVERLAND

Transform your 2021-2024 Gen3 F-150 Raptor’s performance and stance with the ICON Vehicle Dynamics Stage 2 suspension system, engineered specifically for vehicles equipped with OE shock absorbers. The front coil springs utilize a linear spring rate for consistent performance and precise handling while delivering 2.25" of front lift for standard Raptors and 2" for Raptor R models, ensuring an aggressive look and increased ground clearance. Designed for seamless compatibility, they maintain full electronic shock functionality while enhancing your truck's capability and ride quality.

Key Features

• Vehicle specific design for the Gen3 F-150 Raptor equipped with OE shock absorbers
• Front coils yield 2.25" front lift height over stock on Raptor or 2" of front lift on Raptor R
• Compatible with all versions of available OE shock absorbers
• Maintains electronic shock functionality

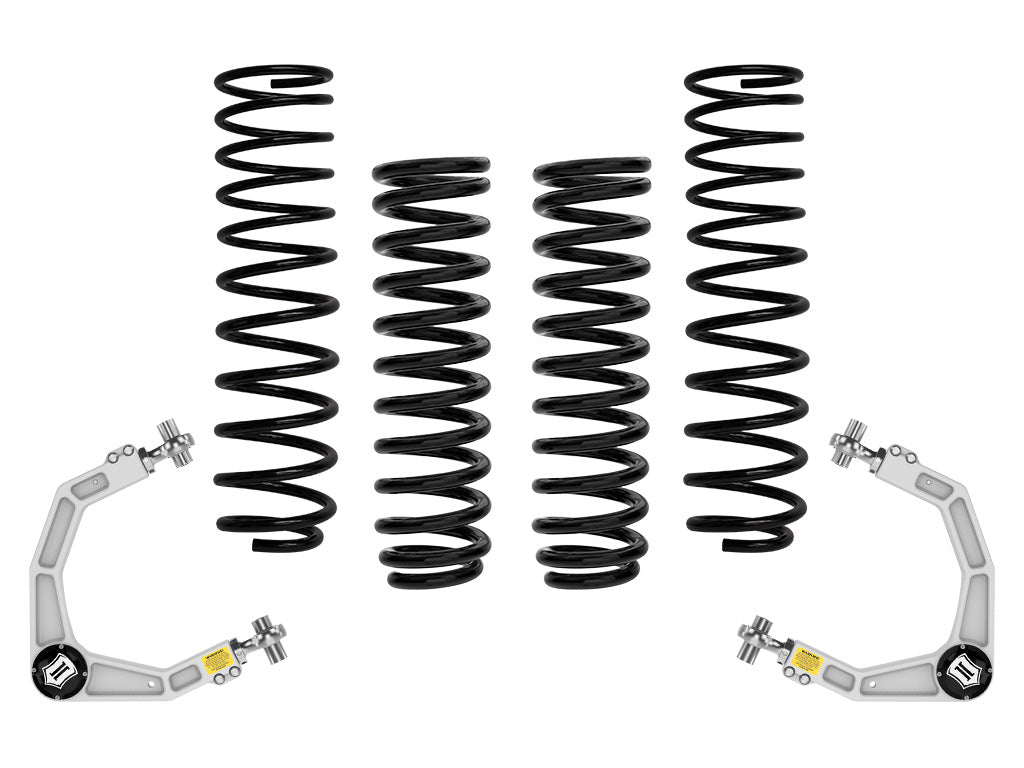

• Linear rate front coil springs

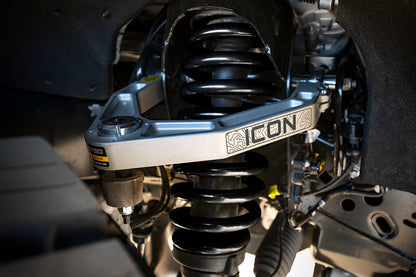

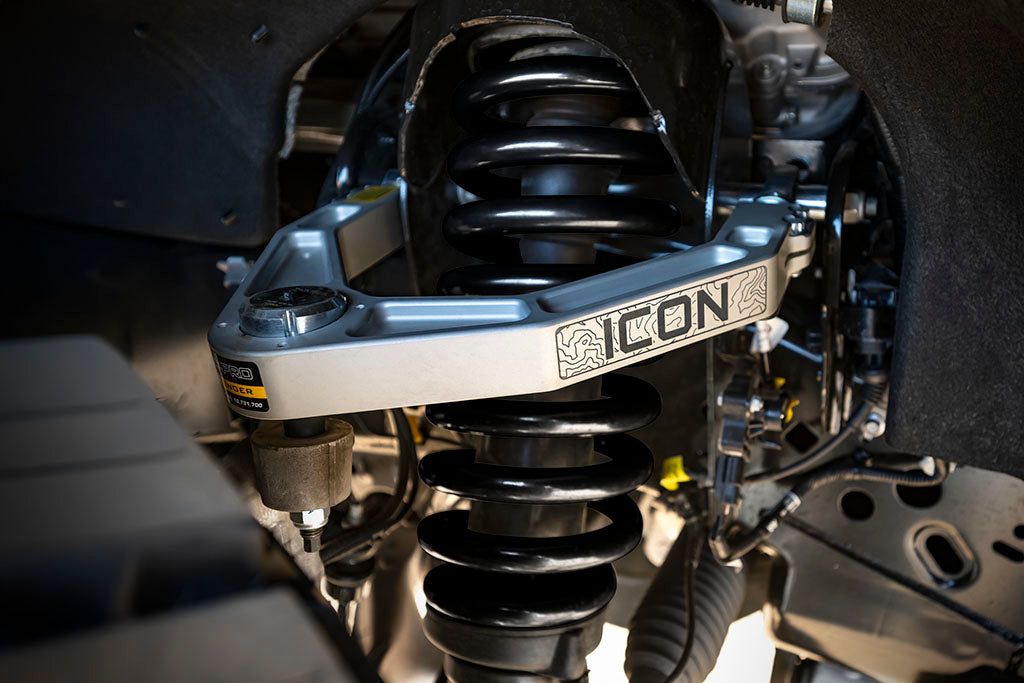

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel

Specifications

Fitment

• 2021-2026 Ford F-150

ICON fitment notes:

• Use Up To 35 (in) x 12.50 (in) Tires
• without 37 Performance Package
• Raises Front 2.25 (in)
• with Approximately 300 lbs Additional Weight Added to Rear of Vehicle
• Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
• Raises Rear 1 (in)
• 6 (mm) Offset Aftermarket Wheels Recommended
• Use Up To 37 (in) x 12.50 (in) Tires
• with 37 Performance Package
• Raises Front 2 (in)

ICON technical notes:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Tires (w/o 37 Package): 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Tires (w/ 37 Package): 37" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #180: Do not combine with coil spacers or damage may occur
• APPLICATION NOTE #181: Advertised lift height ranges are for a vehicle with approx 300lbs of additional weight in rear. Tncreasing or decreasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers.
• APPLICATION NOTE #682: Provides 2.25" of front lift over stock on F-150 Raptor
• APPLICATION NOTE #683: Provides 2" of front lift over stock on F-150 Raptor R

FAQs

Will it fit my vehicle?
ICON Vehicle Dynamics lists the vehicles shown in the Fitment section above. If you are unsure, email [email protected] before ordering and we will confirm fitment.
