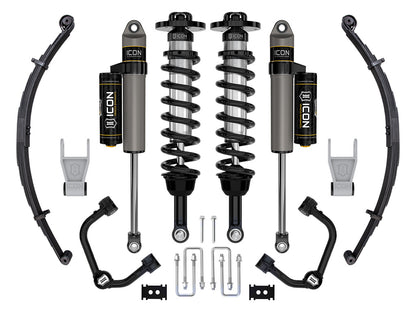

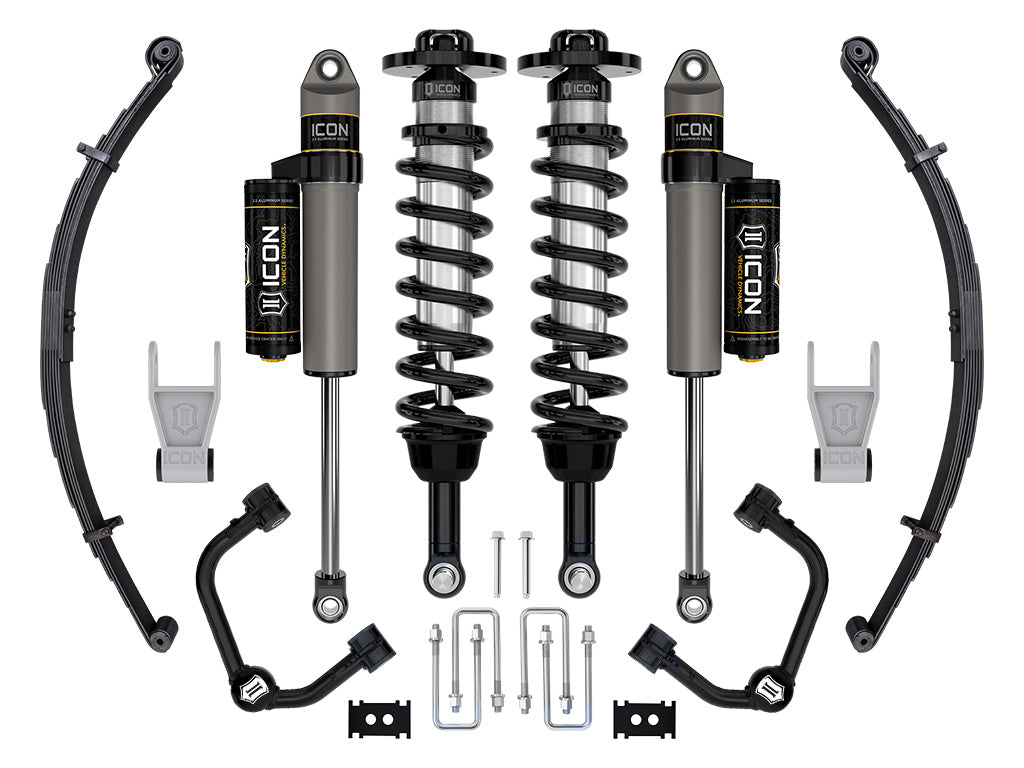

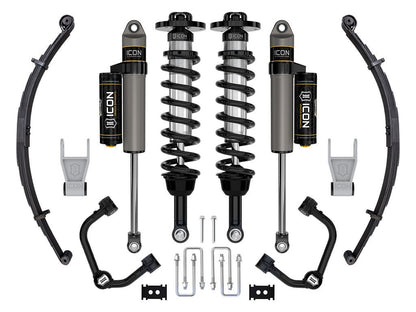

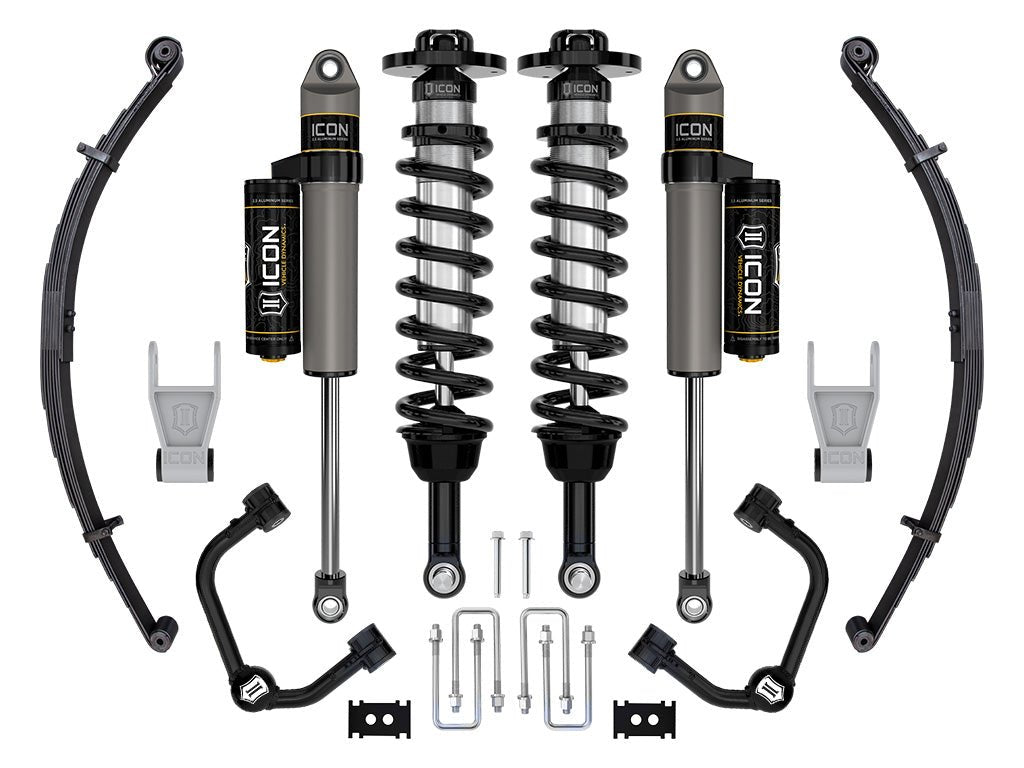

ICON Vehicle Dynamics 2021-2024 Ford F-150 Tremor suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks in a F-150 Tremor specific length for a 20% increase in front wheel travel over stock.
These coilovers feature internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2.5-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Tubular Delta Joint Pro upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range, increasing caster over stock and allow for the extra lift height this system provides.
ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation, balancing the performance of the truck from front to rear. ICON Multi-Rate Leaf Springs are included to allow rear spring rate and ride height customization, improve ride quality, and reduce axle wrap by eliminating the factory rear blocks. Rear ride height is kept within an acceptable range using the ICON billet aluminum 1" lowering shackles.
| Part Number | K93162TL |
| Brand | ICON Vehicle Dynamics |
| Product Type | Suspension Lift Kit |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Control Arm | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Coil Quantity Front | 2 |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 |
| Front Spring Rate Type | Linear |
| Maximum Lift Front | 3 |
| Maximum Lift Rear | 2.5 |
| Minimum Lift Front | 2.5 |
| Minimum Lift Rear | .5 |
| OEM Wheels & Tires Fitment | Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Rear Reservoir Style | Piggyback |
| Rear Shock Body Diameter | 2.5 |
| Rear Spring Rate Type | Variable |
| Recommended Aftermarket Tires | 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset |
Double-check your vehicle details before ordering. Questions? Email [email protected].
What vehicles does it fit?
It fits: Only compatible with 2021-2024 Ford F-150 Tremor; Only compatible with OE knuckles. DO NOT install in combination with ANY aftermarket knuckles; Not compatible with models equipped with BlueCruise. Double-check your vehicle details before ordering. Questions? Email [email protected].
