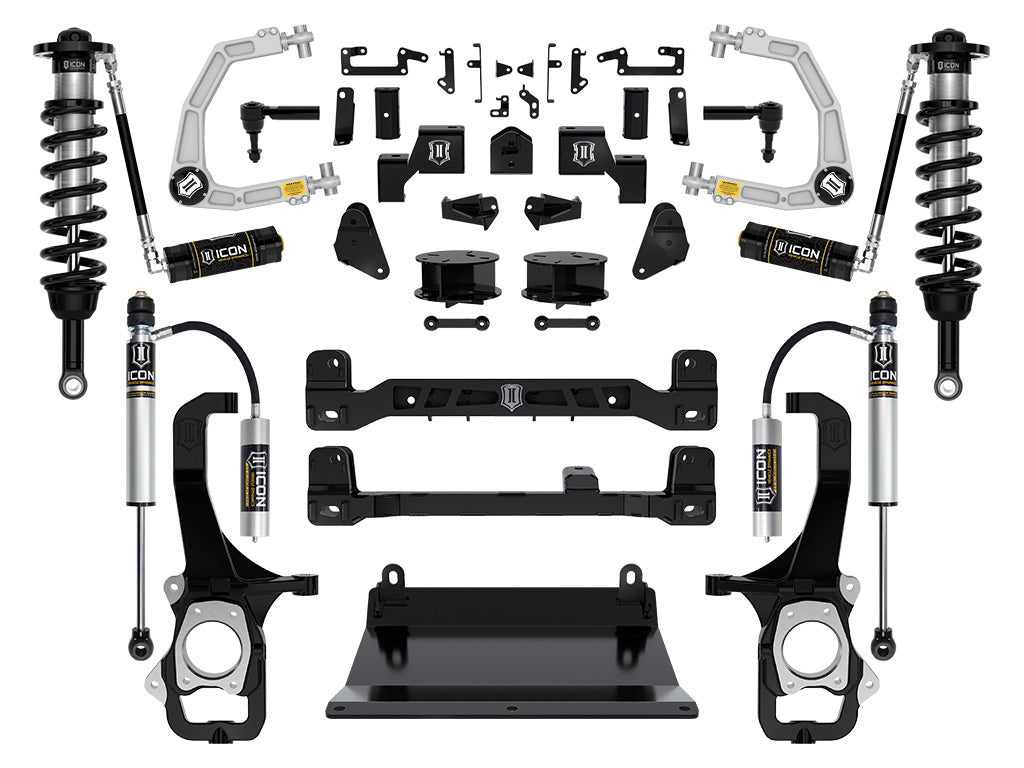

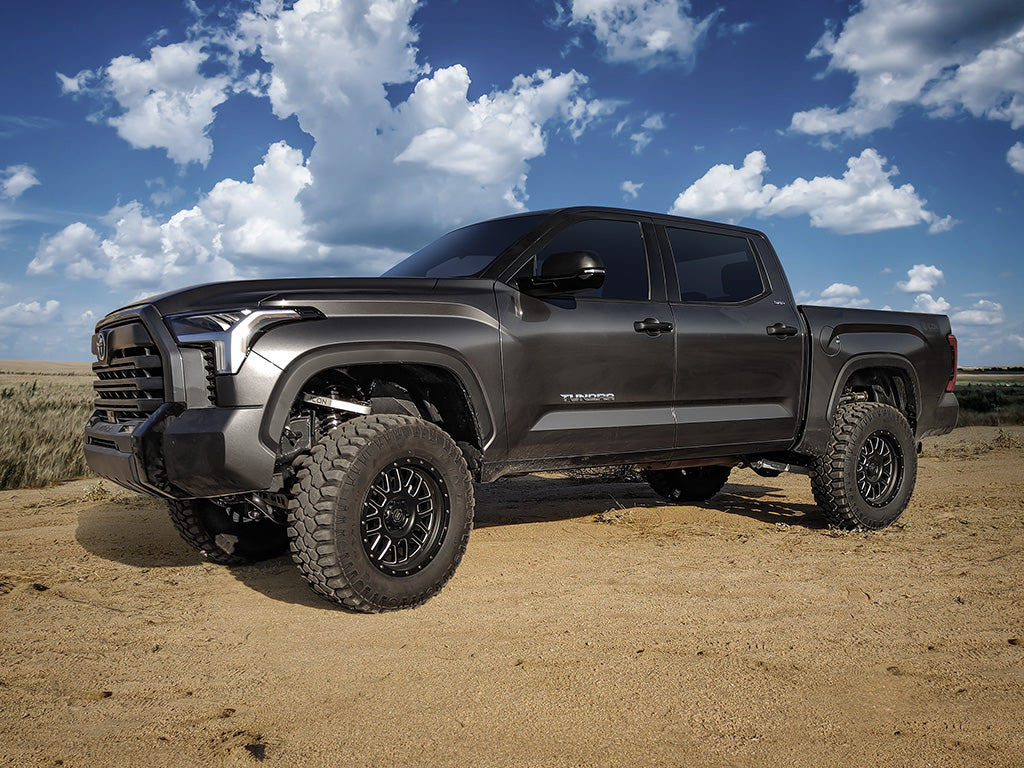

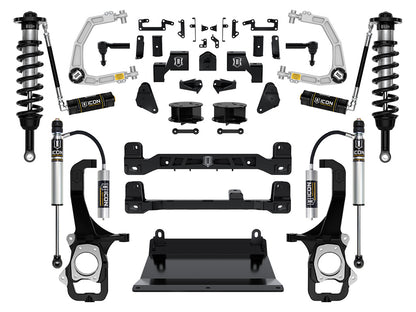

22-23 TOYOTA TUNDRA 6" STAGE 3 SUSPENSION SYSTEM BILLET UCA

ICON Vehicle Dynamics 2022-2026 Toyota Tundra, 6" Lift, Stage 3 Suspension System, Billet (K53273)

The ICON Vehicle Dynamics Stage 3 6" Suspension System delivers the ultimate balance of on-road comfort, off-road capability, and long-duration performance for the 2022-2026 Toyota Tundra. Vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs provide exceptional damping control while increasing fluid capacity and improving heat dissipation for consistent performance during aggressive off-road driving. The system increases front wheel travel by up to 40% over stock without overstressing OE suspension components and provides adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, preserving ground clearance while minimizing CV joint angles. Billet aluminum upper control arms featuring ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) deliver superior strength, exceptional durability, 90 degrees of total articulation, and on-vehicle caster and camber adjustment for precise alignment and optimum drivability. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.

High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate provide the durability and protection required for demanding off-road use. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. Completing the package are ICON 2.0 Aluminum Series rear shocks with remote reservoirs, providing a balanced rear suspension tune along with increased fluid volume and improved cooling to maintain consistent damping under sustained abuse, while the rear coil spring spacer kit retains the factory rear springs for a cost-effective lift solution. The result is a complete, vehicle-specific suspension system that delivers outstanding ride quality, confident handling, and uncompromising performance on any terrain.

Key Features

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets

Specifications

Fitment

• 2022-2026 Toyota Tundra

ICON fitment notes:

• Raises Front 4.5 (in) - 5.5 (in)
• Use Up To 37 (in) x 12.50 (in) Tires
• Cannot be Used with Any Wheel with a Diameter Less than 20 (in)
• Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
• Raises Rear 3 (in)
• 16 (mm) Offset Aftermarket Wheels Recommended
• Raises Front 5 (in) - 6 (in)
• without TRD Sport Package
• Raises Front 6 (in) - 7 (in)
• with TRD Sport Package
• Raises Front 3.25 (in) - 4.25 (in)

ICON technical notes:

• OEM Wheels & Tires Fitment: No
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #381: Requires minimum of 20" diameter wheels
• APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.

FAQs

Will it fit my vehicle?
ICON Vehicle Dynamics lists the vehicles shown in the Fitment section above. If you are unsure, email [email protected] before ordering and we will confirm fitment.
