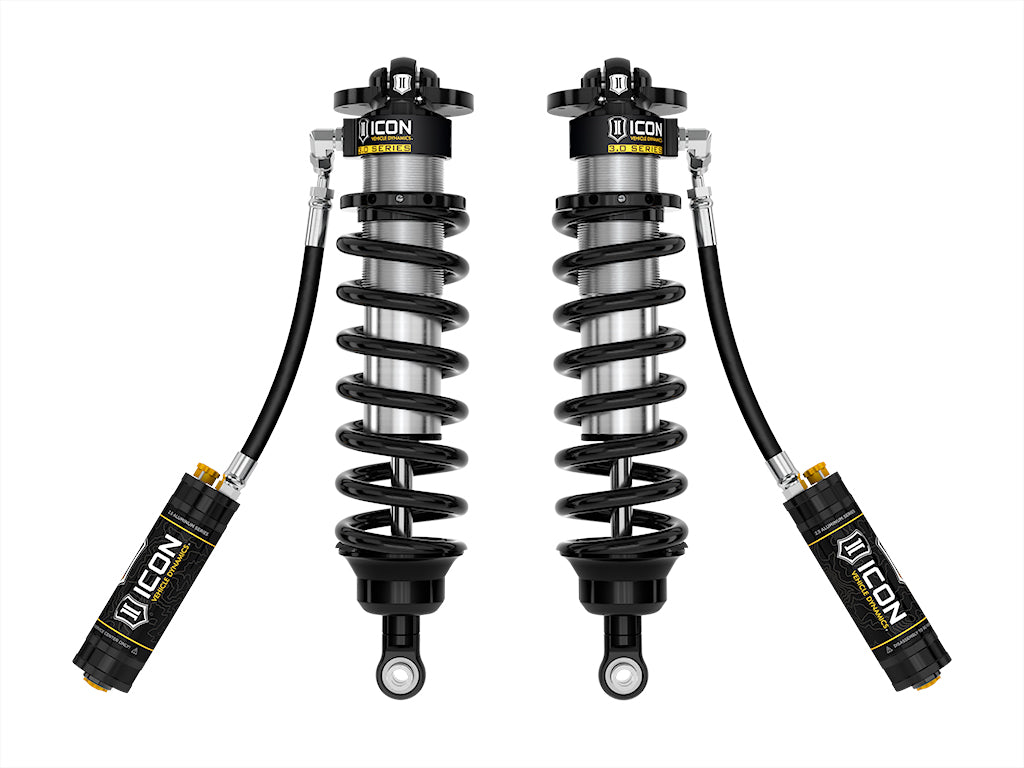

22-24 TUNDRA/23-24 SEQUOIA 3.0 VS RR CDCV COILOVER KIT

Name: 22-24 TUNDRA/23-24 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
Brand: ICON Vehicle Dynamics
SKU: 58775C
Price: 3530.62 USD
Availability: InStock

$3,530.62

✔ 30-day returns on unused items in original packaging. Details
✔ Manufacturer warranty: we help with claims
✔ Fitment question? Email [email protected]

Shipping: Ships from the manufacturer or distributor. Processing times vary by manufacturer; we'll email tracking as soon as your order ships.

Free shipping on orders $100+ to the contiguous U.S. (flat $12.99 under $100)

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

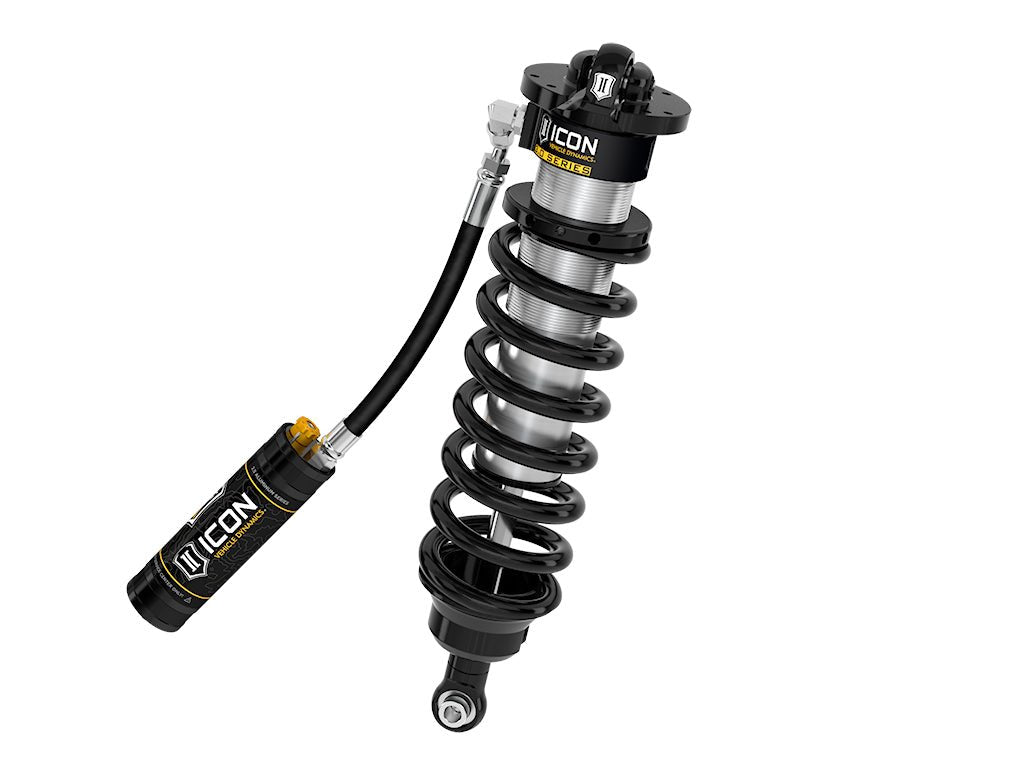

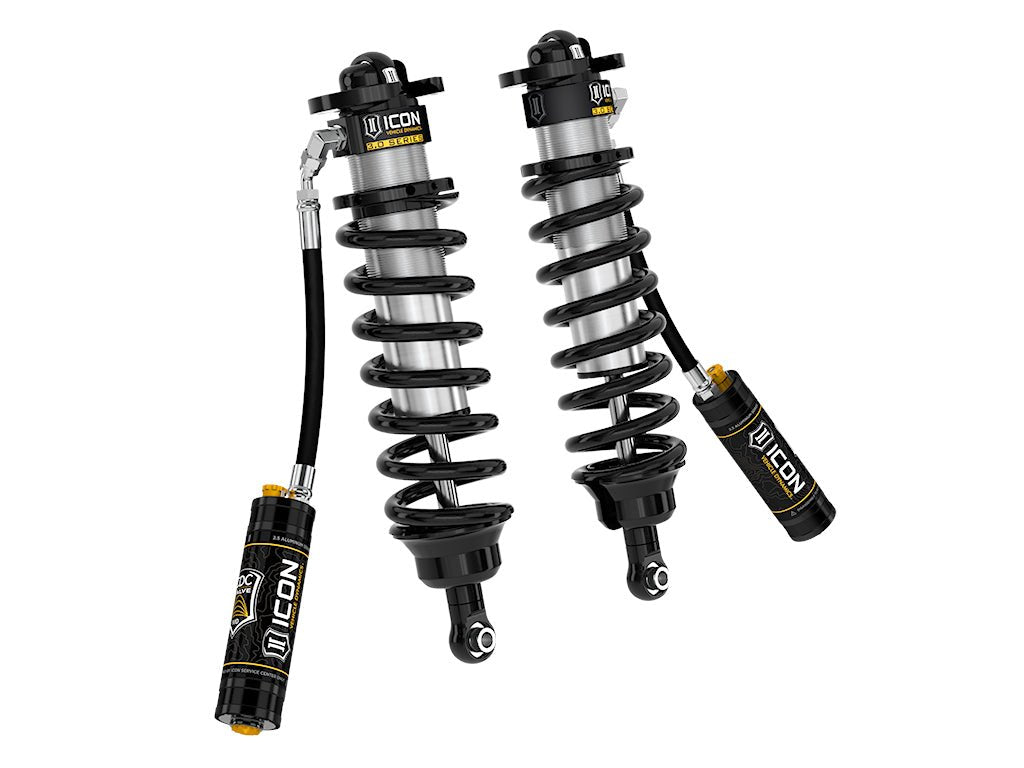

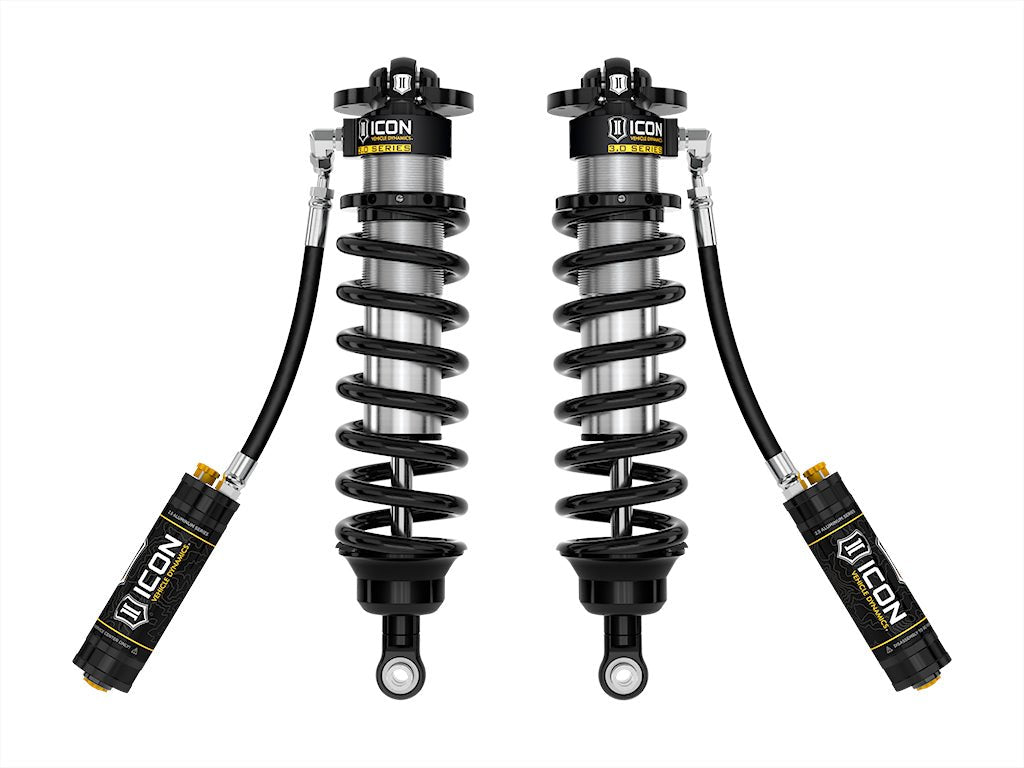

ICON's 3.0 Series Coilovers with CDCV for 2022-2024 Toyota Tundra and 2023-2024 Toyota Sequoia are designed to take the off-road capability of the trucks to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

Key Features

40% increase in front wheel travel over stock
Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
Vehicle specific design and tuning for superior shock damping and control
3.0” Body diameter for increased oil volume and larger piston area

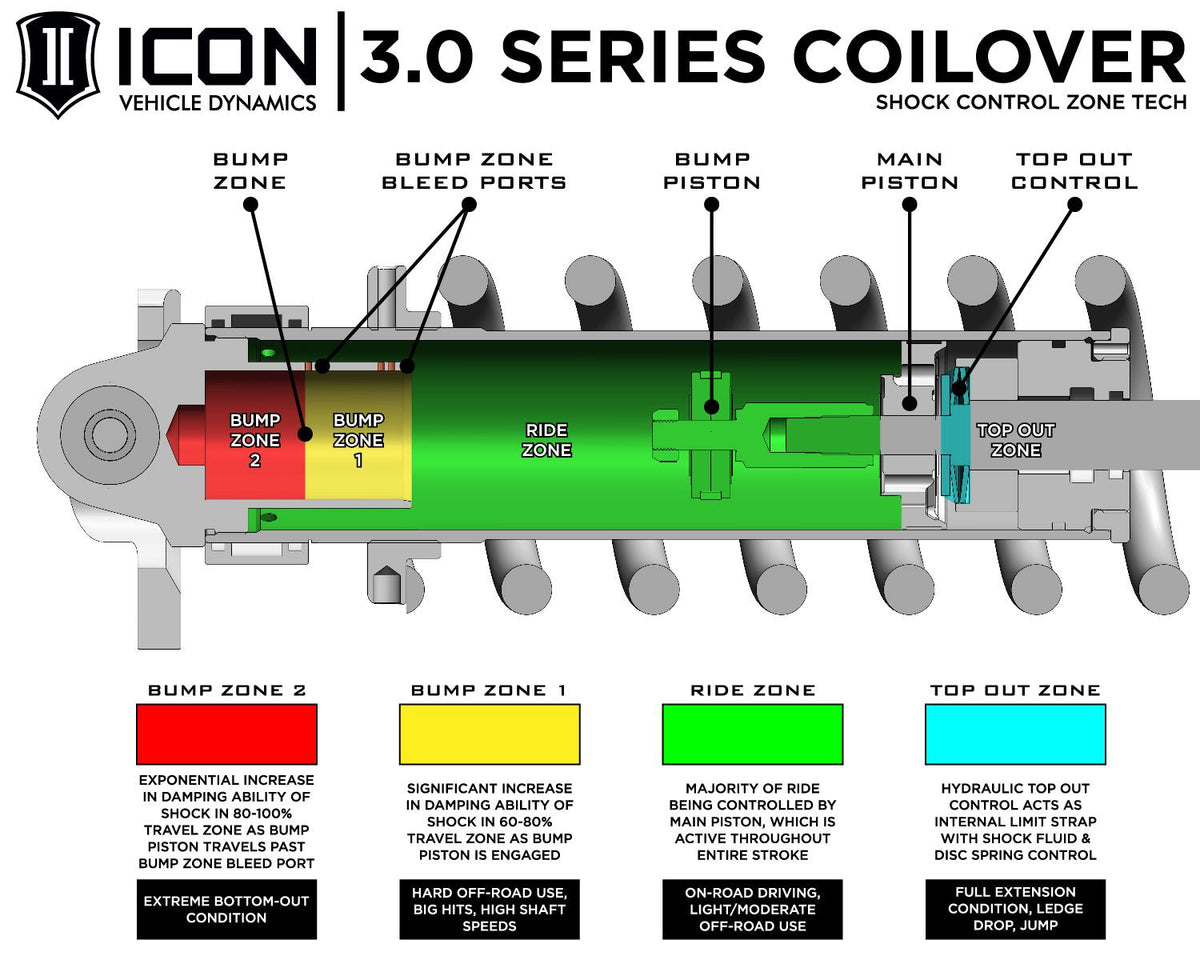

ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

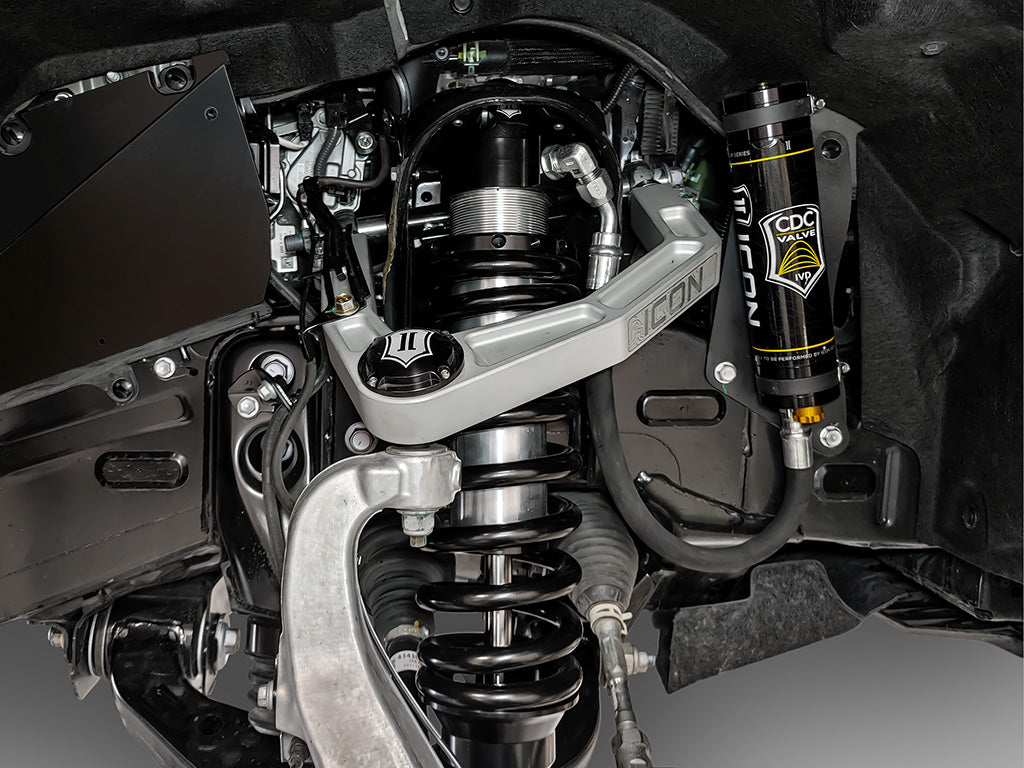

Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection
7/8” diameter induction hardened, chrome plated shock shafts
Fully Rebuildable and Re-tunable

Specifications

Part Number	58775C
Brand	ICON Vehicle Dynamics
Product Type	Coilover Spring and Shock Assembly
Adjustable	Yes
Coil Over Springs Included	Yes
Cylinder Color	Gray
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield	No
Material	Aluminum
Material	Steel
Maximum Lift	3.25
Shaft Diameter	0.875
Spring Color	Black
Spring Rate Type	Linear

Fitment

2023-2026 Toyota Sequoia
2023-2026 Toyota Sequoia 4WD
2023-2026 Toyota Sequoia RWD
2022-2026 Toyota Tundra
2022-2026 Toyota Tundra 4WD
2022-2026 Toyota Tundra RWD

ICON fitment notes:

Also Requires Part Number 55154 and Number 55156
Raises Front 3 (in) - 4.25 (in)
without TRD Off Road Package
without Adaptive Variable Suspension (AVS)
Up to 35x12.50 (in) Tire with Minor Fender Trimming
Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install
Also Requires Part Number 58461DJ or 58561DJ
25 (mm) Offset Aftermarket Wheels Recommended
Also Requires Part Number 55154 and Number 55164
Raises Front 1 (in) - 2.25 (in)
with TRD Off Road Package
Also Requires Part Number 55154

ICON technical notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" with 6.00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.
APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

FAQs

Will it fit my vehicle?
ICON Vehicle Dynamics lists the vehicles shown in the Fitment section above. If you are unsure, email [email protected] before ordering and we will confirm fitment.
