ICON Vehicle Dynamics

ICON 3-4.5" Lift Stage 6 Suspension System Tubular for 2023-2026 Toyota Sequoia

ICON 3-4.5" Lift Stage 6 Suspension System Tubular for 2023-2026 Toyota Sequoia


Regular price $4,033.28
Sale price $4,033.28 Regular price
Shipping calculated at checkout.

✔ Free shipping on $100+ (contiguous U.S.)  •  ✔ 30-day returns  •  ✔ Fitment help: 612-482-8159

🚚 This item ships free to the contiguous U.S. ($0 shipping at checkout). Sales tax is calculated at checkout from your address. Oversized or not sure about fitment? Call 612-482-8159.

Tracking: We'll email your tracking number as soon as your order ships.

🔒 Secure checkout: Shop Pay, Apple Pay, Google Pay and major cards
✔ 30-day returns on unused items in original packaging. Details
✔ Manufacturer warranty: we help with claims
✔ Fitment question? Call 612-482-8159 or email info@ventureoverlandcompany.com


ICON Vehicle Dynamics 23-26 SEQUOIA 3-4.5" LIFT STAGE 6 SUSPENSION SYSTEM TUBULAR

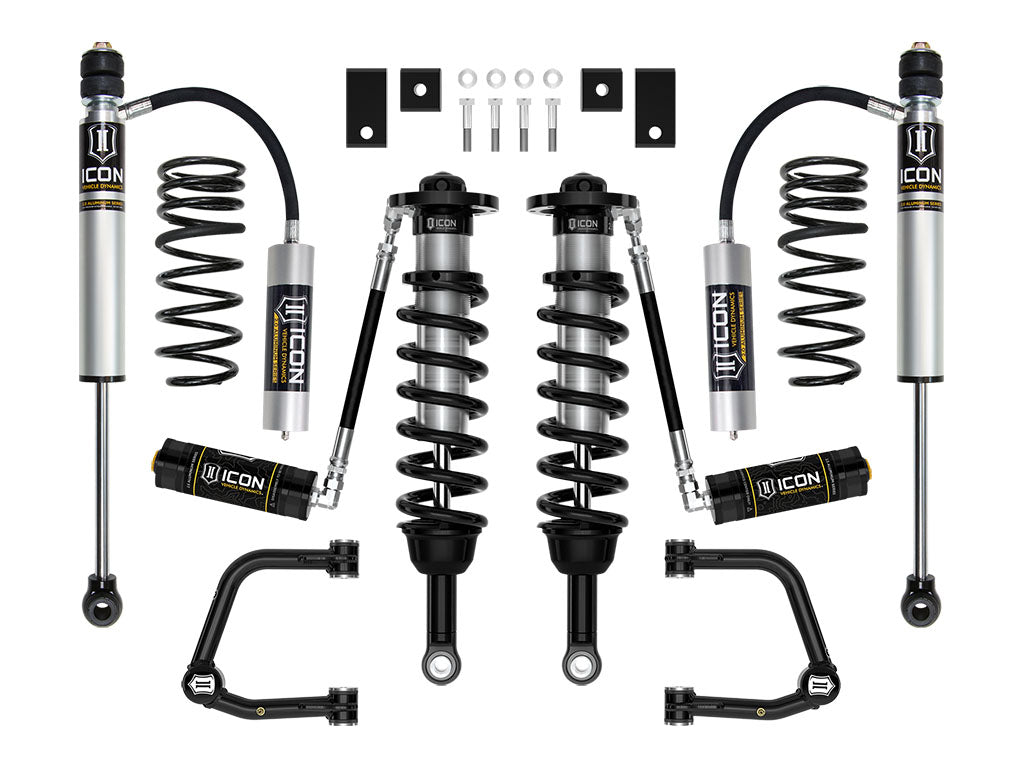

The ICON Vehicle Dynamics Stage 6 complete suspension system for the 2023-2026 Toyota Sequoia builds upon the Stage 5 system with the upgrade of the 2.5 Series front coilovers to remote reservoir versions. This system offers improved on- and off-road performance, with greater front and rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the remote reservoir coilover shock and tubular steel upper control arm combo, a sway bar drop kit for the front of the truck is included along with our dual rate coil springs and proven 2.0 nitrogen charged monotube shocks with remote reservoirs for the rear.

Key Features

  • Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
  • 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • Vehicle specific design for 2023-2026 Toyota Sequoia
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Adjustable front ride heights from 3-4.5” of front lift over stock
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components

Specifications

Part Number K53236T
Brand ICON Vehicle Dynamics
Product Type Suspension Lift Kit
Adjustable Compression No
Adjustable Control Arm No
Adjustable Damping No
Adjustable Rebound No
Coil Quantity Front 2
Front Reservoir Style Remote
Front Shock Body Diameter 2.5
Front Spring Rate Type Linear
Maximum Lift Front 4.5
Maximum Lift Rear 2
Minimum Lift Front 3
OEM Wheels & Tires Fitment Yes
Rear Reservoir Style Remote
Rear Shock Body Diameter 2
Rear Spring Rate Type Progressive Dual Rate
Recommended Aftermarket Tires 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Reservoir Style Remote
Active or Passive Suspension Passive
