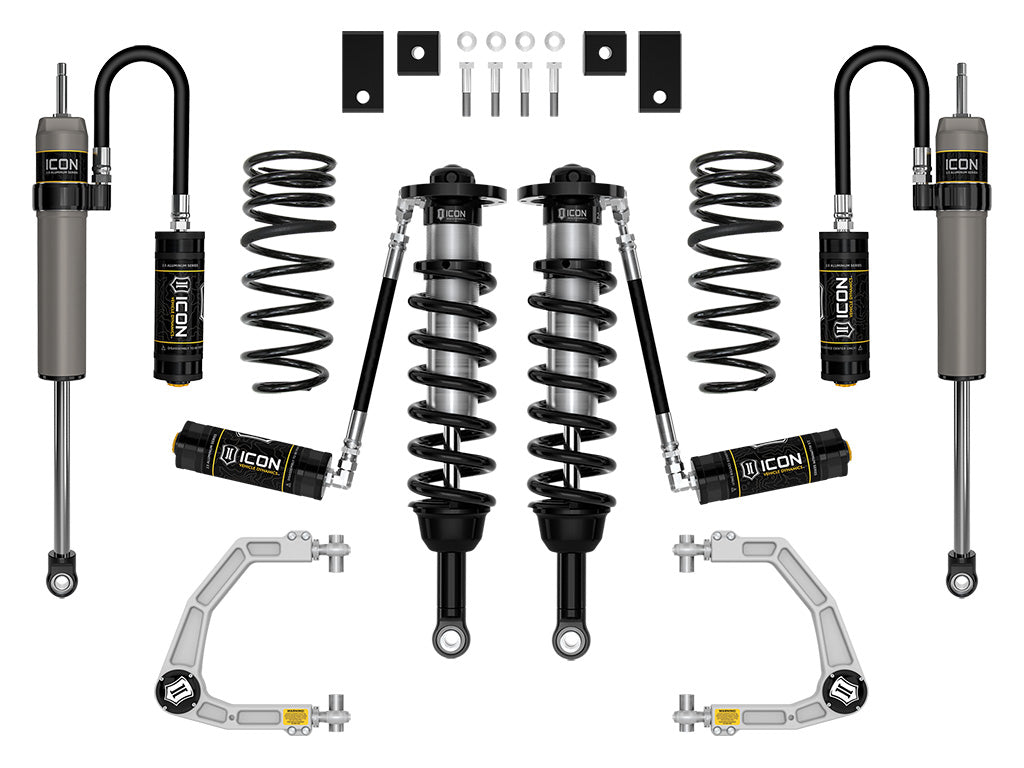

ICON Vehicle Dynamics 23-26 SEQUOIA 3-4.5" LIFT STAGE 7 SUSPENSION SYSTEM BILLET
The ICON Vehicle Dynamics Stage 7 complete suspension system for the 2023-2026 Toyota Sequoia builds upon the Stage 6 system with the upgrade of the rear shocks to 2.5 Aluminum Series shocks with remote reservoirs. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.
To compliment the 2.5 Aluminum Series remote reservoir rear shocks, dual rate rear coils are included with a 2.5 Series remote reservoir front coilover shock and billet front upper control arm combo and a front sway bar drop kit.
Key Features
- Vehicle specific design for 2023-2026 Toyota Sequoia
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 3-4.5” of front lift over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
Specifications
| Part Number |
K53237 |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Suspension Lift Kit |
| Active or Passive Suspension |
Passive |
| Adjustable Compression |
No |
| Adjustable Control Arm |
Yes |
| Adjustable Damping |
No |
| Adjustable Rebound |
No |
| Coil Quantity Front |
2 |
| Front Reservoir Style |
Remote |
| Front Shock Body Diameter |
2.5 |
| Front Spring Rate Type |
Linear |
| Maximum Lift Front |
4.5 |
| Maximum Lift Rear |
2 |
| Minimum Lift Front |
3 |
| OEM Wheels & Tires Fitment |
Yes |
| Rear Reservoir Style |
Remote |
| Rear Shock Body Diameter |
2.5 |
| Rear Spring Rate Type |
Progressive Dual Rate |
| Recommended Aftermarket Tires |
35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Reservoir Style |
Remote |
