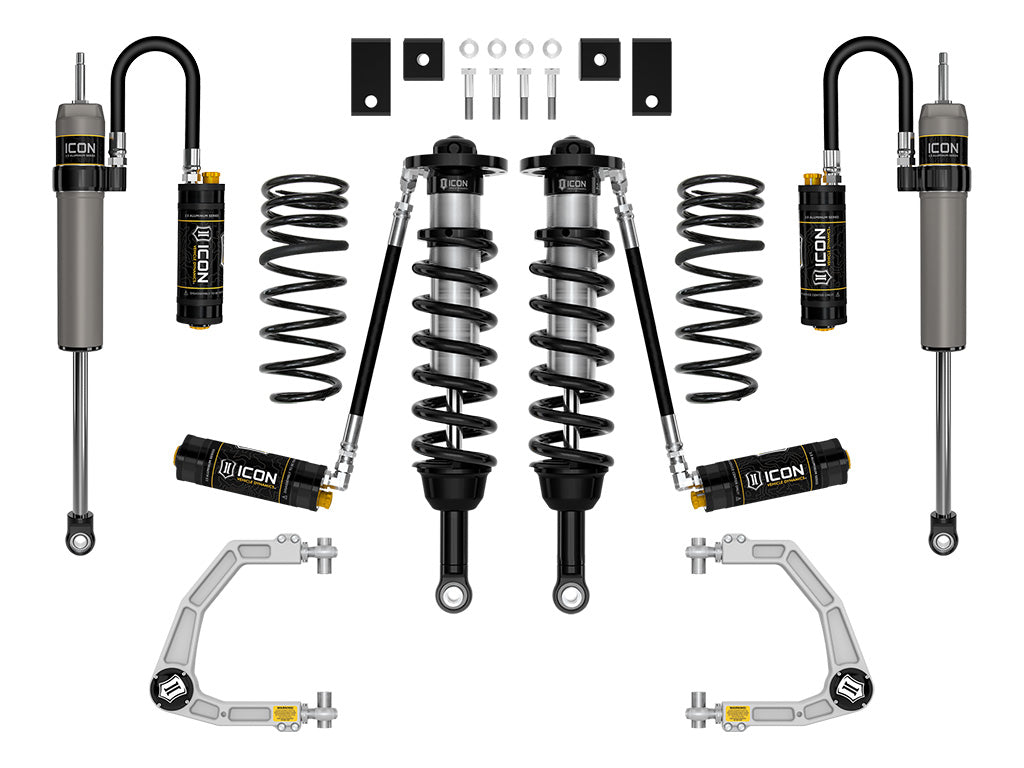

ICON Vehicle Dynamics 23-26 SEQUOIA 3-4.5" LIFT STAGE 9 SUSPENSION SYSTEM BILLET CDCV
Rounding out the Stage 9 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2026 Toyota Sequoia. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
Key Features
- Vehicle specific design for 2023-2026 Toyota Sequoia
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 3-4.5” of front lift over stock
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
Specifications
| Part Number |
K53239 |
| Brand |
ICON Vehicle Dynamics |
| Product Type |
Suspension Lift Kit |
| Active or Passive Suspension |
Passive |
| Adjustable Compression |
Yes |
| Adjustable Control Arm |
Yes |
| Adjustable Damping |
Yes |
| Adjustable Rebound |
No |
| Coil Quantity Front |
2 |
| Damping Adjustment Type |
Manual |
| Front Reservoir Style |
Remote |
| Front Shock Body Diameter |
2.5 |
| Front Spring Rate Type |
Linear |
| Maximum Lift Front |
4.5 |
| Maximum Lift Rear |
2 |
| Minimum Lift Front |
3 |
| OEM Wheels & Tires Fitment |
Yes |
| Rear Reservoir Style |
Remote |
| Rear Shock Body Diameter |
2.5 |
| Rear Spring Rate Type |
Progressive Dual Rate |
| Recommended Aftermarket Tires |
35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels |
ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Recommended Aftermarket Wheels |
ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Reservoir Style |
Remote |
