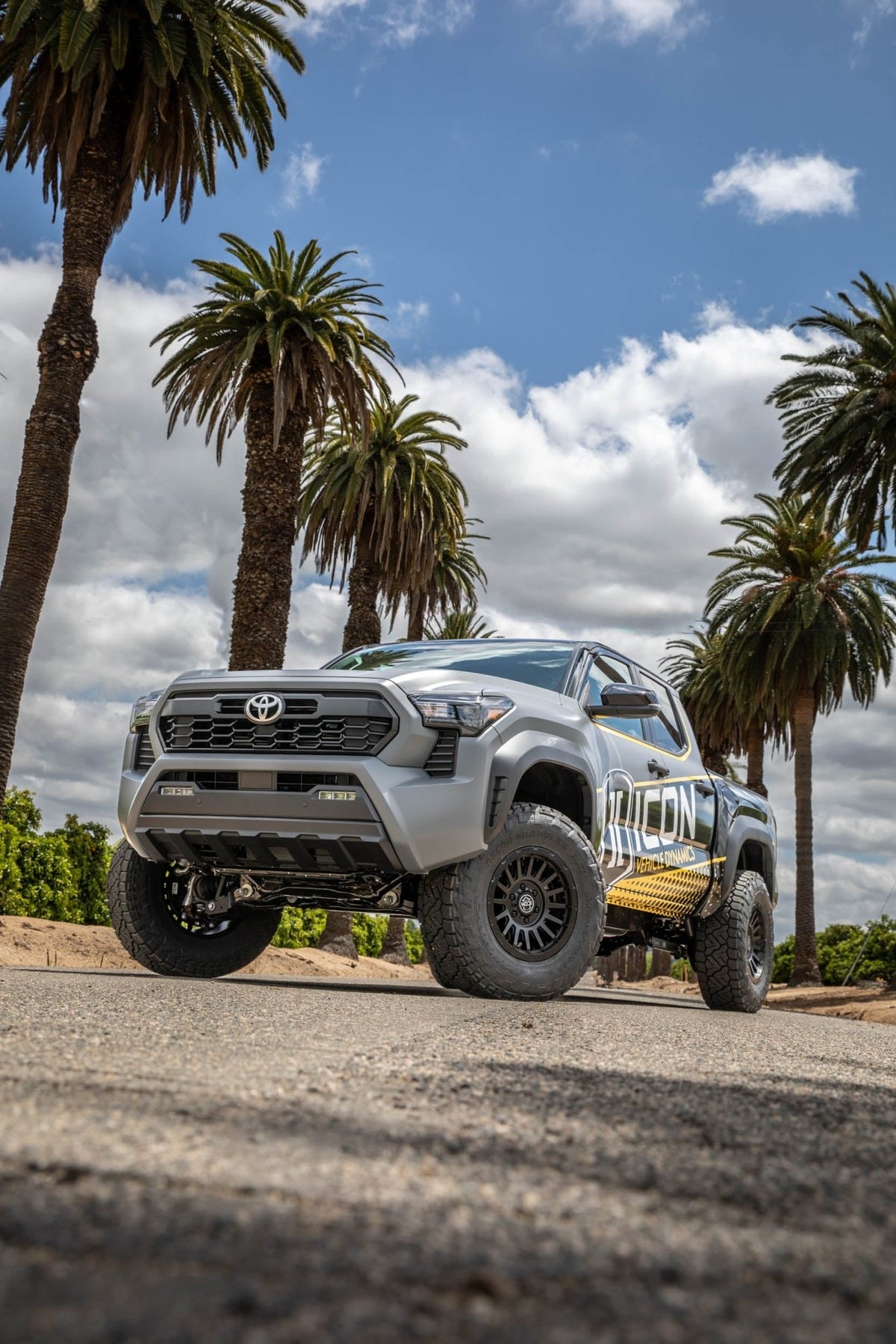

24 TACOMA 1.25-3" STAGE 7 SUSPENSION SYSTEM BILLET

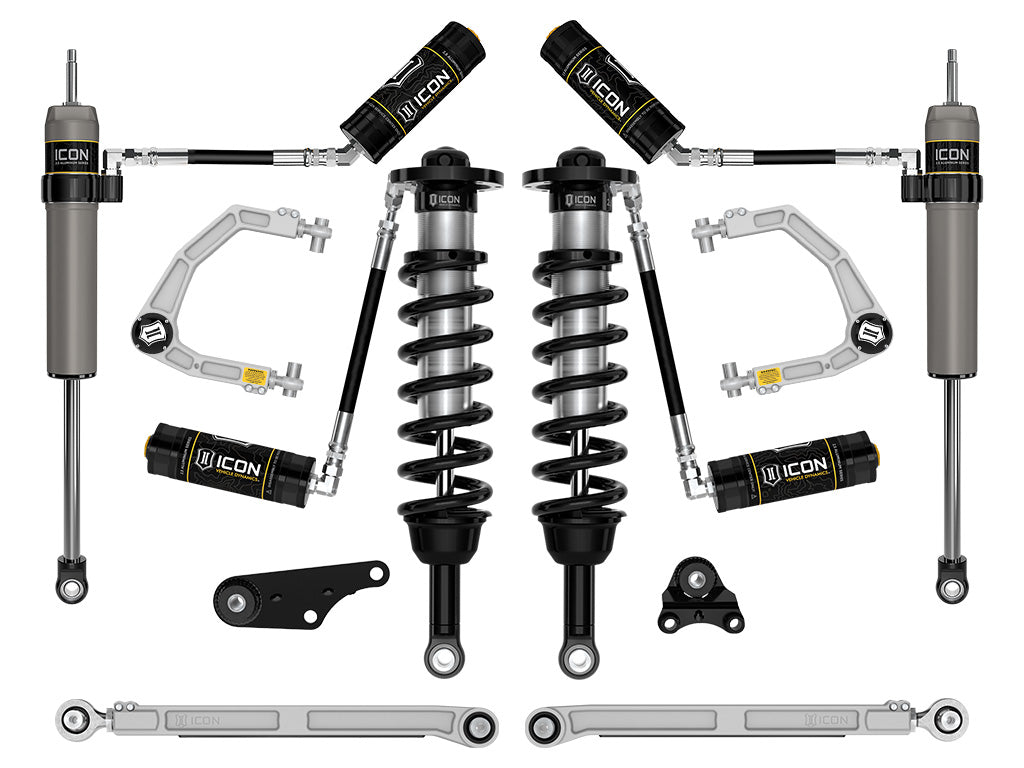

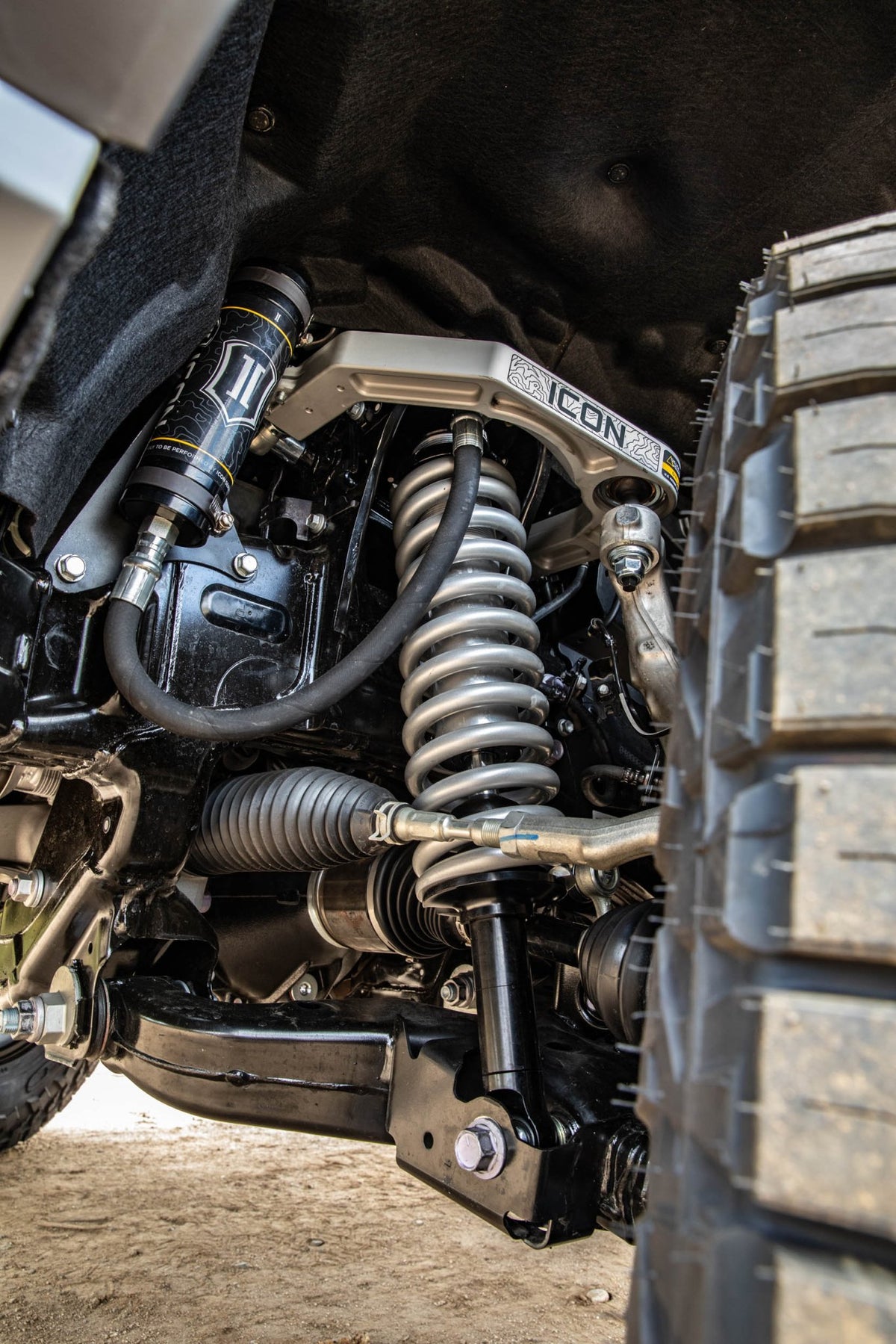

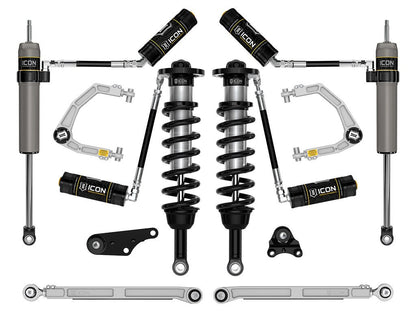

ICON Vehicle Dynamics 2024 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 7 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.

Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind.

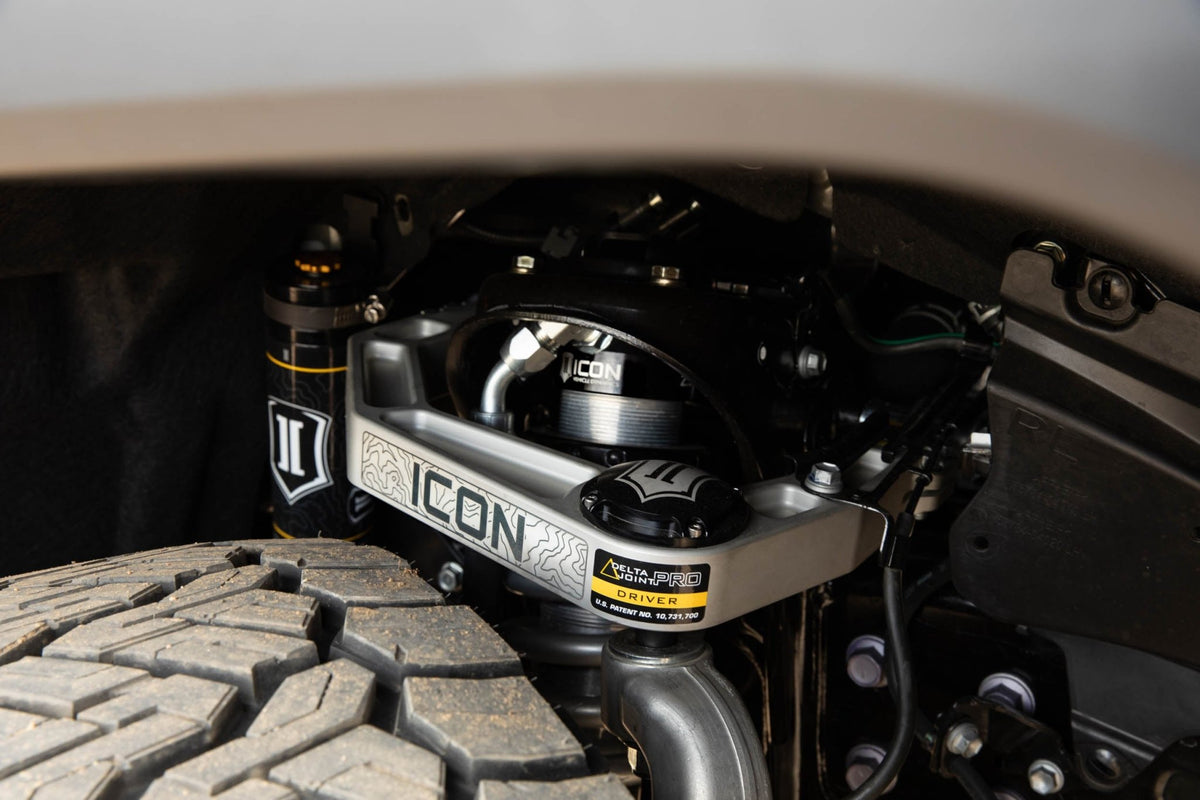

Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.

Key Features

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• ICON engineered coil springs
• FK Rod End bearings for extended longevity and minimal deflection

Specifications

Fitment

• Included rear shocks are compatible with 0-1" of rear lift over stock

Double-check your vehicle details before ordering. Questions? Email [email protected].

FAQs

What vehicles does it fit?
It fits: Included rear shocks are compatible with 0-1" of rear lift over stock. Double-check your vehicle details before ordering. Questions? Email [email protected].
