ICON Vehicle Dynamics

ICON 1.25-3" Lift Stage 8 Suspension System Tubular for 2024-2026 Toyota Tacoma

ICON 1.25-3" Lift Stage 8 Suspension System Tubular for 2024-2026 Toyota Tacoma


Regular price $5,644.73
Sale price $5,644.73 Regular price
Shipping calculated at checkout.

✔ Free shipping on $100+ (contiguous U.S.)  •  ✔ 30-day returns  •  ✔ Fitment help: 612-482-8159

🚚 This item ships free to the contiguous U.S. ($0 shipping at checkout). Sales tax is calculated at checkout from your address. Oversized or not sure about fitment? Call 612-482-8159.

Tracking: We'll email your tracking number as soon as your order ships.

🔒 Secure checkout: Shop Pay, Apple Pay, Google Pay and major cards
✔ 30-day returns on unused items in original packaging. Details
✔ Manufacturer warranty: we help with claims
✔ Fitment question? Call 612-482-8159 or email info@ventureoverlandcompany.com

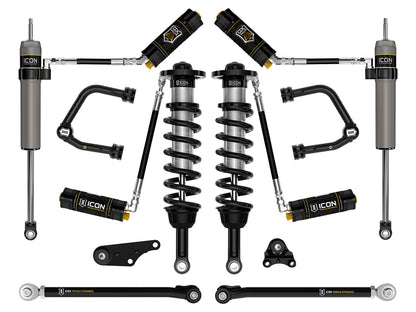

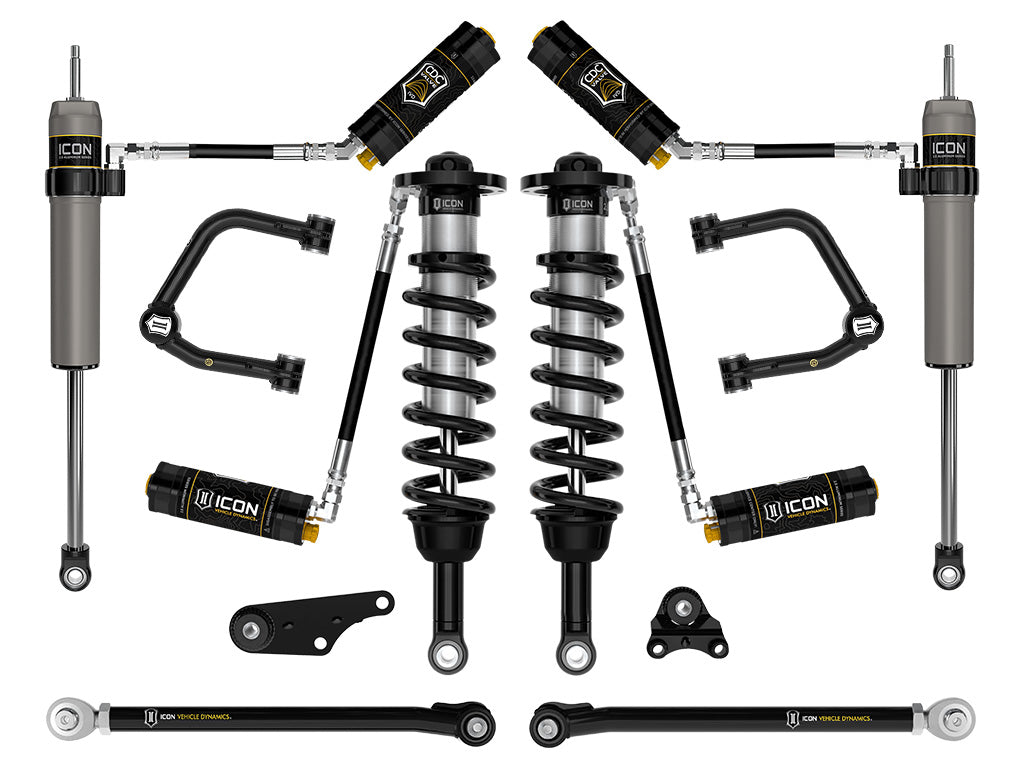

ICON Vehicle Dynamics 24-26 TACOMA 1.25-3" LIFT STAGE 8 SUSPENSION SYSTEM TUBULAR

ICON Vehicle Dynamics 2024-2026 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 8 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.

Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.

The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

Key Features

  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Increased wheel travel and improved ride quality over stock
  • Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
  • Adjustable coilovers provide 1.25-3" front lift height over stock
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • ICON engineered coil springs

Specifications

Part Number K53298T
Brand ICON Vehicle Dynamics
Product Type Suspension Lift Kit
Rear Reservoir Style Remote
Rear Shock Body Diameter 2.5
Recommended Aftermarket Tires 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Active or Passive Suspension Passive
Recommended Aftermarket Wheels ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Adjustable Compression Yes
Adjustable Control Arm Yes
Adjustable Damping Yes
Adjustable Rebound No
Coil Quantity Front 2
Damping Adjustment Type Manual
Front Reservoir Style Remote
Front Shock Body Diameter 2.5
Front Spring Rate Type Linear
Maximum Lift Front 3
Minimum Lift Front 1.25
OEM Wheels & Tires Fitment Yes

Fitment

  • Included rear shocks are compatible with 0-1" of rear lift over stock

Double-check your vehicle details before ordering. Questions? Email info@ventureoverlandcompany.com.
