95.5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM

Many in stock
$2,344.80
95.5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM   ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance...
$2,344.80

customers are viewing this product
95.5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM

95.5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM



ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5" coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle "feel" through the range of travel. These coilovers are also height adjustable from 0-3" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

FEATURES & BENEFITS

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable remote reservoir  coilovers from 0-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" hardened chrome shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 aluminum body rear remote reservoir shock with 5/8" polished chrome plated steel shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Ships in Multiple Boxes

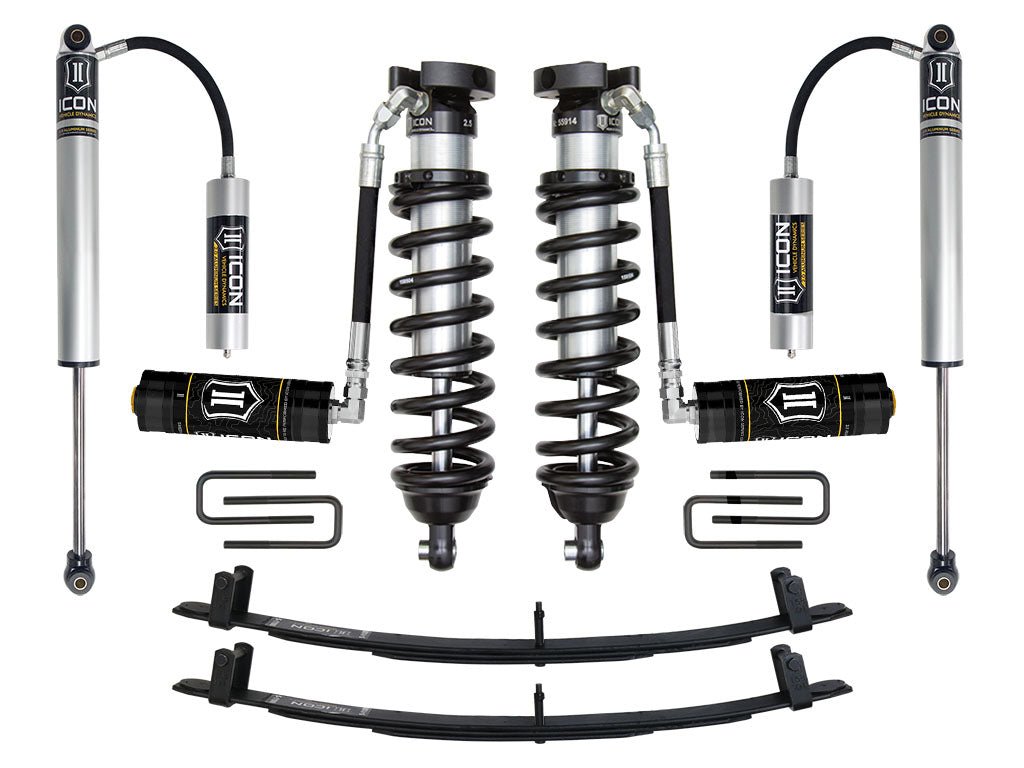

SYSTEM COMPONENTS:



  • 51100 (QTY: 1) | 96-UP TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
  • 56502R (QTY: 2) | 96-04 TACOMA 4WD 0-1.5" REAR 2.0 VS RR
  • 58710 (QTY: 1) | 96-04 TACOMA 2.5 VS RR COILOVER KIT
