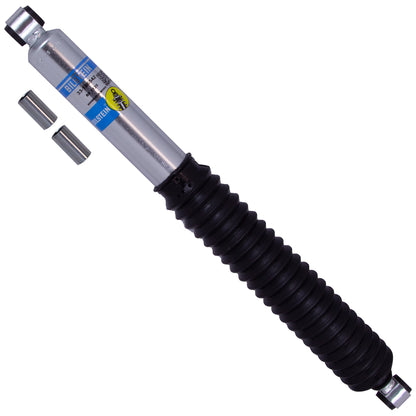

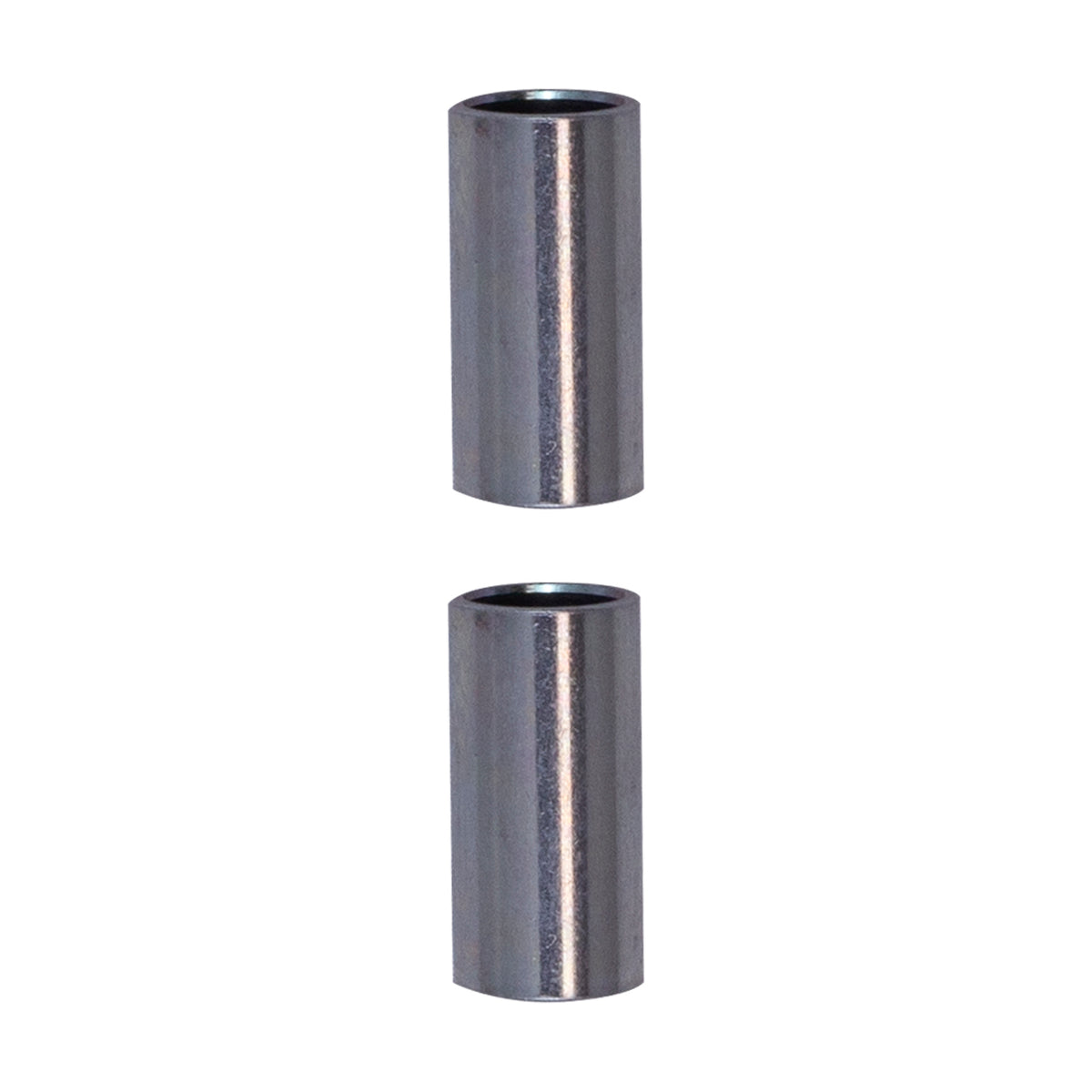

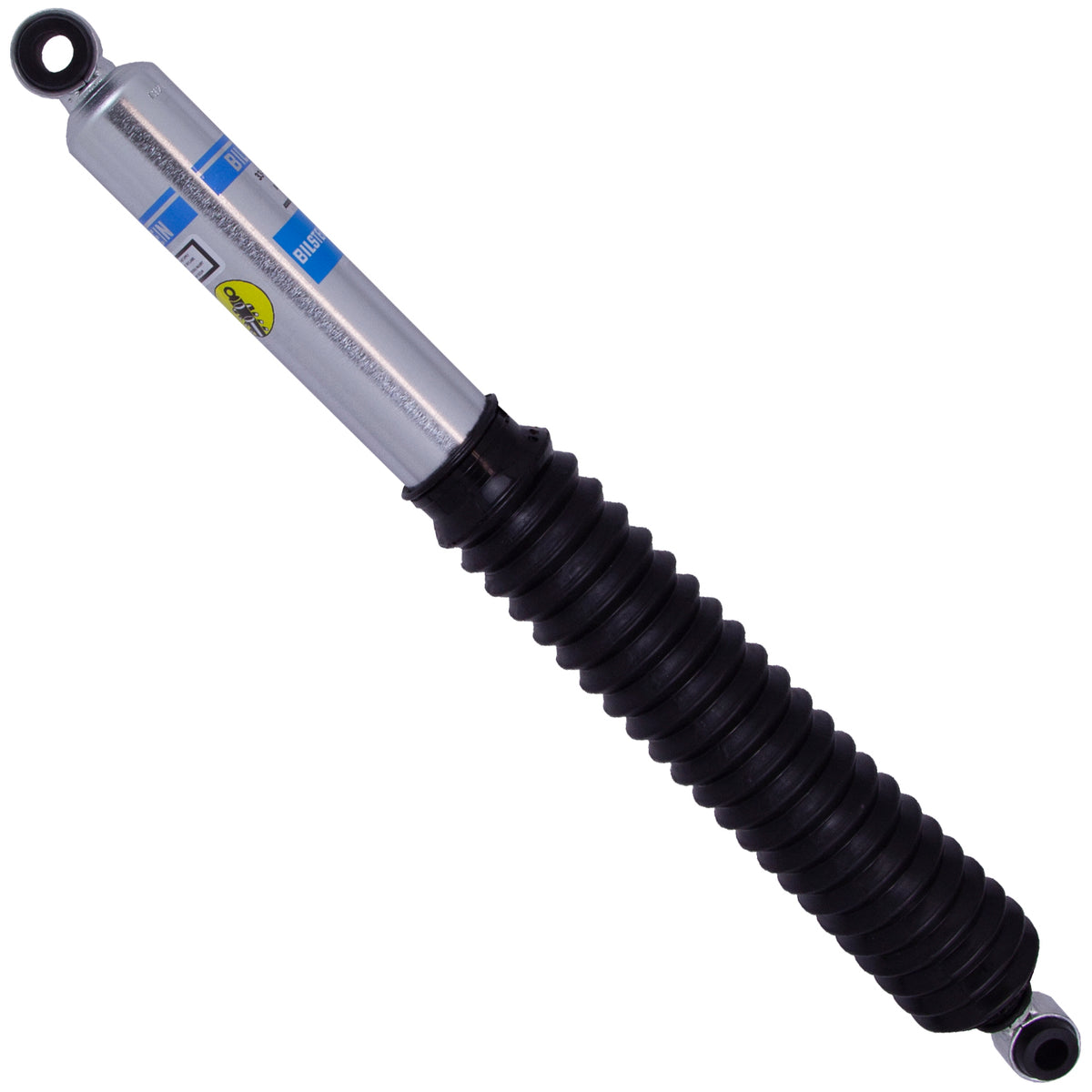

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Key Features
- Monotube design with a 46mm piston
- Body: Smooth Body (Non-Coilover)
- Zinc Plated finish
- Collapsed length 15.12 in, extended length 24.34 in, 9.22 in of travel
- Upper mount: Eye 5/8in; lower mount: Eye 5/8in
- Reservoir: No
- Damping: Non-Adjustable
- Boot included: Black Bellows
Specifications
| Part Number |
33-186542 |
| Brand |
Bilstein |
| Series |
B8 5125 |
| Collapsed Length (in) |
15.12 |
| Extended Length (in) |
24.34 |
| Stroke/travel Length (in) |
9.22 |
| Compression @0.52m/s |
620 |
| Rebound @0.52m/s |
2495 |
| Lower Mount Type |
Eye 5/8in |
| Upper Mount Type |
Eye 5/8in |
| Mount Type |
Eye-to-Eye |
| Internal Design |
Monotube |
| Finish |
Zinc Plated |
| Reservoir |
No |
| Body Design |
Smooth Body (Non-Coilover) |
| Body Diameter (od) |
2.0 in. |
| Piston Diameter |
46mm |
| Boot Included |
Black Bellows |
| Replacement Mounting Kit |
B4-KT1-Z254A00 |
| Spring Seat Included |
No |
| Shaft Diameter |
14mm |
| Valving Type |
Medium |
| Adjustable Damping |
Non-Adjustable |
| Country of Origin |
MX |
| Quantity per Vehicle |
2 |
| Sold As |
Each (priced per shock) |
Fitment
- 1966-1977 Ford Bronco - Rear - Fits Vehicles With 2-4" Rear Lift
- 1959-1975 Jeep CJ5 - Front - Fits Vehicles With 3-4" Front Lift
- 1959-1975 Jeep CJ5 - Rear - Fits Vehicles With 2-4" Rear Lift
- 1976-1983 Jeep CJ5 - Rear - Fits Vehicles With 3-4" Rear Lift
- 1966-1968 Jeep CJ5A - Front - Fits Vehicles With 3-4" Front Lift
- 1966-1968 Jeep CJ5A - Rear - Fits Vehicles With 2-4" Rear Lift
- 1976-1986 Jeep CJ7 - Rear - Fits Vehicles With 3-4" Rear Lift
- 1981-1983 Jeep Cherokee - Front - Fits Vehicles With 3-4" Front Lift
- 1981-1983 Jeep Cherokee - Rear - Fits Vehicles With 3-4" Rear Lift
- 1984-1991 Jeep Grand Wagoneer - Front - Fits Vehicles With 3-4" Front Lift
- 1984-1991 Jeep Grand Wagoneer - Rear - Fits Vehicles With 3-4" Rear Lift
- 1981-1988 Jeep J10 - Front - Fits Vehicles With 3-4" Front Lift
- 1981-1988 Jeep J10 - Rear - Fits Vehicles With 3-4" Rear Lift
- 1981-1988 Jeep J20 - Front - Fits Vehicles With 3-4" Front Lift
- 1981-1988 Jeep J20 - Rear - Fits Vehicles With 3-4" Rear Lift
- 1979-1983 Toyota Pickup 4WD - Rear - Fits Vehicles With 3" Rear Lift
Double-check your vehicle, position and lift height before ordering. Questions? Email info@ventureoverlandcompany.com.
FAQs
What vehicles does it fit?
It fits: 1966-1977 Ford Bronco - Rear - Fits Vehicles With 2-4" Rear Lift; 1959-1975 Jeep CJ5 - Front - Fits Vehicles With 3-4" Front Lift; 1959-1975 Jeep CJ5 - Rear - Fits Vehicles With 2-4" Rear Lift; and more listed above. Check your vehicle, position and lift height against the Fitment list. Questions? Email info@ventureoverlandcompany.com.
Is it sold individually?
Yes. Bilstein prices and sells it per shock (each).
