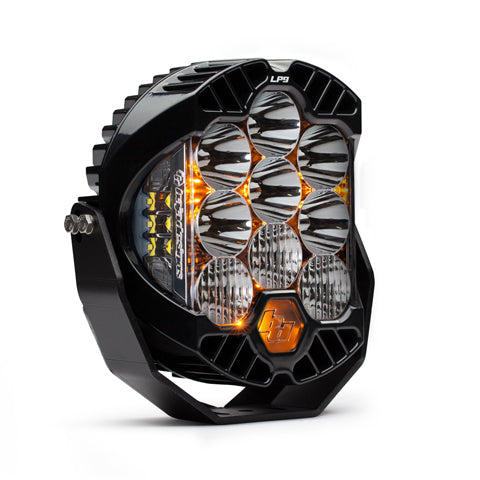

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using our proprietary Direct Ducted Cooling (DDC) technology, which allows air to travel from the front of the housing and over the rear heat sinks drastically improving cooling capacity and performance. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
| Part Number | 320003 |
| Product | LP9 Pro LED Light Pod |
| Quantity | 1 |
| Brightness (lumens) | 12547 |
| Wattage (W) | 124.200 |
| Amperage Rating (A) | 9 |
| LEDs | 9 |
| LED Type | LED |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Bezel Material | Powder Coat Cast Aluminum |
| Rated LED Life (hr) | 49,930 |
| Dimensions (L x H x D) | 8 in x 8 in x 3.250 in |
| Weight (lbs.) | 6.500 |
| Wiring Harness Included | No |
| Mounting Hardware Included | Yes |
| Terminal Connector | DT06-4S Deutsch |
| Configuration | Driving/Combo; Clear |
Is a wiring harness included?
No, a wiring harness is not included. Check Baja Designs' compatible harness options before ordering.
Is it waterproof?
Baja Designs rates it IP69K (Waterproof up to 9ft & Pressure Washable).
Is it vehicle-specific?
No. Baja Designs lists it as a universal-fit product.
What warranty does it have?
Baja Designs includes a 30-day satisfaction guarantee and a limited lifetime warranty.
