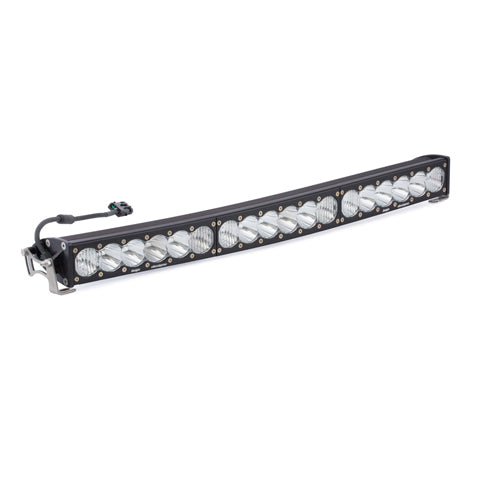

Performance meets precision. The OnX6+ Arc Light Bar from Baja Designs is the most elite generation of the OnX6 series — a curved LED light bar engineered to deliver serious output without sacrificing style. Built with high-speed spot reflectors, this universal LED light bar pushes versatility and performance further than any light bar before it.
Our Next-generation LEDs provide 37% more distance and run up to 50,000 hours, so you're covered for the long haul. Every LED is tuned to 5000K — Daylight color temperature that mimics natural sunlight, improving trail recognition and cutting eye fatigue on long runs.
| Part Number | 523003 |
| Product | OnX6+ 30 Inch Arc LED Light Bar |
| Quantity | 1 |
| Brightness (lumens) | 32,070 (High); 25,610 (Low) |
| Wattage (W) | 278 (High); 222 (Low) |
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
| LEDs | 18 |
| LED Type | LED |
| Beam Pattern | Driving/Combo |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Bezel Material | Billet Machined Aluminum |
| Rated LED Life (hr) | 49,930 |
| Dimensions (L x H x D) | 30 in x 2.69 in x 4.29 in |
| Weight (lbs.) | 11.45 |
| Wiring Harness Included | No |
| Mounting Hardware Included | Yes |
| Configuration | Arc; Driving/Combo; Clear |
Is a wiring harness included?
No, a wiring harness is not included. This bar does not come with a wiring harness. You will need PN:640119 (Hi-Power w/Mode Switch 2-light max wiring harness)
Is it waterproof?
Baja Designs rates it IP69K (Waterproof up to 9ft & Pressure Washable).
Is it vehicle-specific?
No. Baja Designs lists it as a universal-fit product.
What warranty does it have?
Baja Designs includes a 30-day satisfaction guarantee and a limited lifetime warranty.
