ReadyLIFT 4.5" Coil Spring Lift Kit - 2019-2024 Ram 3500 HD High Output Diesel 4WD

The ReadyLIFT 4.5" Coil Spring Lift Kit (part 49-19430) gives 2019-2024 Ram 3500 HD High Output diesel 4WD trucks a taller stance and room for 37" tires without stepping up to a 6" system. It pairs 4.5" front lift springs and 3" tapered rear blocks with four vehicle-tuned Falcon 1.1 monotube shocks.

Part number: ReadyLIFT 49-19430

Key features

• 4.5" front lift springs and 3" tapered rear lift blocks
• Four vehicle-tuned Falcon 1.1 monotube shocks
• Radius arm drop brackets, front track bar bracket, dropped pitman arm and sway bar relocation brackets correct geometry
• Bump stop components help prevent shock over-compression
• Driveline Indexing System: CNC-machined 6061-T6 billet aluminum clocking ring repositions the transfer case for better front driveline angles
• Heavy-duty transmission crossmember

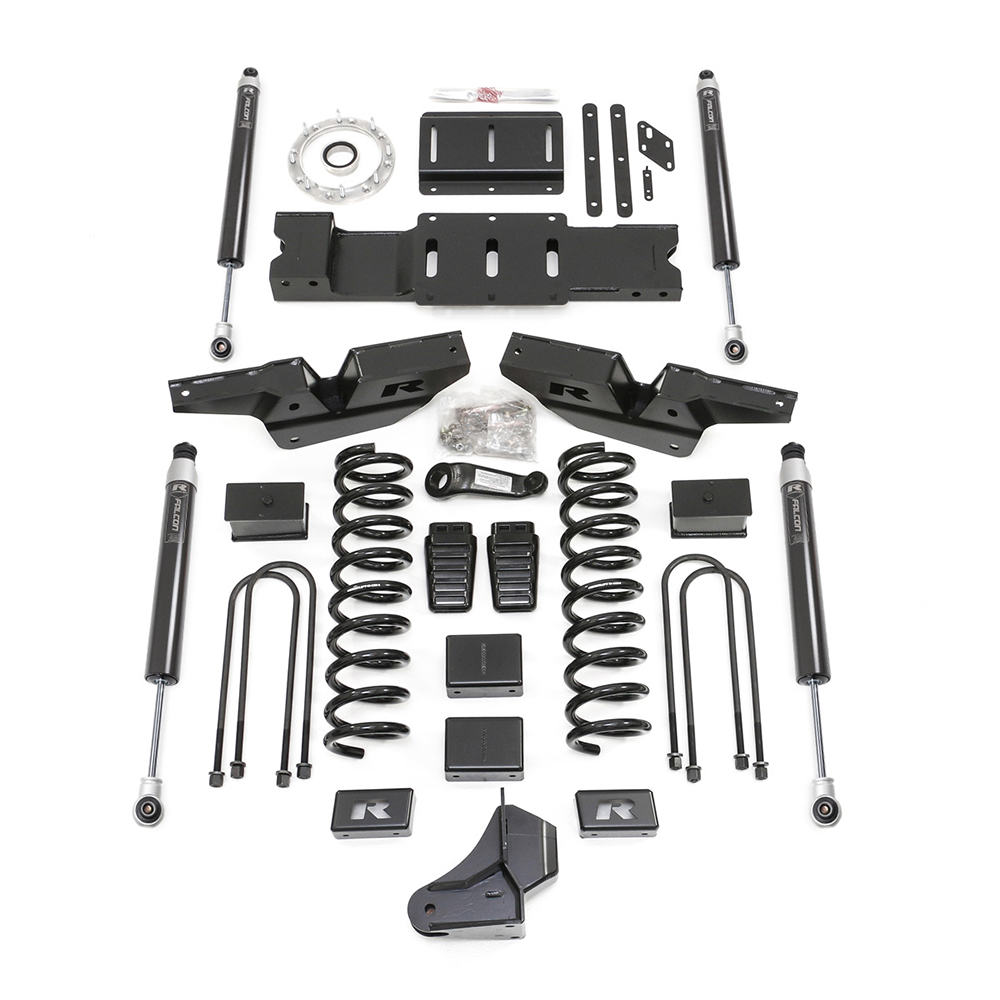

What's included

• 4.5" front lift springs
• 3" fabricated rear blocks and U-bolts
• Falcon front and rear shocks
• Driver and passenger radius arm drops and front track bar bracket
• Sway bar drop brackets, replacement front bump stops and rear bump stop extensions
• Drop pitman arm
• Transmission crossmember, mounting plate, brackets and mount spacer
• 8-bolt clocking ring, transfer case spacer and extension housing seal
• Brake line brackets, e-brake extension and hardware pack

Fitment

• 2019-2024 Ram 3500 HD 4WD with the High Output diesel only
• Not for standard-output diesel, HEMI gasoline, dually, or Classic models
• Not compatible with factory air suspension or automatic rear leveling, including factory helper air bags
• Single cab not validated for fitment and drivability by ReadyLIFT
• ReadyLIFT points to RAM TSB 03-003-23 about clicking or ratcheting noises when turning in 4WD

Tire fitment

• 37x12.50 maximum tire on a 20x9 wheel with -18 offset
• ReadyLIFT bases its wheel and tire recommendations on specific wheel and tire brands, and sizes vary by manufacturer, so test-fit every wheel and tire combination before installation.

Install notes

• Estimated installation time: 12 hours +/- 1 hour (excludes alignment and wheel/tire assembly).
• Read the instructions completely before starting. ReadyLIFT recommends installation by a certified mechanic.

Questions about fitment? Email [email protected] with your year, make, model, and trim before ordering.
