ReadyLIFT 6" Lift Kit with Falcon 1.1 Shocks & Driveline Indexing System - 2019-2024 Ram 2500 Standard Output Diesel

The ReadyLIFT 6" Lift Kit (part 49-19610) is a 4-corner coil spring lift for 2019-2024 Ram 2500 HD trucks with the Standard Output Cummins turbodiesel and 68RFE transmission. It includes Falcon 1.1 Monotube shocks and ReadyLIFT's Driveline Indexing System, which re-clocks the transfer case to help prevent post-lift driveline vibration.

Part number: ReadyLIFT 49-19610

Key features

• 6" front lift springs with rear coil spring spacers for a lifted stance
• Driveline Indexing System: CNC-machined 6061-T6 billet aluminum transfer case clocking ring and a heavy-duty steel transmission crossmember
• Heavy-duty radius arm drop brackets and fabricated steel front and rear track bar brackets
• Forged dropped pitman arm, front and rear sway bar relocation brackets, and bump stop extensions
• Four Falcon 1.1 Monotube shocks tuned for the Ram 2500 HD
• Maintains factory turning radius with the recommended wheel and tire size, plus factory geometry and articulation, per ReadyLIFT

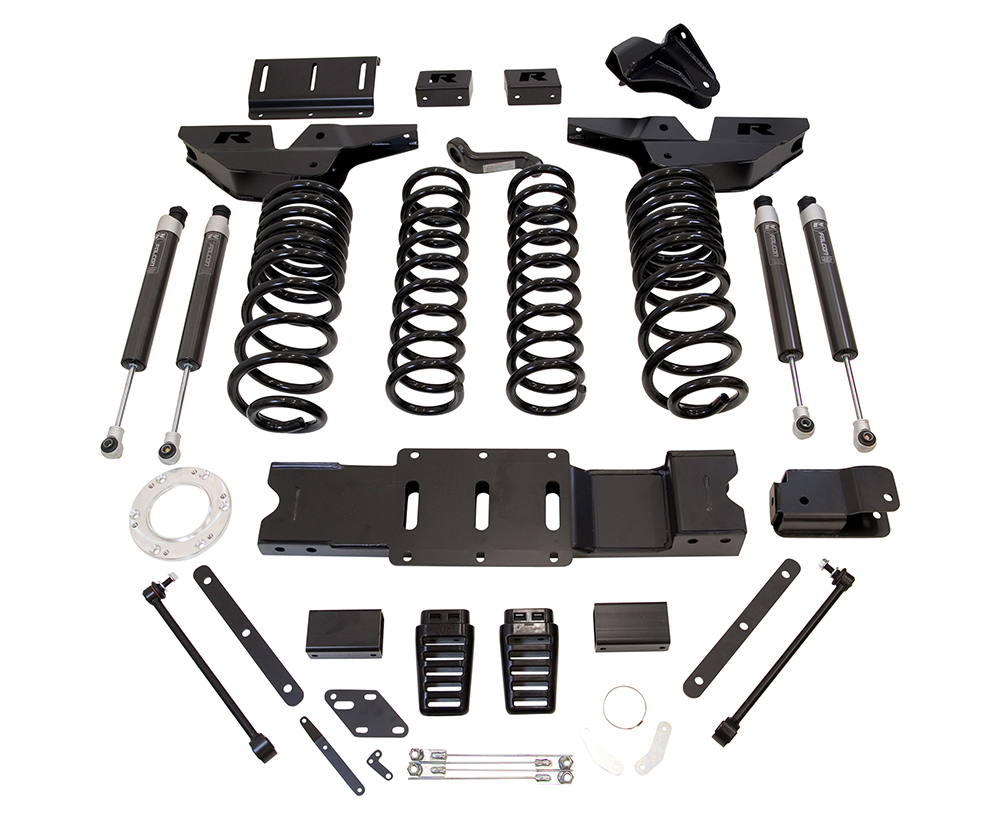

What's included

• 6" front lift springs
• 4" rear lift coil spring spacers
• Falcon front and rear shocks
• Radius arm drop brackets and nut plates
• Front and rear track bar brackets
• Driver and passenger sway bar drop brackets and 14.25" sway bar end links
• 5" replacement front bump stops and rear bump stop extensions
• Replacement drop pitman arm
• Transmission crossmember, mounting plate, mount spacer, connector bracket, and harness bracket
• 6-bolt clocking ring
• Front and rear brake line brackets, pinch clamp, and hardware pack

Fitment

• 2019-2024 Ram 2500 HD with the Standard Output Cummins diesel and 68RFE transmission only
• Not for gasoline-engine trucks
• Single cab configuration has not been validated by ReadyLIFT
• Not compatible with factory air suspension or the Auto Level system (factory helper bags)
• ReadyLIFT references Ram TSB 03-003-23 (ratchet-type clicking in 4WD while turning)
• ReadyLIFT's recommended driveline for the 68RFE: Adams Drive Shaft ASDRAM-1350F-5GEN (not included)

Tire fitment

• Maximum fitment: 37x12.50 tire on a 9.5-10" wide wheel with -18 offset
• ReadyLIFT bases its wheel and tire recommendations on specific wheel and tire brands, and sizes vary by manufacturer, so test-fit every wheel and tire combination before installation.

Install notes

• Estimated installation time: 12 hours +/- 1 hour (excludes alignment and wheel/tire assembly).
• Read the instructions completely before starting. ReadyLIFT recommends installation by a certified mechanic.

Questions about fitment? Email [email protected] with your year, make, model, and trim before ordering.
