RSI Canopy Full Size Pickup Load Bar Kit / 1345mm (W)
RSI Canopy Full Size Pickup Load Bar Kit / 1345mm (W)
10 in stock
Couldn't load pickup availability

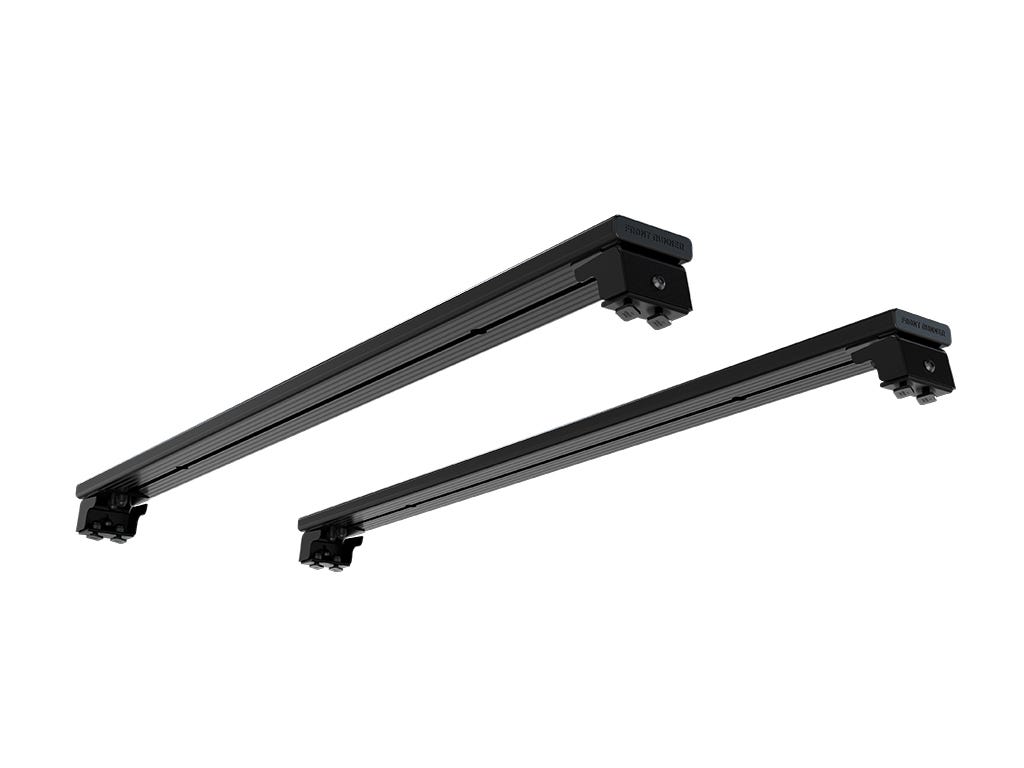

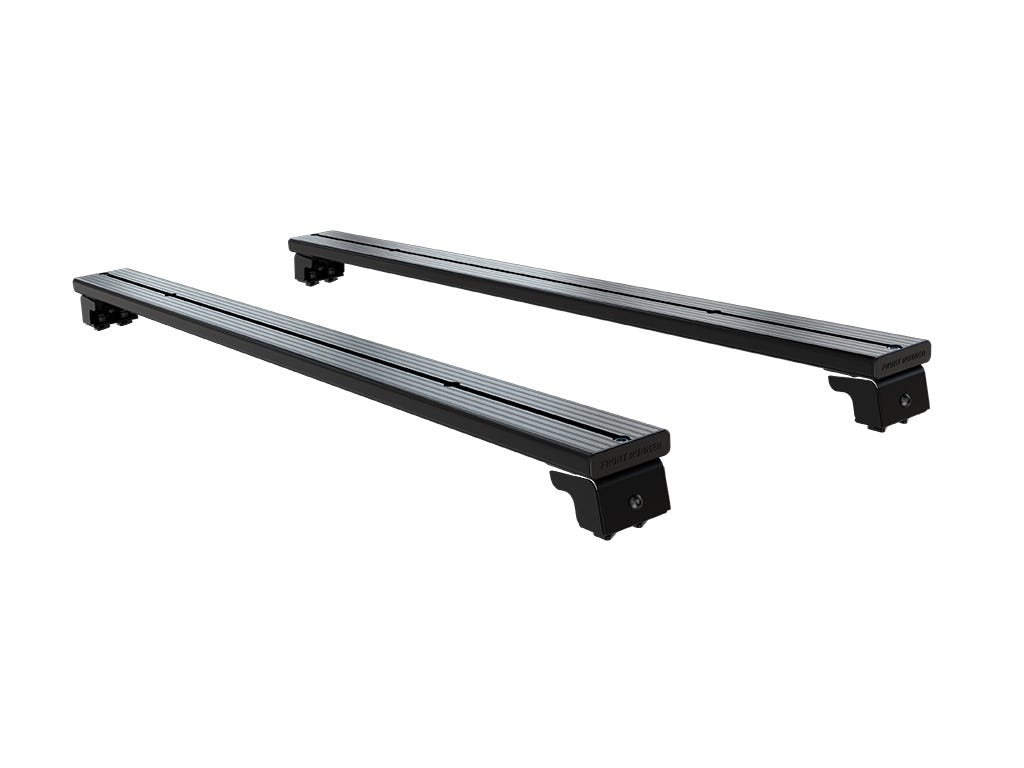

RSI Canopy Full Size Pickup Load Bar Kit / 1345mm (W)
- Depth (mm): 155
- Length (mm): 115
- Width (mm): 1450
- Depth (in): 6.1
- Length (in): 4.5
- Width (in): 57.1
- Weight (kg): 5
- Weight (lb): 11
- Narration: Massively increase the cargo-carrying capacity of your RSI Canopy by installing this durable Load Bar Kit on top of it. Load bars attach to the canopy using the supplied feet and they have the same T-slots as slats as a Front Runner roof rack, so you can fit rack accessories to it.
- Specification: KRCA016 - RSI Canopy Full Size Pickup Load Bar Kit / 1345mm Consisting of: 2x FASS024 - Foot Set / 50mm - 60mm1x LBSK015 - Roof Load Bar Pair 1345mm(W)2x RRAC921 - Canopy Rack Kit Installation SetMaterial Used:Black epoxy powder - coated T6 aluminiumApproximate Installed Weight: 5.18kg (11.42lbs) The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width: 115mm (5'')Length: 1450mm (57'')Height: 155mm (6'')Shipping Weight:Weight: 5kg (11lbs)
Includes all hardware and components needed to fit load bars on your Full Pickup when fitted with a RSI Canopy, including four (4) mounting feet, two (2) 1345mm load bars, an installation kit and fitting instructions.
These load bars are mounted to your RSI Canopy via a set of supplied mounted feet.
Uses the same strong, corrosion-free aluminum slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The load bars and mounting system can be used in the future as components to build a complete Front Runner roof rack.
Made from steel and durable, weather-resistant black powder-coated aluminum.
Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.
