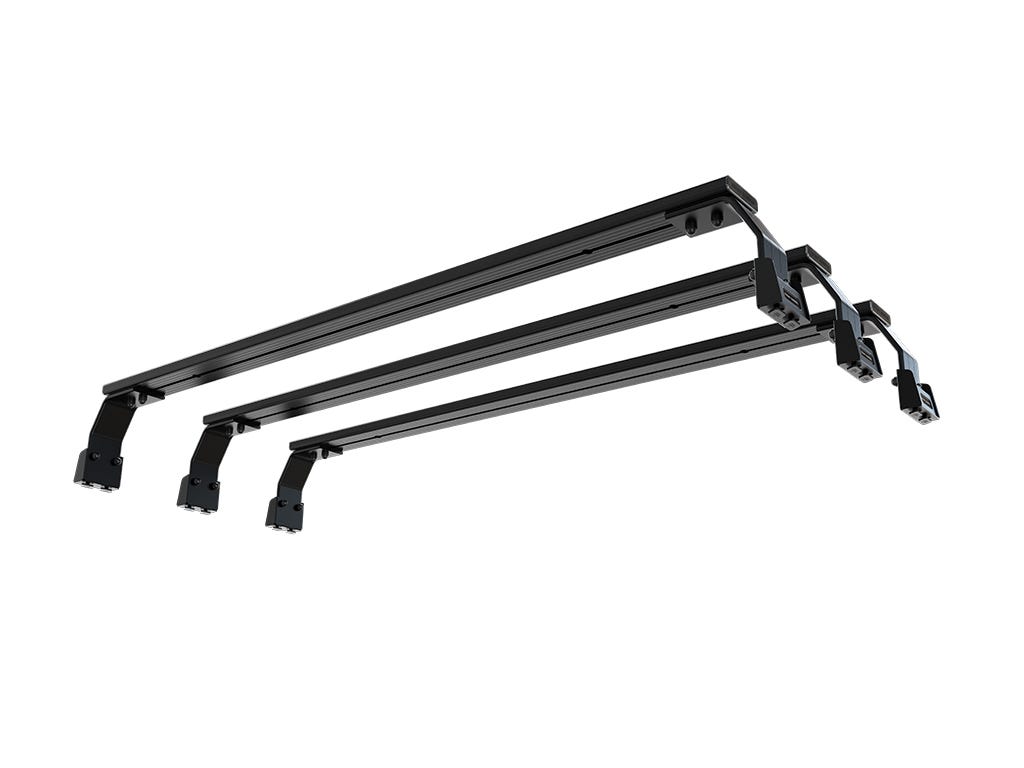

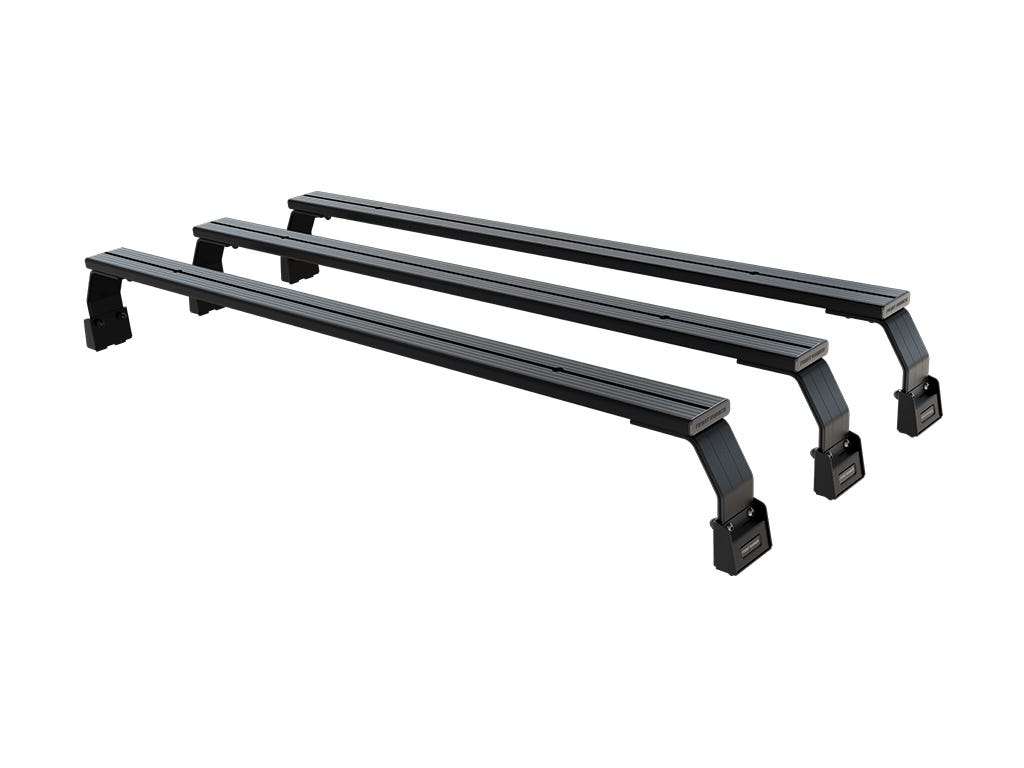

Ford Ranger ReTrax XR 6in (2019-2022) Triple Load Bar Kit
Double up the loading space on your Ford Ranger with this Slimline II Load Bed Rack Kit. The Slimline II’s lightweight, modular construction gives you the freedom to customize your rig with over 55 accessories so you can haul all your adventure gear and toys. This particular kit installs into the existing ReTrax XR rails of your Ford Ranger.
Specification:
KRFR003 - Ford Ranger ReTrax XR 6`` (2019-2022) Triple Load Bar Kit- by Front Runner
Consisting of: 3x LASS028 - Pick-Up Roll Top Leg Mount1x LBSK020 - Roof Load Bar Set 1425mm(W)
Material Used:Black epoxy powder - coated T6 aluminium
Approximate Installed Weight: 8kg (17.64lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8``) to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8``) to the height of the Legs listed above to determine the height of the rack from your vehicle`s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8``) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 160mm (6``)
Length: 1560mm (61``)
Height: 230mm (9``)
Shipping Weight:Weight: 12kg (26lbs)

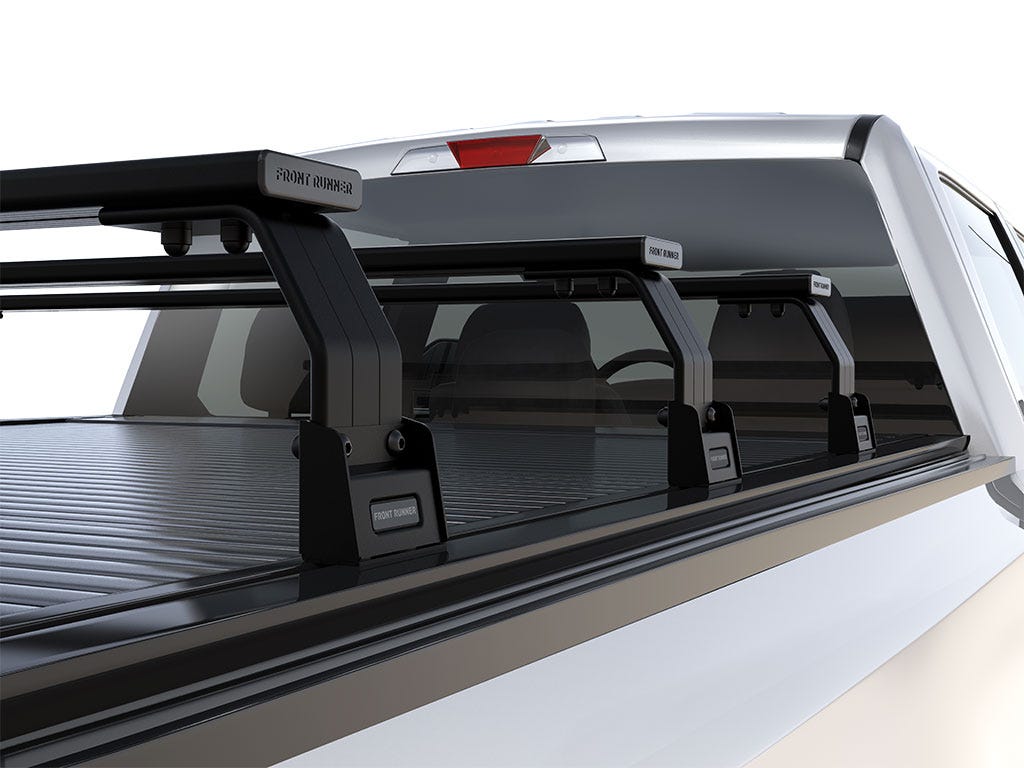

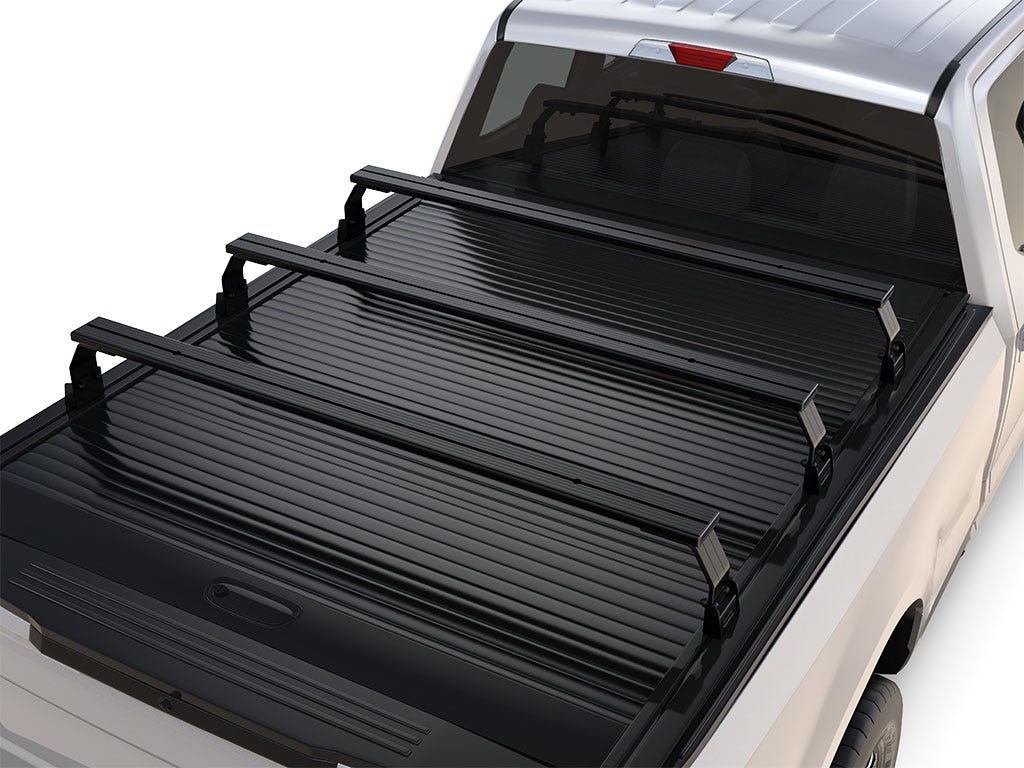

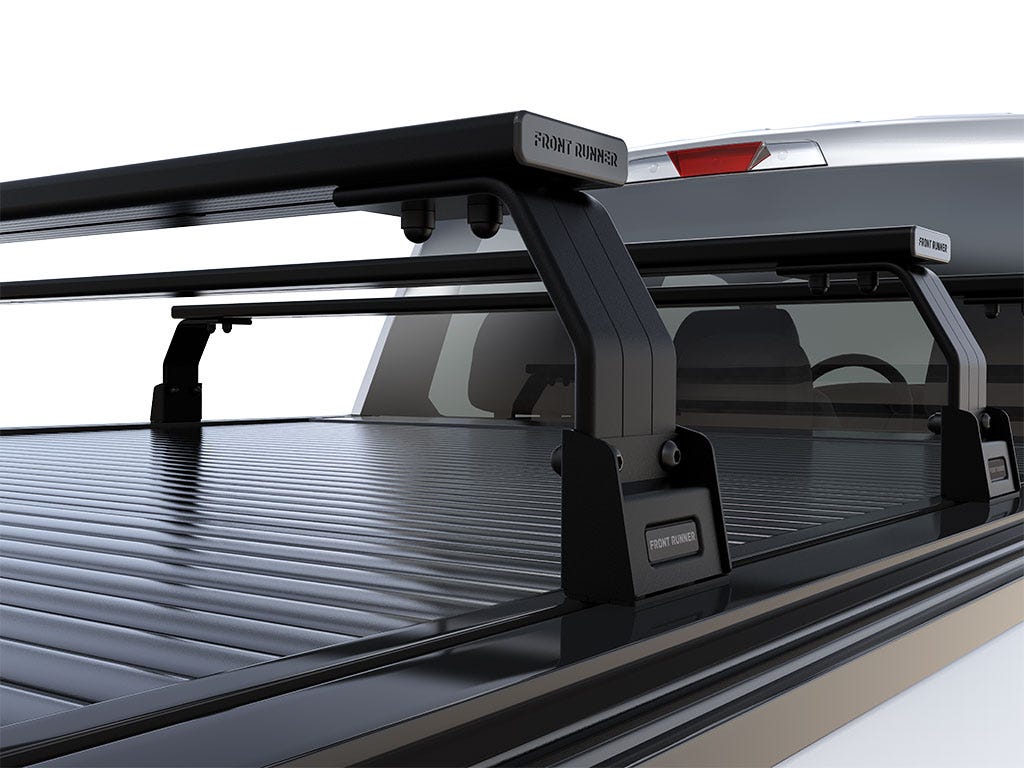

A set of Pickup Bed Load Bars used to transport gear over the bed of your Ford Ranger w/ReTrax XR rails. This low profile solution includes
