Land Rover Discovery 1AND2 Slimline II Roof Rack Kit / Tall

Land Rover Discovery 1AND2 Slimline II Roof Rack Kit / Tall

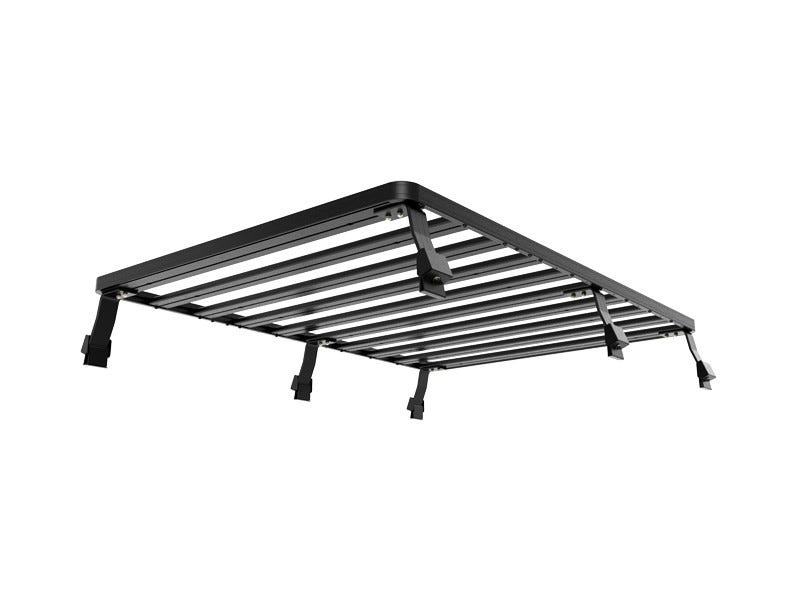

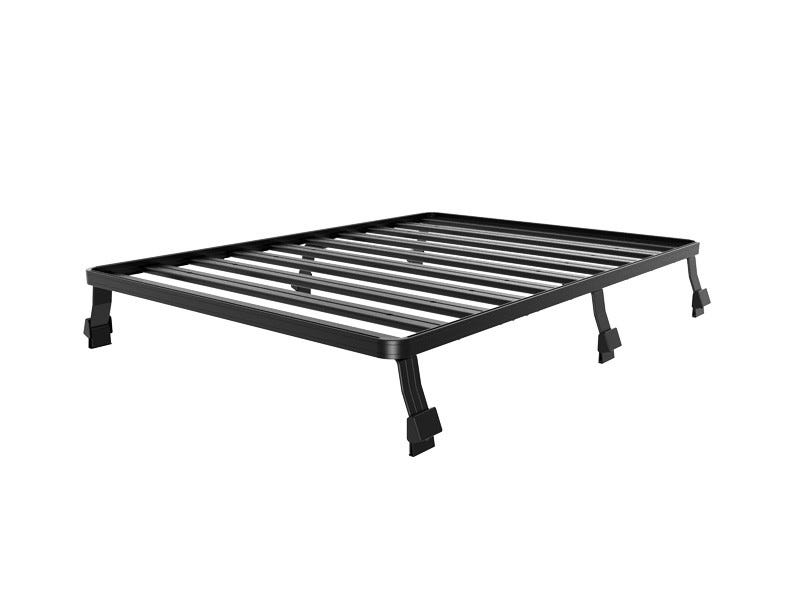

This 1964mm/77.3`` long, full size Slimline II cargo carrying roof rack kit for the Land Rover Discovery series 1 2 contains Slimline II Tray and Wind Deflector, as well as 6 Gutter Mount legs for mounting the Tray to the vehicle. This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack. It installs easily with no drilling required.

Specification:

KRLDT12L - Land Rover Discovery 1/2 Slimline II Roof Rack Kit - by Front Runner

Consisting of:

1. 3 x LASS110 - No 10 Leg 280mm (Pair) - by Front Runner
2. 1 x RRSTJ10 - Slimline II Tray - 1425mm(W) X 1964mm(L) - by Front Runner

Material used: Black epoxy powder-coated T6 aluminium High strength steel

Approximate Installed Weight: 33kg (73lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2``) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2``) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width: 450mm (18)

Length: 1615mm (64)

Height: 140mm (6)

Shipping Weight
