Pickup Truck Load Bed Load Bar Kit / 1475mm(W)

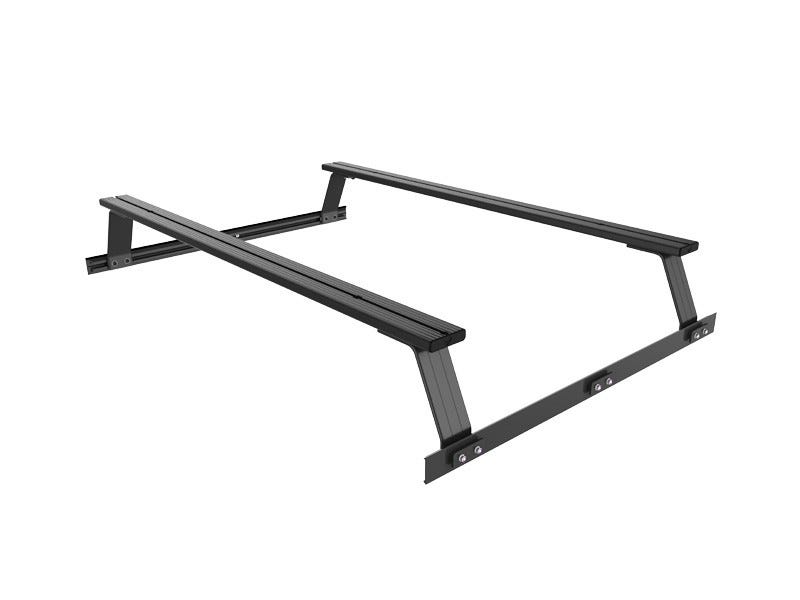

The Front Runner pickup truck load bed load bar kit puts two 1475 mm aluminium load bars over your truck bed when you don't need a full rack. The bars sit on load bed legs that bolt onto bed-mounted tracks, so the bed still carries cargo and the tailgate works as usual.

Part number: KRLB006 (Front Runner / Dometic)

Key specs

• Load bars: 2 x 1475 mm (58.1 in) wide (pair)
• Mounting: 4 universal load bed legs (2 pairs, LASS026) on 1000 mm (39.4 in) pickup load bed tracks
• Load bar height: 22 mm (7/8 in); add the leg height for overall height
• T-slots on the tops and bottoms of the slats take standard 8 mm bolts
• Material: black epoxy powder-coated T6 aluminium and high-strength steel
• Approximate installed weight: 9 kg (19.8 lb)

What's in the box

• 2 x Universal Load Bed Leg / Tall (Pair) (LASS026)
• 1 x Roof Load Bar Pair 1475mm(W) (LBSK017)
• 1 x Pickup Load Bed Tracks / 1000mm(L) (TRBU001)
• Installation guide

Good to know

• Load limit: no more than 25 kg (55 lb) per load bar, spread evenly. Bigger loads may need extra load bars.
• Can carry a Front Runner roof top tent or other accessories where a low-profile, smaller footprint is preferred.
• The load bars and legs can be reused later as parts of a full Front Runner rack.

Fits: pickup trucks with a load bed that suits the 1475 mm load bar width. Check your load bed width before ordering.
