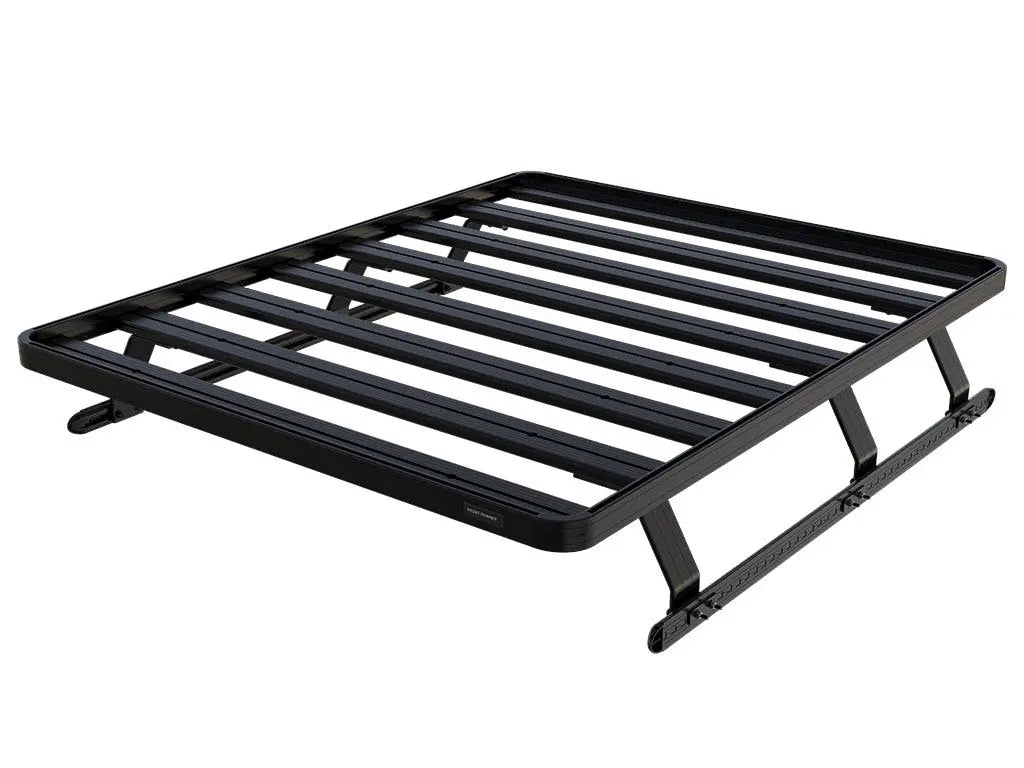

Pickup Truck Slimline II Load Bed Rack Kit / 1345(W) x 1560(L)

Pickup Truck Slimline II Load Bed Rack Kit / 1345(W) x 1560(L)

• Depth (mm): 140
• Length (mm): 450
• Width (mm): 1730
• Depth (in): 5.511814
• Length (in): 17.716545
• Width (in): 68.11
• Weight (kg): 31.5
• Weight (lb): 69.5
• Narration: This Pickup Load Bed kit contains the Slimline II tray (1345mm x 1560mm), (2) Load Bed Tracks and (6) Load Bed Legs that fit into the Tracks.This rack fits a load bed width of 1405mm - 1494mm (55-58'') and length of 1551mm - 1803mm (61-71'').This kit creates a full size rack that is fitted above a pickup truck load bed. Drilling may be required for installation.
• Specification: KRLB010T - Pick-Up Truck Slimline II Load Bed Rack Kit / 1345(W) x 1560(L) - by Front Runner
  Consisting of:
  6 x LASS026 - Universal Load Bed Leg 188mm (Pair) - by Front Runner 1 x RRSTG08 - Slimline II Tray - 1345mm(W) X 1560mm(L) - by Front Runner 1 x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L) - by Front Runner

  Material used:
  Black epoxy powder-coated T6 aluminium High strength steel
  Approximate Installed Weight 27kg (60lbs)

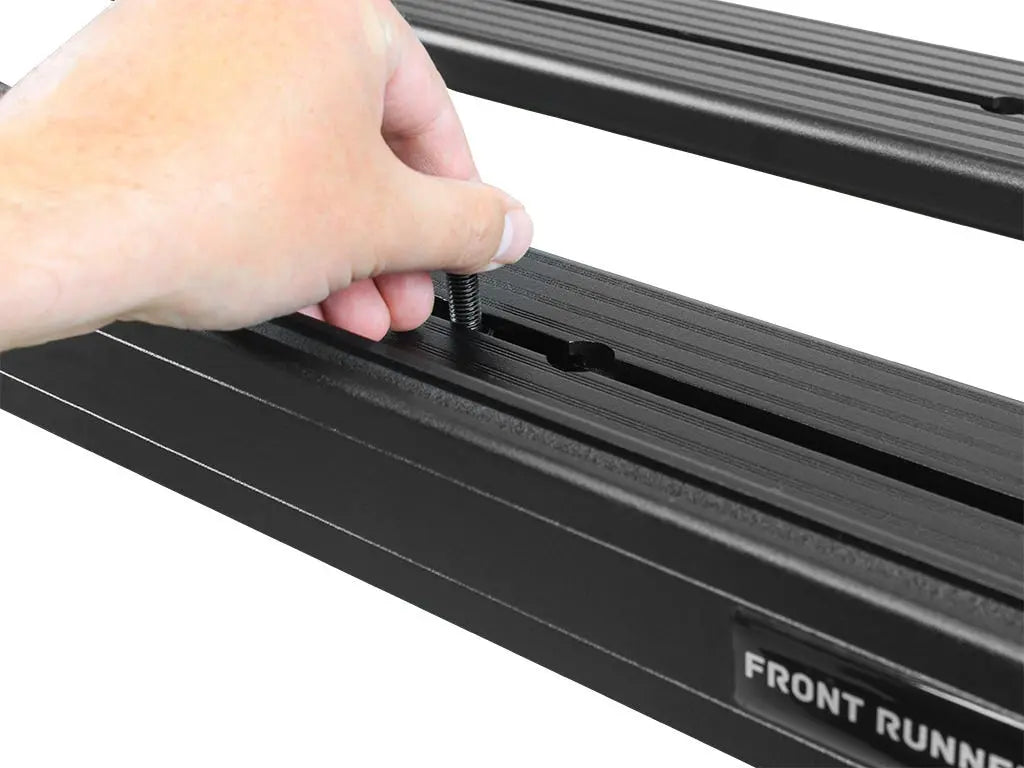

  The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
  To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

  Shipping Dimensions:
  Width 450mm (18'')Length 1615mm (64'')Height 140mm (6'')

  Shipping Weight:
  Weight 31.6kg (69.5lbs)

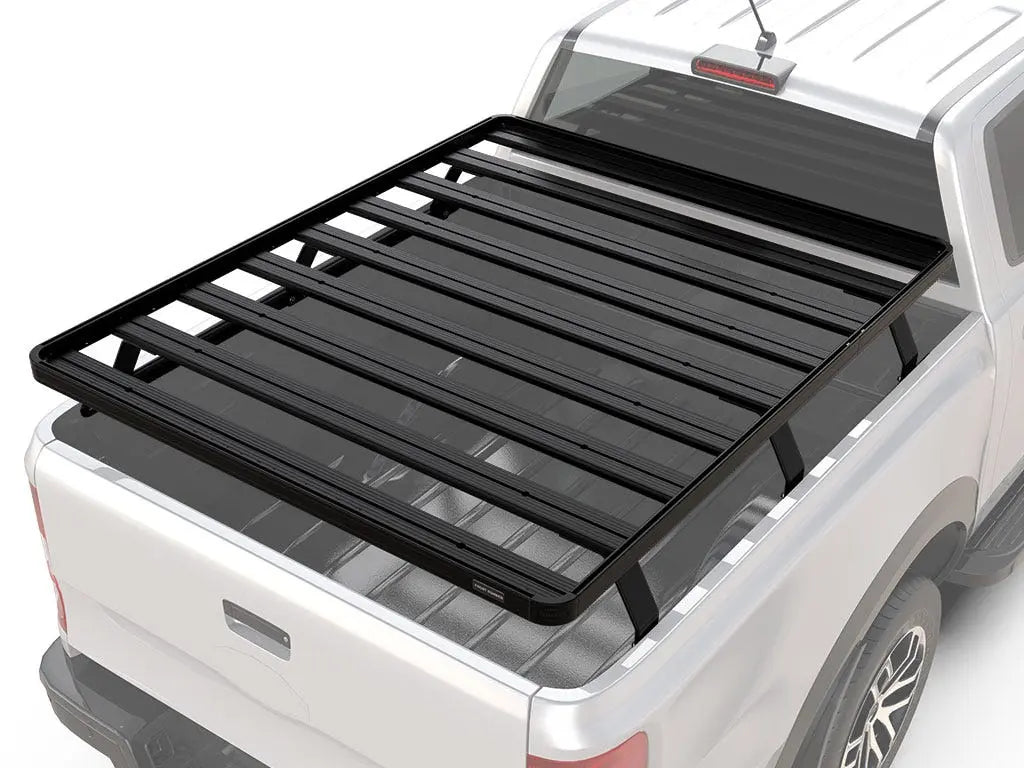

This Pickup Load Bed kit contains the Slimline II tray (1345mm x 1560mm), (2) Load Bed Tracks and (6) Load Bed Legs that fit into the Tracks.This rack fits a load bed width of 1405mm - 1494mm (55-58'') and length of 1551mm - 1803mm (61-71'').This kit creates a full size rack that is fitted above a pickup truck load bed. Drilling may be required for installation.
This kit creates a full size rack that is fitted above a pick-up truck load bed.For further information on installation, please see the fitment instructions in the INSTALL tab.
