Ram 1500 5.7' Crew Cab (2009-Current) Triple Load Bar Kit

Ram 1500 5.7` Crew Cab (2009-Current) Triple Load Bar Kit

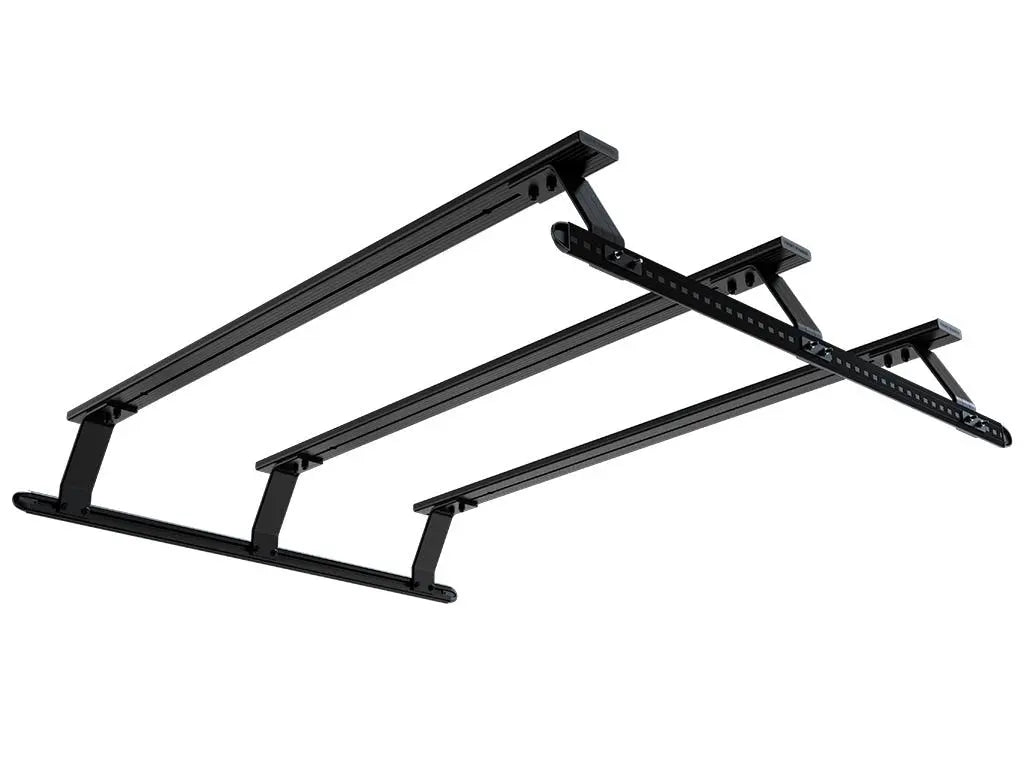

Transport all your adventure gear safely over the bed of your Ram 1500 with these three strong, sleek, low-profile Pickup Bed Load Bars. Made from black epoxy powder-coated T6 aluminum and high strength steel, this kit is designed to withstand the toughest off-road conditions. The load bars are mounted via Pickup Roll Top Load Mounts that bolt directly onto a set of Load Bed Tracks, allowing for gear to be mounted above the pickup’s load bed while still retaining its load-carrying ability.

Specifications:

1. Depth (mm): 130
2. Length (mm): 380
3. Width (mm): 1595
4. Depth (in): 5.1
5. Length (in): 15
6. Width (in): 62.8
7. Weight (kg): 15.6
8. Weight (lb): 34.4

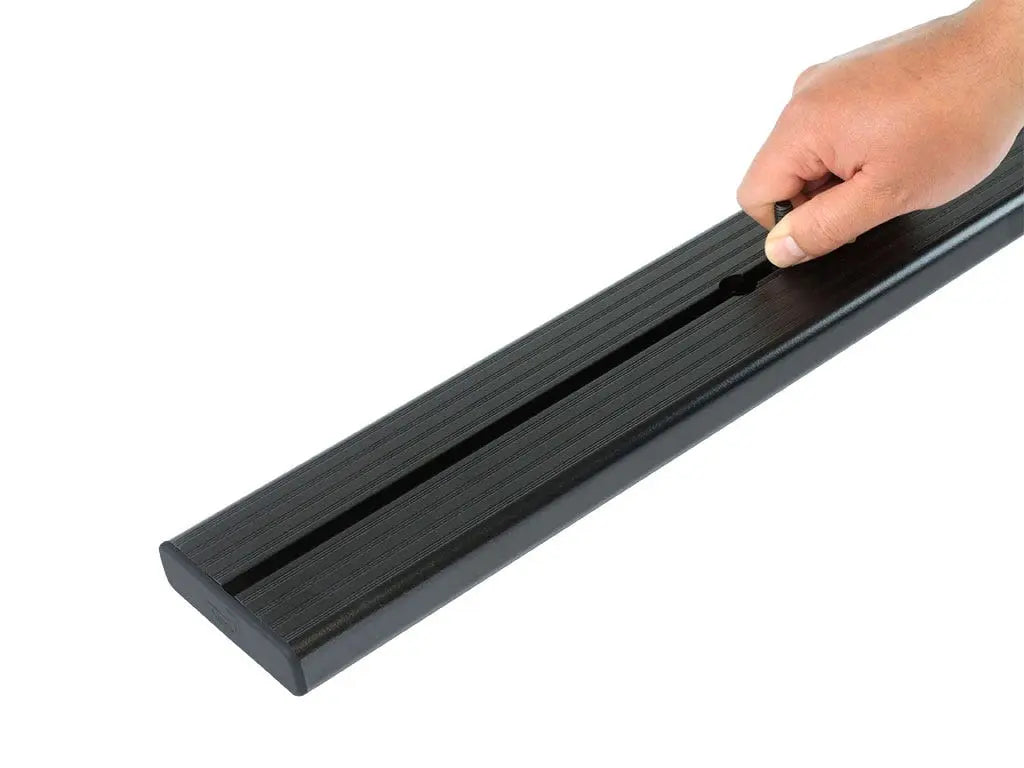

Consisting of 3 x LASS026 - Universal Load Bed Leg / Tall (Pair), 1 x LBSK019 - Roof Load Bar Set 1575mm(W), and 1 x TRBU002 - Bakkie Load Bed Tracks / 1200mm(L), this kit is specifically designed for the Ram 1500 5.7` Crew Cab (2009-Current). The load bars are made from the same strong, corrosion-free aluminum slats found in Front Runner Racks and feature sliding nut t-slots for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

Approximate Installed Weight:

15.9kg (35.0lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts. To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2``) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
