Toyota Tacoma ReTrax XR (2007-Current) Double Load Bar Kit

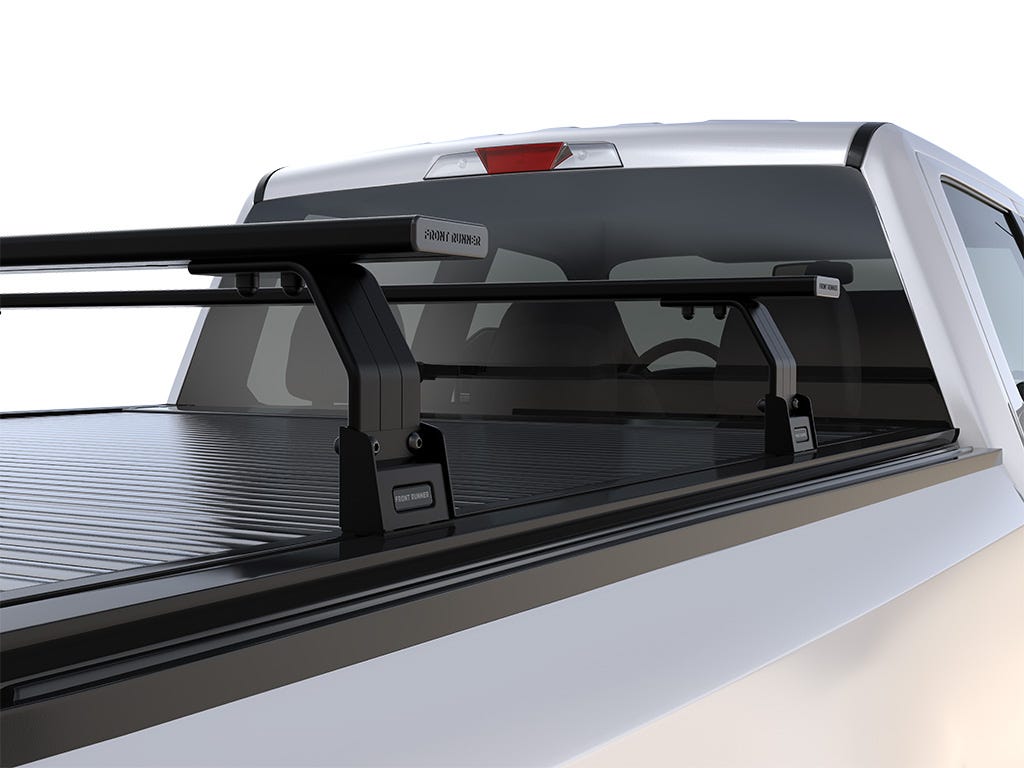

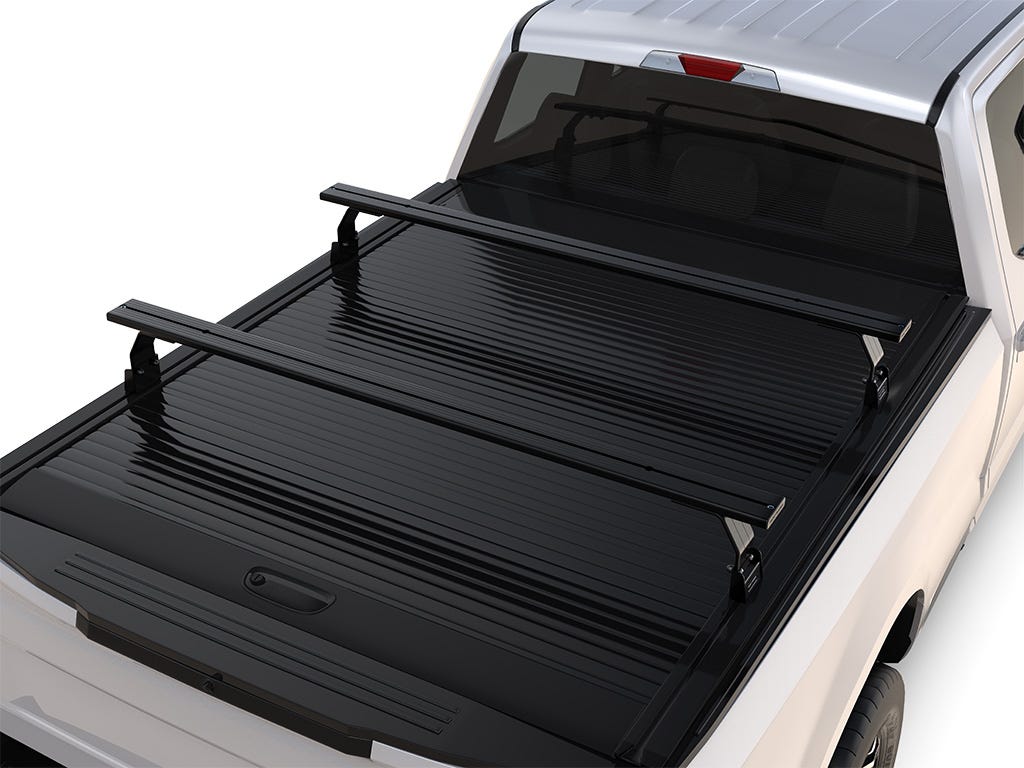

This dual set of Load Bars allows you to transport gear and attach Front Runner accessories above the bed of your Toyota Tacoma when there’s no need for a full-sized bed rack. This low-profile solution fits into the existing ReTrax XR rails, and doesn’t compromise any of the load bed’s regular load-carrying ability, while the drop-down door functions as usual.
Specification:
KRTT972 - Toyota Tacoma ReTrax XR 56 (2007-Current) Double Load Bar Kit - by Front Runner

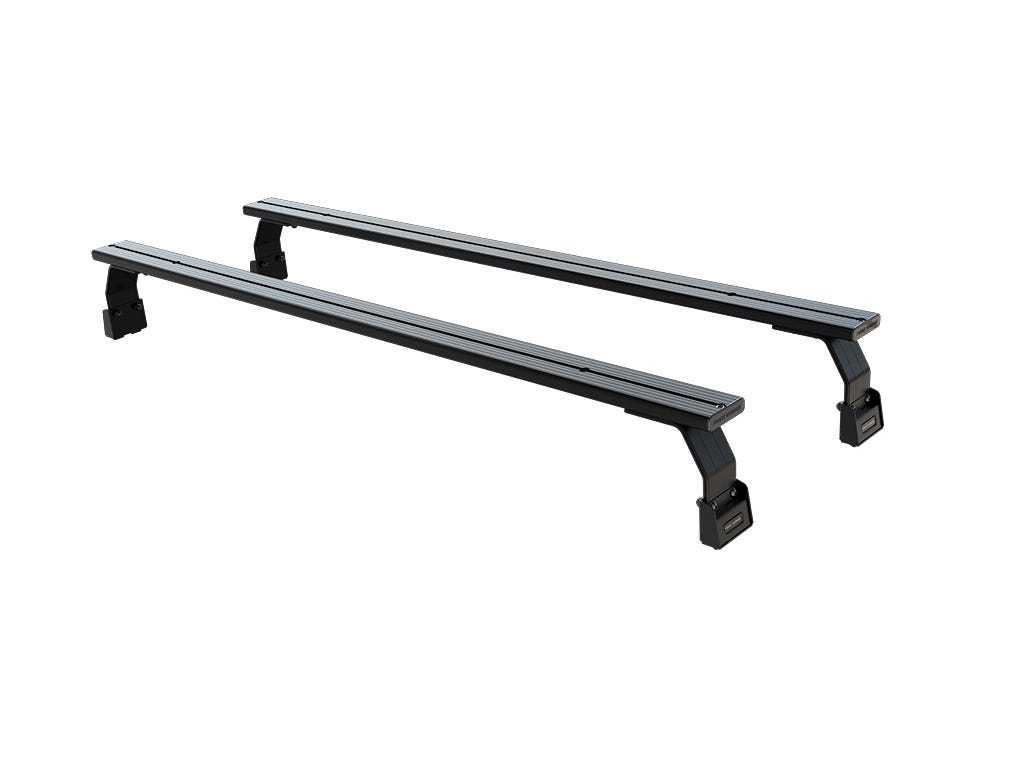

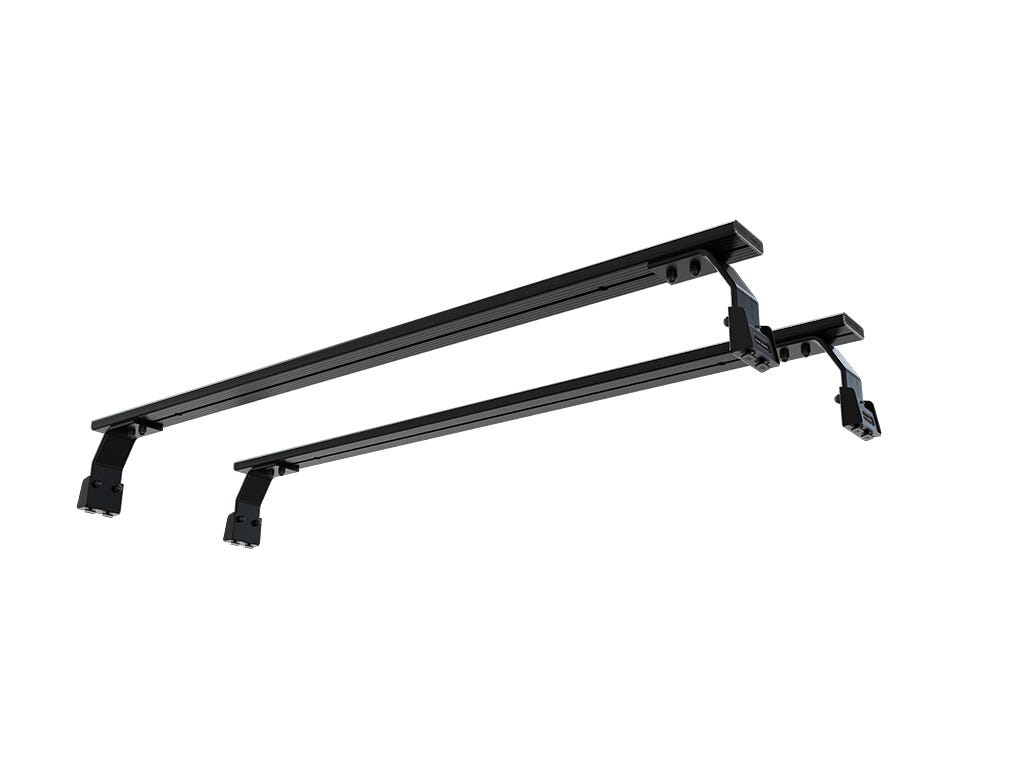

Consisting of: 2x LASS028 - Pick-Up Roll Top Leg Mount1x LBSK018 - Roof Load Bar Pair 1575mm(W)
Material Used: Black epoxy powder-coated T6 aluminium
Approximate Installed Weight: 6.8kg (14.99lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8') to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicle's roof.
Shipping Dimensions:
Width: 160mm (6')
Length: 1690mm (67')
Height: 155mm (6')
Shipping Weight: Weight: 9kg (20lbs)
A set of Pickup Bed Load Bars used to transport gear over the bed of your Toyota Tacoma when fitted with a ReTrax XR rails. This low profile solution includes
