Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / 1425mm(W) X 1560mm(L)

Truck Canopy or Trailer with OEM Track Slimline II Rack Kit / 1425mm(W) X 1560mm(L)

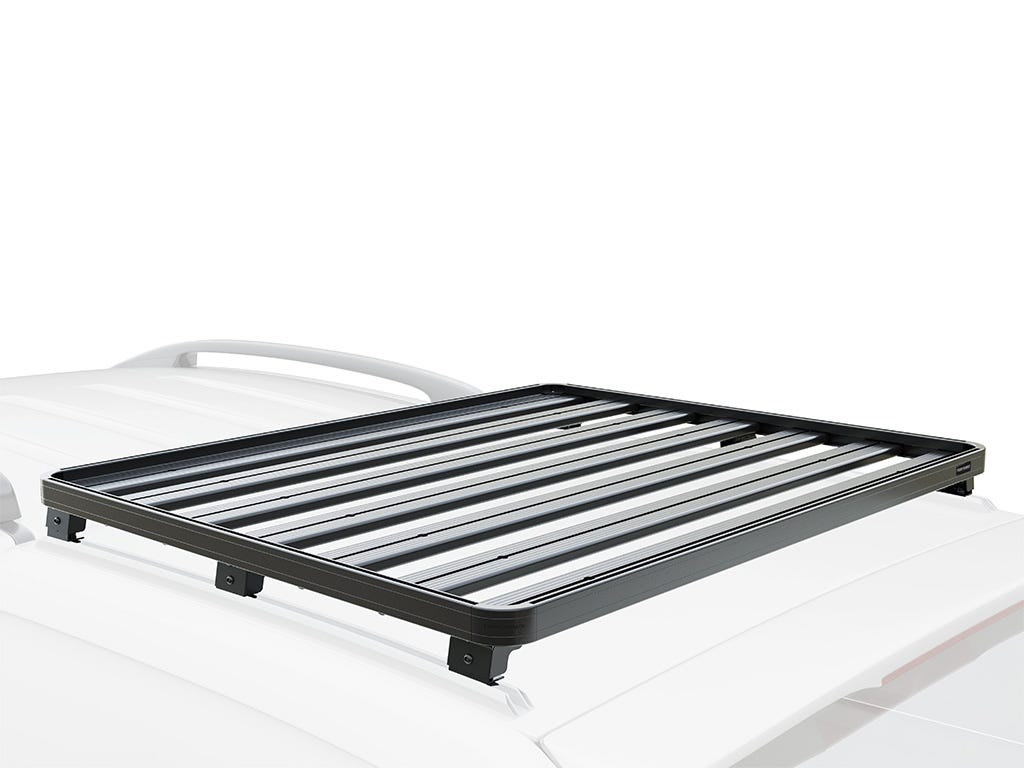

Enhance your vehicle's utility with the Truck Canopy or Trailer with OEM Track Slimline II Rack Kit. Designed to fit canopies, camper shells, or trailers with roof sizes up to 1425mm (W) x 1560mm (L), this rack kit is the perfect blend of strength and functionality.

Key Features:

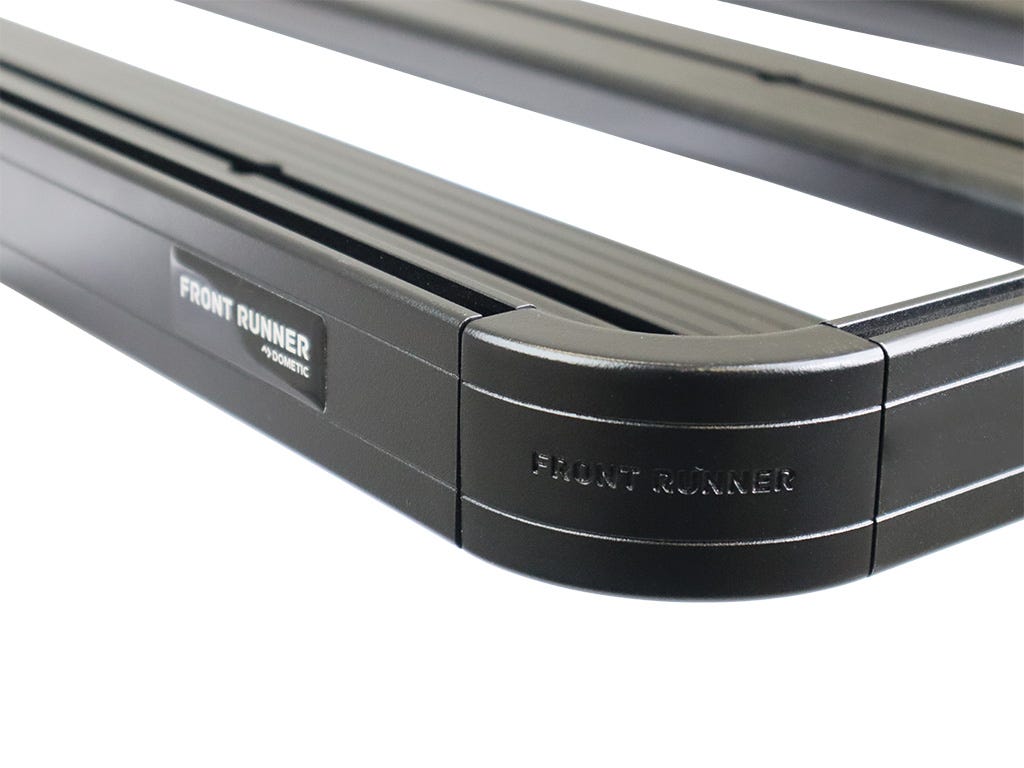

• Robust Construction: Made from high-strength steel and black epoxy powder-coated T6 aluminum for durability.

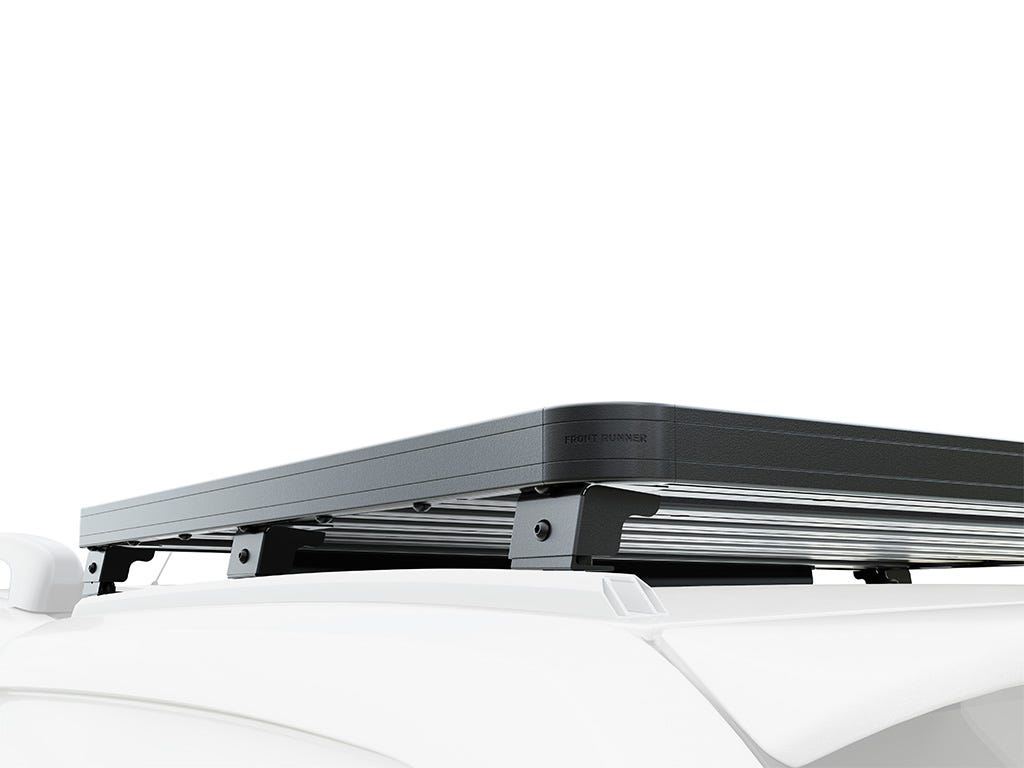

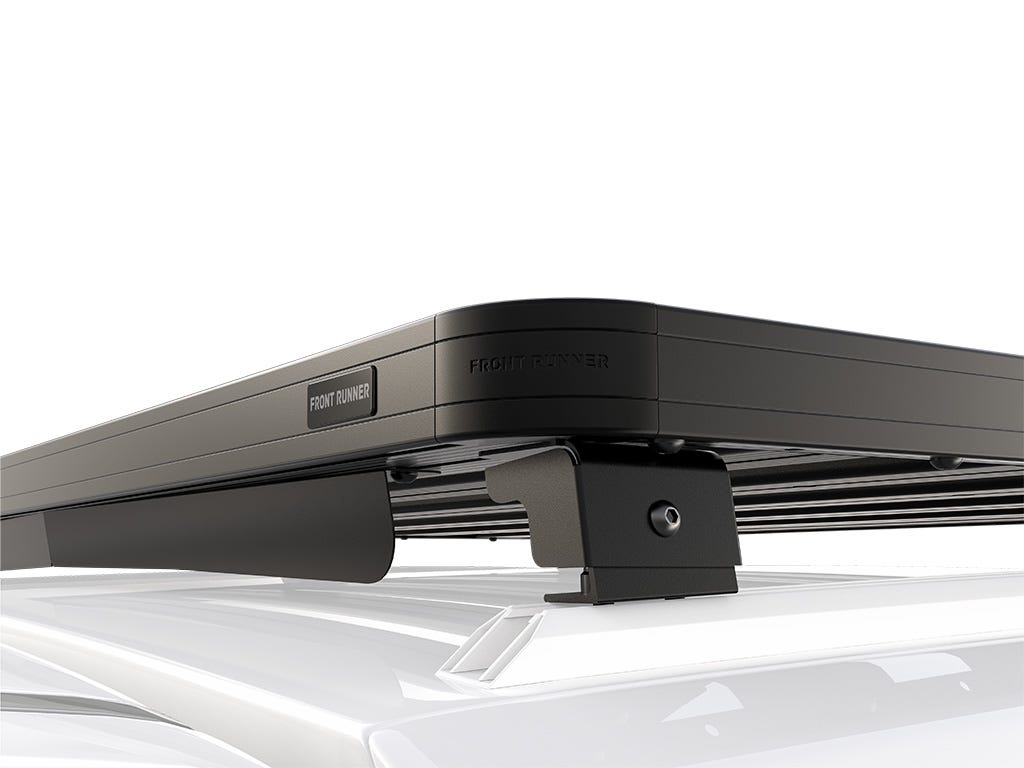

• Easy Installation: Mounts directly onto OEM/Factory installed tracks, with all components included for a hassle-free setup.
• Versatile Fit: Suitable for rooftop sizes up to 1425mm (W) x 1560mm (L), accommodating various truck canopies and trailers.
• Weight Capacity: An approximate installed weight of only 25kg (54lbs) allows for a strong yet lightweight solution.
• Customizable Height: Easily adjust the height of your rack by adding the height of the Slimline II Tray (50mm/2”) to the height of the existing components.

Specifications:

• Dimensions: 1425mm (W) x 1560mm (L) x 50mm (H)
• Weight: 29.6kg (65.3 lbs)
• Material: Black epoxy powder-coated T6 aluminum and high-strength steel

Installation Requirements:

For optimal performance, ensure your OEM/Factory supplied track meets the following specifications:

• Slot base width: min 20mm / max 25mm
• Slot base height: min 6.5mm / max 10mm
• Slot opening width: min 8.5mm / max 10.5mm
• Slot opening height: min 2mm / max 5mm

Load Ratings:

It is recommended to check with your canopy manufacturer regarding the load ratings for your specific canopy and track to ensure safety and efficiency.

Warranty:

All Front Runner Racks are backed by a Limited Lifetime Warranty, providing you peace of mind with your purchase.

Transform your truck or trailer into a versatile transport solution with the Truck Canopy or Trailer with OEM Track Slimline II Rack Kit. Upgrade your outdoor adventures today!
